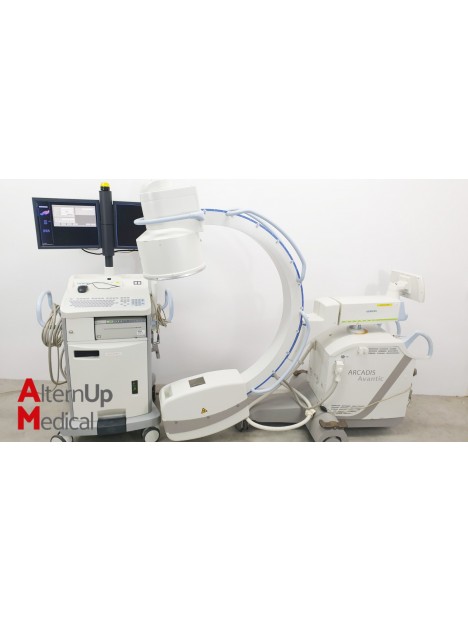

Siemens Arcadis Avantic C-Arm
ARCAVAN
Second Hand
€25,000.00
Tax excluded
Available

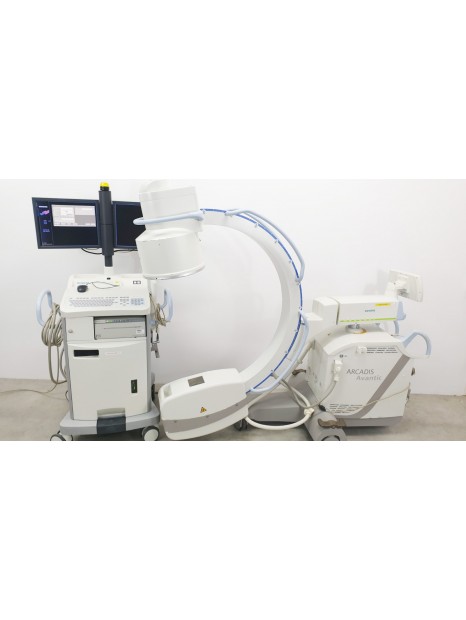

Siemens Arcadis Avantic C-Arm
From image quality to operability, from versatility to efficiency, the innovative features of ARCADIS Avantic aim to set new standards - with outstanding features that make excellent imaging a breeze and an overall ergonomic concept that will redefine your clinical workflow in many practice areas.
Worldwide Delivery
After Sales Service Guaranteed
Secured Payment
Siemens Arcadis Avantic C-Arm
ARCADIS takes you to a whole new level of clinical excellence.
From image quality to operability, from versatility to efficiency, the innovative features of ARCADIS Avantic aim to set new standards - with outstanding features that make excellent imaging a breeze and an overall ergonomic concept that will redefine your clinical workflow in many practice areas.
ARCADIS Avantic has large power reserves with a 25 kW generator, high tube currents up to 250 mA and high endurance with a heat capacity of 2.57 MHU (Mega Heat Units).
Powerful performance
- Accurate imaging with a wider field of view
- Easier operation
- Improved clinical workflow
- Maximum flexibility in data processing
- Improved serviceability and comprehensive maintenance options
ARCAVAN
Specific References
Second Hand
Technical specifications:
C-Arm
- Orbital movement: 132° (- 42° to + 90°)
- Angulation: ± 190
- Horizontal movement: 20 cm (7.9")
- Immersion depth: 73 cm (28.7")
- Pivoting range: ± 1:0
- Vertical movement: 38 cm (15"), motorized
- Source-I.I. distance: 100 cm (39.4")
- Clearance: 78 cm (30.7")
- X-Ray Generator / Tube Unit
POWERPHOS high frequency generator
- Power output: 15 kW
- Max. Pulse output: 25 kW
- Inverter control frequency: 15 kHz to 35 kHz
- kV range: 40 kV to 125 kV
- Digital X-ray: up to 250 mA
- Fluoroscopy: 0.2 mA to 15.2 mA (max. 1000 watts)
- Power Mode: allows temporary maximum output in continuous fluoroscopy.
- Pulsed fluoroscopy: up to 67 mA
- Pulse rate: up to 8 p/s, up to 15 p/s
- DCM* (Digital Cine Mode): up to 250 mA
- Minimum pulse width: 7 ms
- Pulse frequency: up to 30 p/s
- Heat storage capacity of POWERPHOS housing: 1,900,000 J, 2,565,000 HU
Single tank with dual-focus rotary anode tube
- Focal spot rating: 0.3 / 0.5
- Rated voltage: 125 kV
- Anode heat storage capacity: 200,000 J, 270,000 HU
- Anode optical angle: 10
- Inherent filtration: ≥ 2.5 mm Al; 0.1 mm Cu
- Anode drive: up to 10,800 RPM
Collimator system
- Iris diaphragm: for concentric, radiation-free collimation.
- Semi-transparent slit diaphragm: for symmetrical, radiation-free collimation with unlimited rotation.
Operating data
- Power supply: 100 V, 110 V, 120 V, 127 V, 200 V, 230 V, 240 V (± 10%); 50/60 Hz (± 1 Hz)
- Device fuse (internal): 100 V to 127 V slow-blow fuse 20 A 200 V to 240 V slow-blow fuse 15 A
Functioning
- Temperature range: +15°C to +35°C
- Relative humidity: 15% to 75%, non-condensing
- Barometric pressure: 700 hPa to 1060 hPaM
Weight
- C-arm chassis: 347 kg (765 lbs) (without accessories)
- Cart with integrated inverter: 188 kg (415 lbs) (without accessories)
Data transfer and documentation
- Image storage: 60,000 images on 1K2 matrix hard disk
