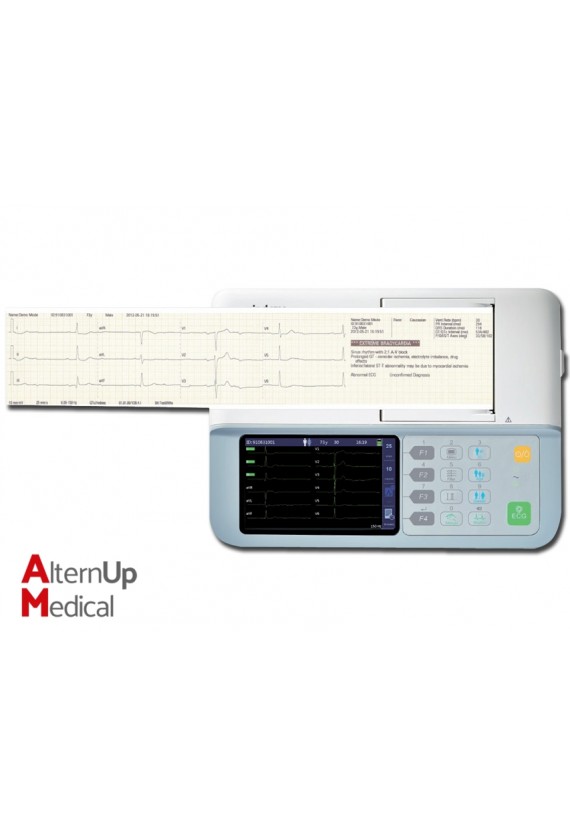

Mindray Beneheart R3 ECG

Lightweight portable cardiograph for resting ECG diagnosis

• Reliable analysis - Glasgow algorithm

• Great Portability - only 1.2 kg

• 5” clear colour display

• Convenient operations

• Unique recorder - Z-folded or rolling paper

WhatsApp Chat


Worldwide Delivery


After Sales Service Guaranteed


Secured Payment

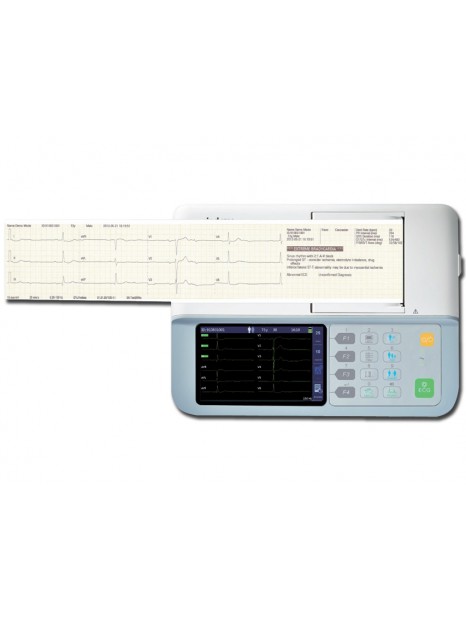

Mindray Beneheart R3 ECG

Lightweight portable cardiograph for resting ECG diagnosis.

• Reliable analysis - Glasgow algorithm

Utilizes the University of Glasgow ECG analysis algorithm, one of the world-leading resting ECG interpretations.

• Great Portability - only 1.2 kg

Weighs only 1.2 kg with battery, easy to carry.

• 5” clear colour display

Offers the highest resolution in industry, enabling clinicians to observe real-time waveforms accurately.

• Convenient operations

ECG recording is automatically unfolded on the writing pad at the top of the unit for notes or signature.

• Unique recorder - Z-folded or rolling paper

Compatible with both rolling paper and Z-fold paper.

Easily switchable without dismantling the pressure lever.


Specific References

New product


• Supply: AC input without external power adaptor or battery operation

• AC power: 100 to 240 VAC ± 10% 60 VA

• Battery-type: rechargeable Lithium ion battery 11.1 V typical, 2500 mAh

- capacity: 6 hours of continuous operation without recording or 500 ECGs in 2.5 x 4 format at 25 mm/s and 10 mm/mV

- charge time: 3.5 hours with power off


• ECG analysis

• samplig rate: 500 samples/second (sps)

• Digital sampling rate: 1000 samples/second/channel

• Pacer detection sampling rate: 16000 samples/second/channel

• ECG amplifier: DC-coupled

• Acquisition mode: Pre-acquisition or post-acquisition provide 10 seconds of instantaneous ECG acquisition

• Baseline drift filter: 0.05 Hz, Baseline Drift Removal (BDR)

• AC filter: 50/60 Hz ± 0.3 Hz

• ADC: 24 bit

• Imput impedance: 50 MD at 10 Hz, defibrillator protected

• Patient leakage: < 10 µA

• Heart rate meter: 30 to 300 BPM ± 10% or ± 5 BPM, whichever is greater

• Sensitivity/gain: 5, 10, 20 mm/mV, Auto


• Dysplay: 24 bit Colour display TFT LCD with LED graphics backlit

• Resolution: 800 x 400

• Display data: Patient ID, gender, age, heart rate, clock, battery power indicator, waveforms, lead labels, speed, gain, filter settings, warning messages, information messages, network status and USB

• Thermal printer: Dot array/Width 80 mm/speed 5, 12.5, 25, 50 mm/s


• Measurement and interpretation: according to University of Glasgow ECG analysis algorithm

• Resting ECG mode: Records and prints 12-lead resting ECG with 10-second duration as a standard

• Patient information: Patient ID, secondary ID, age, date of birth, gender, race, medication class and V3 electrode placement

• Internal storage: 800 ECGs in internal memory

• ECG Storage format: PDF format and Mindray storage format

• Multi-language internal software: GB, FR, IT, ES, DE, PL, PT, TR, RU, HU, RO, CZ, CN

• Report formats Thermal printer/PDF/A4/letter

• Size: 250 x 194 xh 56 mm

• Weight: 1.2 kg including battery
