Used Jaeger MasterScope Body Plethysmograph

JAEGER® MasterScope Body is an outstanding and accurate whole body plethysmograph for the differential diagnosis of restrictive and obstructive distribution disorders and for testing the reversibility of obstructions, for bronchospasmolysis and long-term therapy.

More details

More info

Used Jaeger MasterScope Body Plethysmograph

JAEGER® MasterScope Body is an outstanding and accurate whole body plethysmograph for the differential diagnosis of restrictive and obstructive distribution disorders and for testing the reversibility of obstructions, for bronchospasmolysis and long-term therapy.

MasterScope Body also assists in the diagnosis of suspected emphysema.

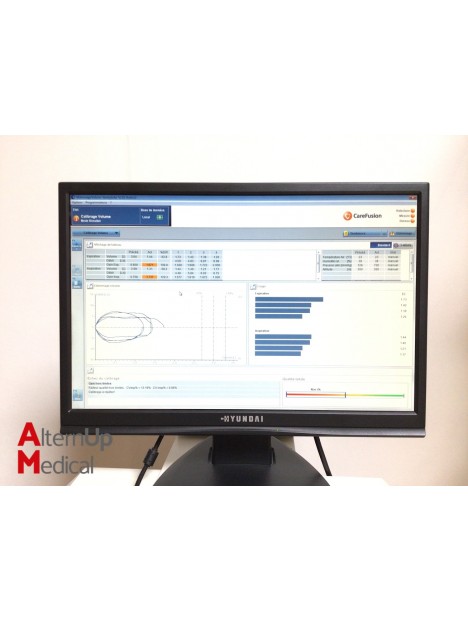

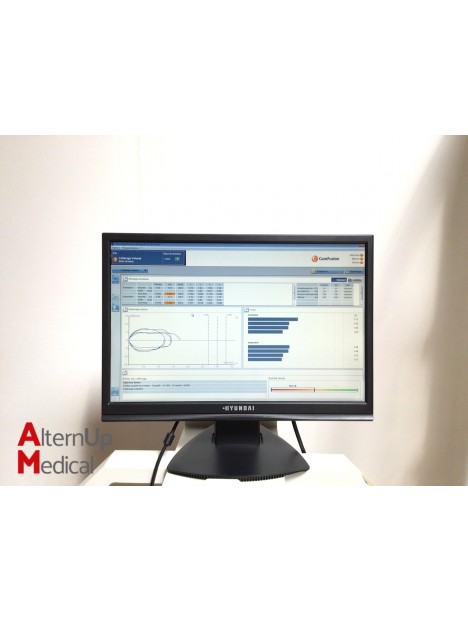

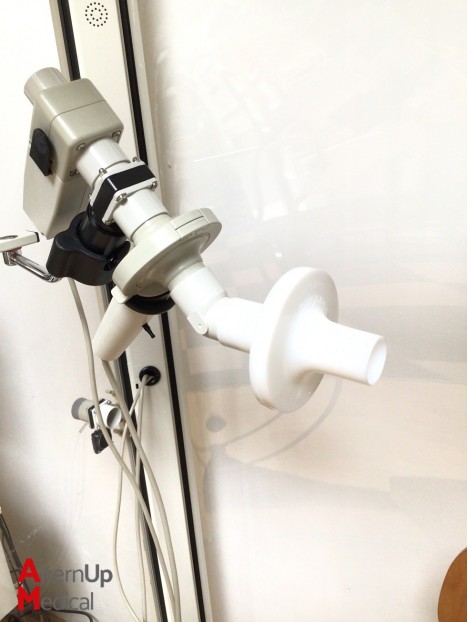

The entire test with airway resistance, absolute lung volume and flow/volume curve takes no more than two minutes. Our standard cabin is suitable for both children and adults. Thanks to the articulated arm, the tests can also be performed outside the cabin.


Functions

The entire test with airway resistance, absolute lung volume and flow/volume curve takes no more than two minutes.

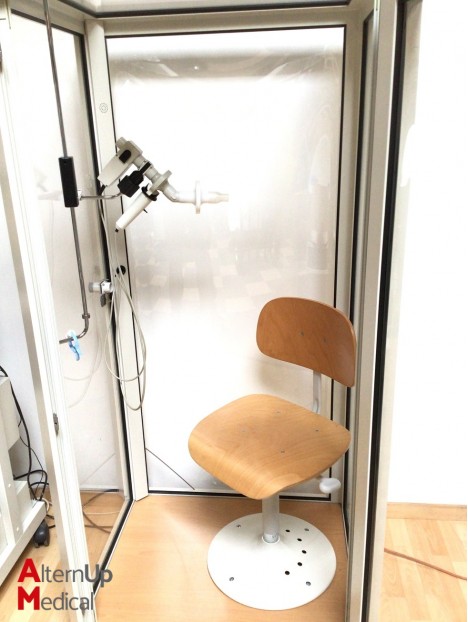

Thanks to a free view and an internal handle, patients feel safe and relaxed.
10 different animation programs for optimal patient cooperation during flow/volume curve measurement

Simple and fast post-processing of resistance tangents and FRCpleth (ITGV) at any time
Contains a useful interpretation program

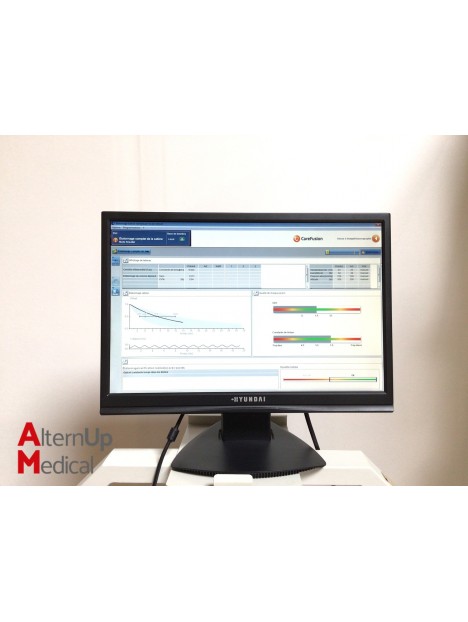

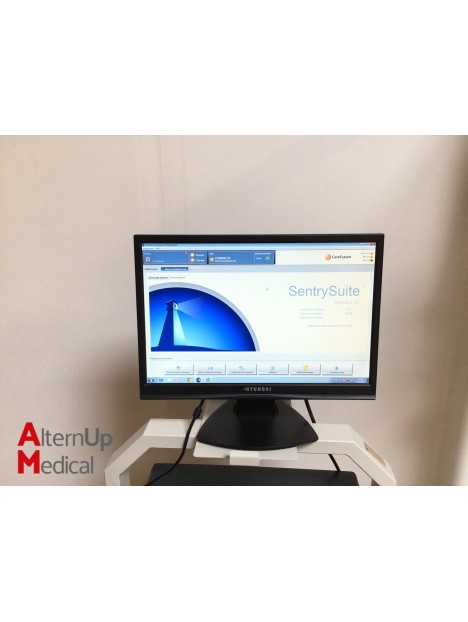

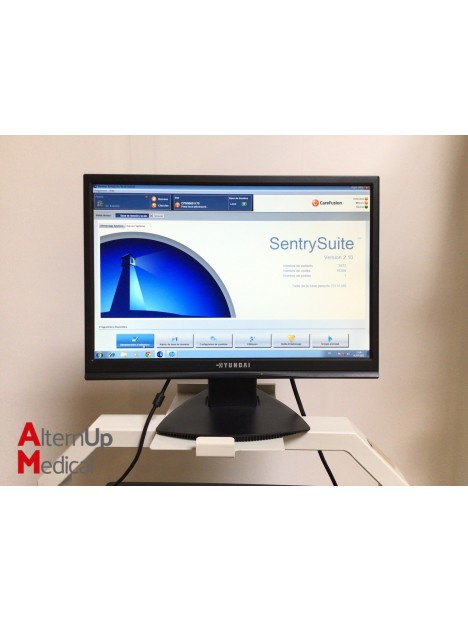

MasterScreen Body is equipped with our JLAB software package but can also be delivered with our new SentrySuite® software.

Features:

Flow / volume / pressure measurement
Flow Type: Pneumotachograph
  - Range: 0 to 20 l/s
  - Accuracy: 0.2 to 12 l/s, ±2
  - Resistance: <0.5 cmH2O/l/s
(0.05 kPa/l/s) at 10 l/s
VOLUME Type: Digital integration
  - Range: ±20 l
  - Accuracy: ±3%, ±50 ml (highest value applies)
Pressure regulator
CABIN PRESSURE (PB) Type : Piezoresistivity
  - Range: 10.2 cmH2O (1 kPa)
  - Accuracy: ±2%.
CABIN PRESSURE (CP) Type: Piezoresistivity
  - Range: 204.5 cmH2O (20 kPa)
  - Accuracy: ±2
Dimensions/weight

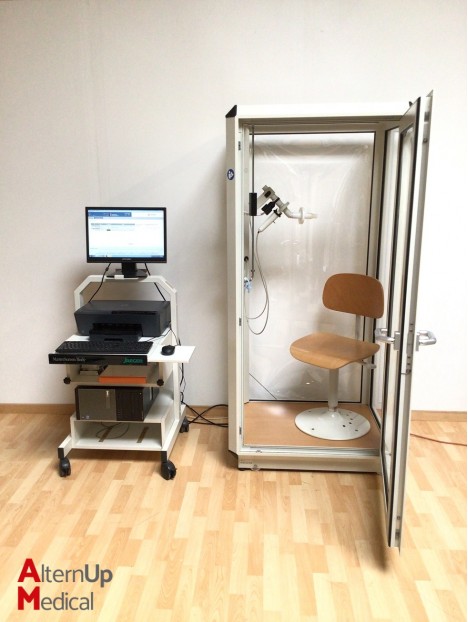

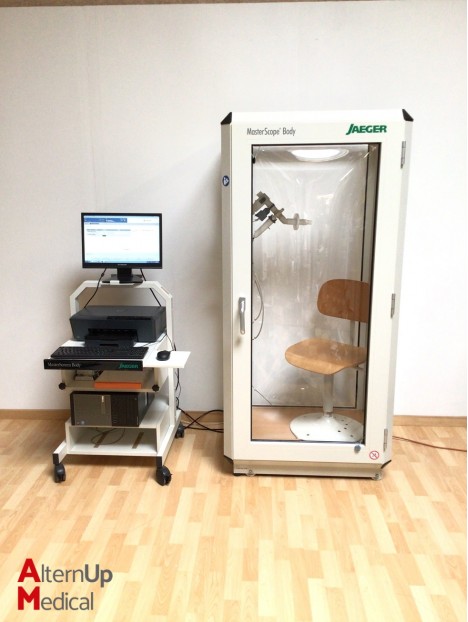

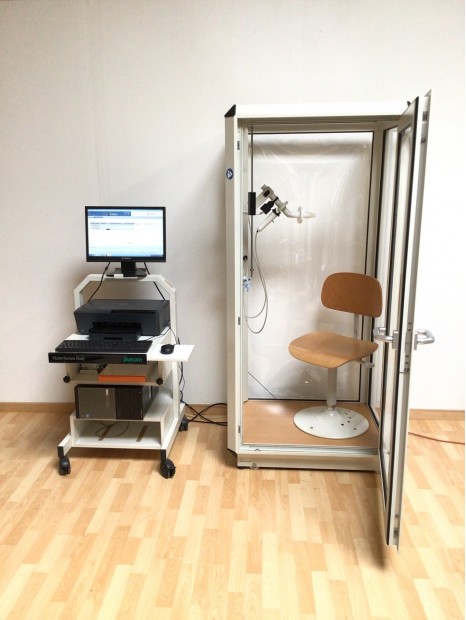

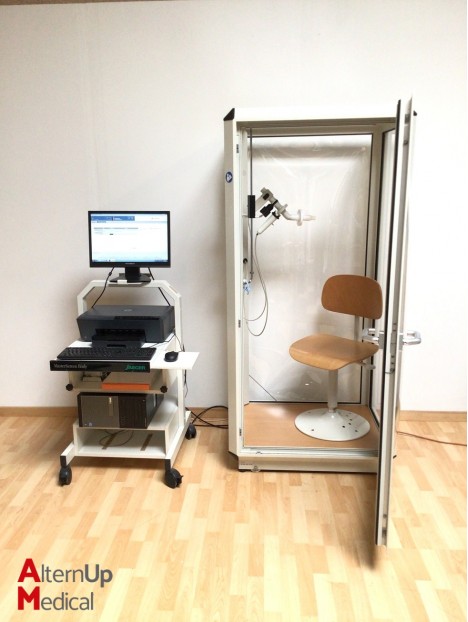

STANDARD CABIN Dimensions: 88 W x 85 D cm
(34,6" x 33,5")
  - Weight: 147 kg (325 lbs)
  - Volume : 830 l
