Valleylab Force EZ-8 Electrosurgical Unit
06072002

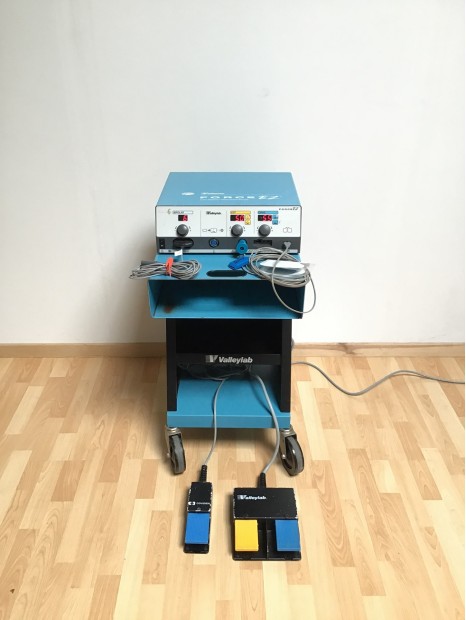

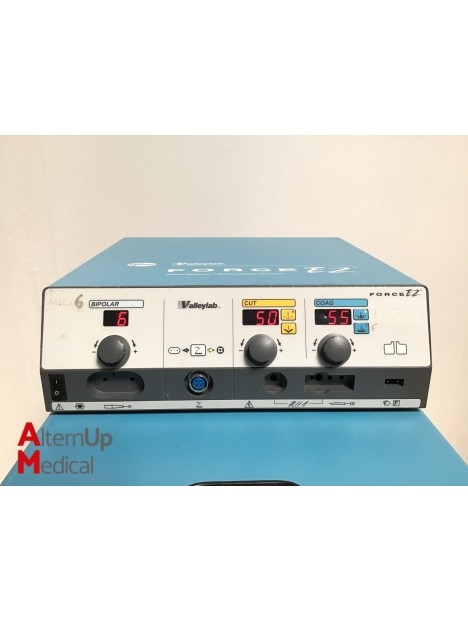

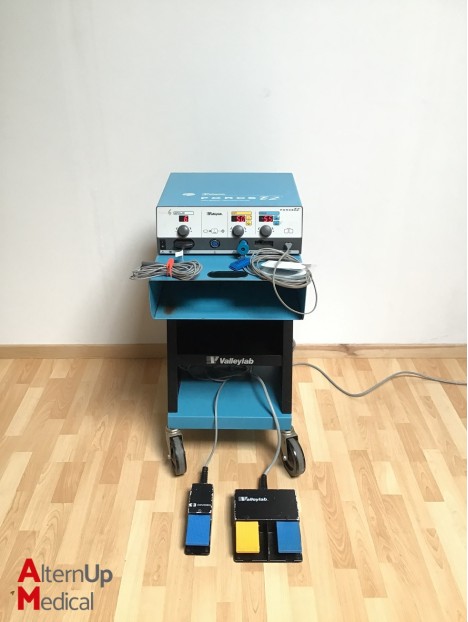

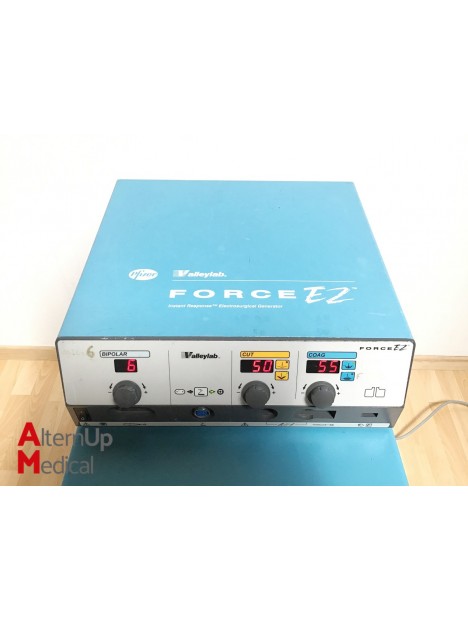

Used Valleylab Force EZ-8 Electrosurgical Unit

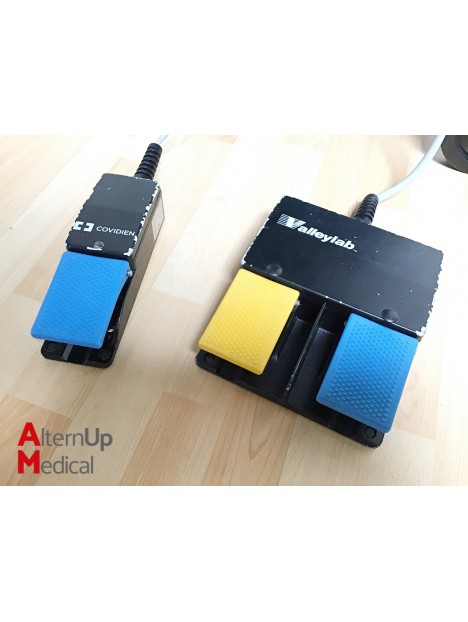

Supplied with 2 footswitch and 1 Patient return Electrode
Worldwide Delivery
After Sales Service Guaranteed
Secured Payment
Used Valleylab Force EZ-8 Electrosurgical Unit
Supplied with 2 footswitch and 1 Patient return Electrode
Features:
Output Waveforms
- Bipolar: 470 kHz sinusoid
Monopolor Cut
- Pure: 393 kHz sinusoid
- Blend: 393 kHz burts of sinusoid, recurring at 27 kHz intervals. 50% duty cycle envelope.
Monopolar Coag
- Desiccation:
Low 1: 240 +/- 40 kHz sinusoid recurring at 39 kHz. 8% duty cycle
Low 2: 393 kHz sinusoid
Low 3: 393 kHz sinusoid
- Fulguration:
High 1: 470 +/- 40 kHz damped sinusoid bursts with a repetition frequency of 57 kHz
High 2: 470 +/- 40 kHz damped sinusoidal bursts with a repetition frequency of 30 kHz
Output power changes by less than 15% or 5 watts, whichever is greater, as the line voltage varies from 90-135 volts and 186-264 volts (into a 300 ohm load).
Measurement Frequency: 80 kHz +/- 10 kHz
Measurement Current: Less than 10 uA
Acceptable Resistance Ranges: REM pad – 5.135 ohms, Non-REM pad – less than 20 ohms
06072002
