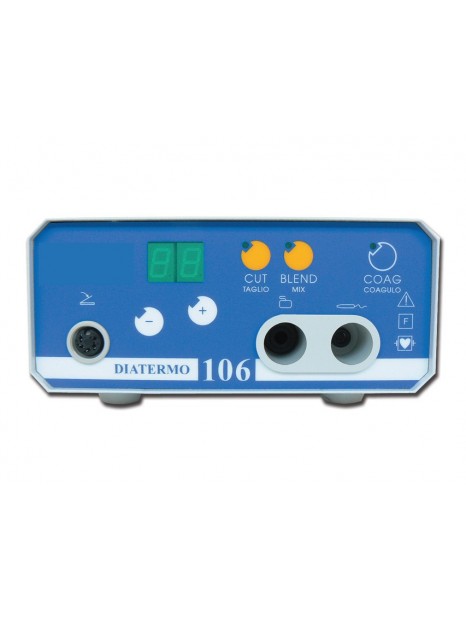

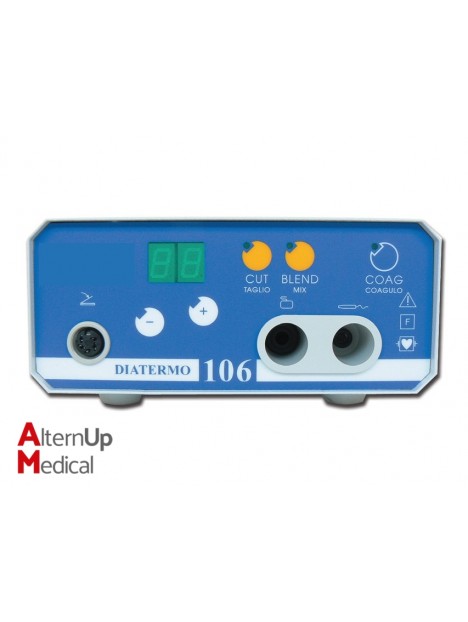

Diatermo 106 Monopolar Electrosurgery Unit

The monopolar electrosurgery unit is particularly suitable for small operations and are recommended for veterinary, dentistry, first aid and dermatology work. it offers precision of cut and immediate coagulation and gives excellent results in a large range of applications: from uterine coagulation to microcoagulation in dermatology. Moreover you can choose from a wide variety of electrodes for any need. The modes of operation, CUT, COAG BLEND and MICRO can be easily selected by a switch on the front panel. The complete isolation between patient and the unit and strict respect of international norms guarantee total safety.

Technical Specifications:

• Output power:
  - CUT 50W/400 ohm
  - COAG 40W/400 ohm
  - BLEND 45W/400 ohm
• Working frequency: 600 KHz +/- 10%
• Size: 180 x 180 x h 100 mm
• Weight: 2.8 kg
• Operating Voltage: 115/230V - 50/60 Hz switchable
• Electric input power: 90 VA
• Fuse: 2 x 1 AT
• Alarm for overheating
• Footswitch operating
• VNorms: EN60601-1Class I CF, EN 60601-1-2 93/42/EEC (Class IIb)

Standard Accessories:

• KIRKY single-use handle without buttons
• Rod neutral electrode and cable
• Kit of 6 short autoclavable electrodes, Ø 2.4 mm, length 5 cm
• Power cable 2 m - Shuko plug
• User manual available in: english, italian, spanish, french
