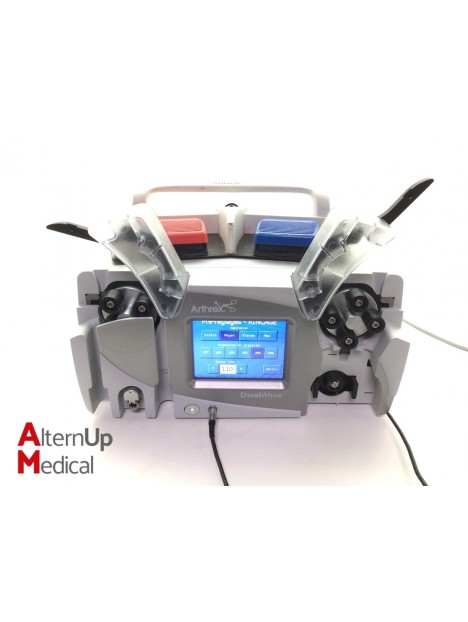

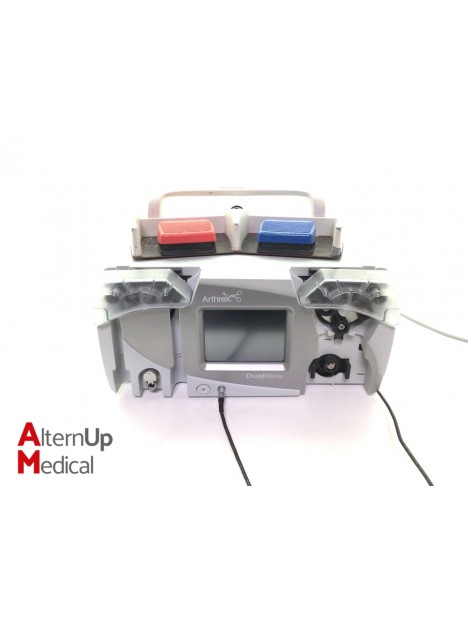

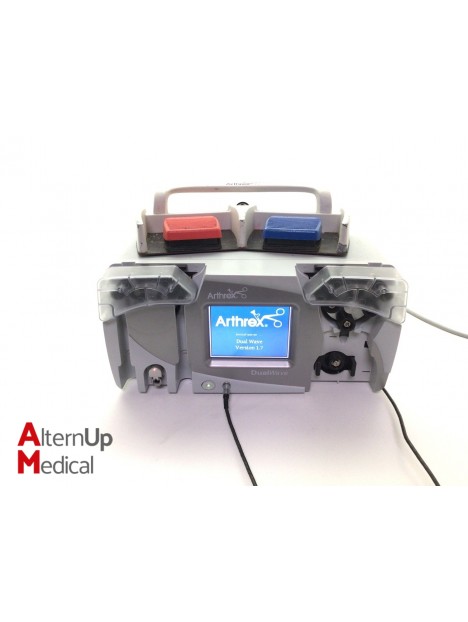

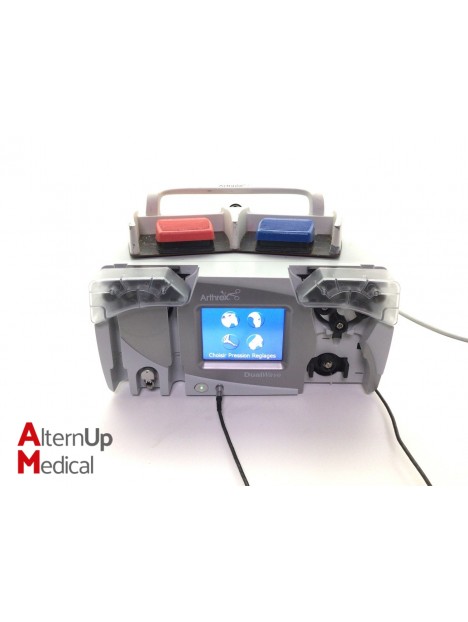

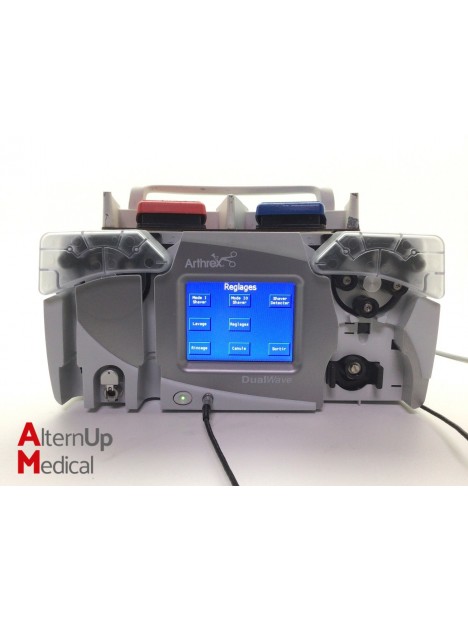

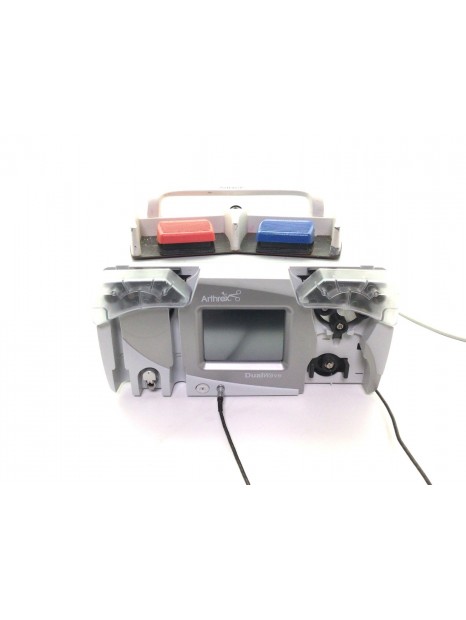

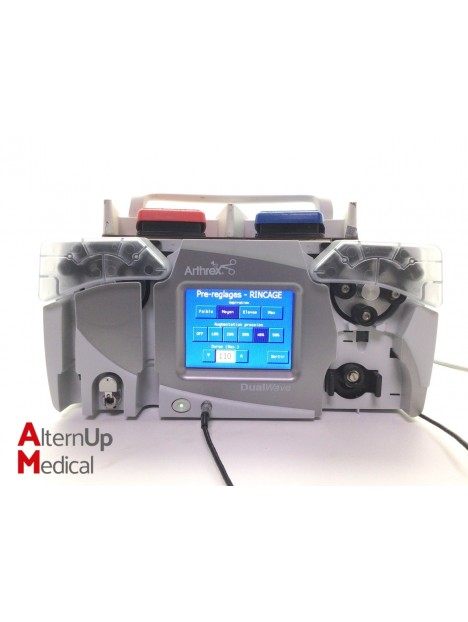

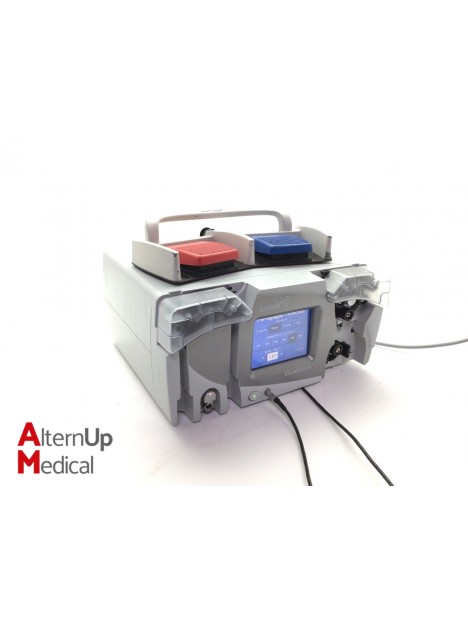

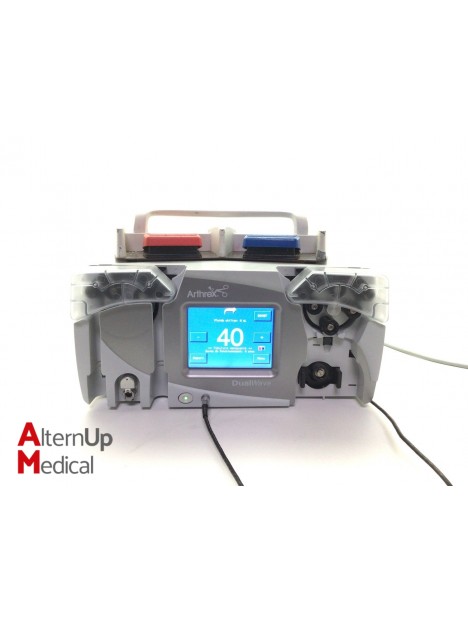

The Arthrex DualWave Arthroscopy Pump is an integrated inlet and outlet fluid management system that can also be used as a simple inlet-only arthroscopy pump.
The DualWave pump is a safe, reliable and user-friendly system that maintains constant, non-pulsating control of intra-articular flushing and distention pressure during all phases of an arthroscopic surgical procedure. It is designed to provide continuous, non-pulsating flow that responds immediately to changes in intra-articular pressure, so that joint distension can be maintained even with high shaver extraction volumes or secondary flow.
User-defined parameters for input pressure and output rates are adjustable via controls on the touchscreen panel or remote control.
Universal medical grade power supply allowing it to automatically operate at the voltage ranges used worldwide.
- A universal automatic resector detection feature that allows the device to automatically switch from low flow cannula suction to high flow arthroscope sleeve suction as needed. A touch screen displays user input.
- a wash function that applies high pressure to stop bleeding and a flush function that allows for rapid cleaning of joint spaces
Maximum Flow rate: 1500 ml/minute
Pressure 0 – 120 increments of 5 mmHg.
Overpressure control: 300 mmHg
Pressure control: Continuous pressure checking
Main cable: 10 A/250 V
Connector CEE 7/7
Jack IEC 320/C13
Power supply: 100-240 V, 50/60 Hz, 4A
Fuse: T8.0A 250V
Cleaning: Surface cleaning with mild detergent
Sterilization: Surface disinfection with mild disinfectant
