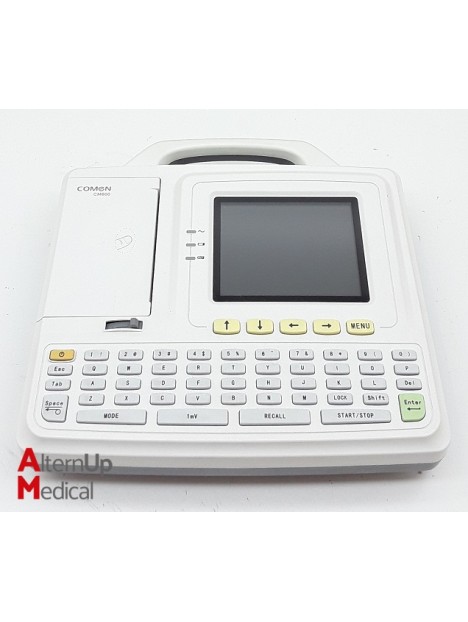

Comen CM600 Electrocardiograph
O-ECG19101702
€1,200.00
Tax excluded
Available
Used Comen CM6000 Electrocardiograph
Demonstration medical equipment - Year 2012
6 channels ECG
Worldwide Delivery
After Sales Service Guaranteed
Secured Payment
Used Comen CM6000 Electrocardiograph
Demonstration medical equipment - Year 2012
Features:

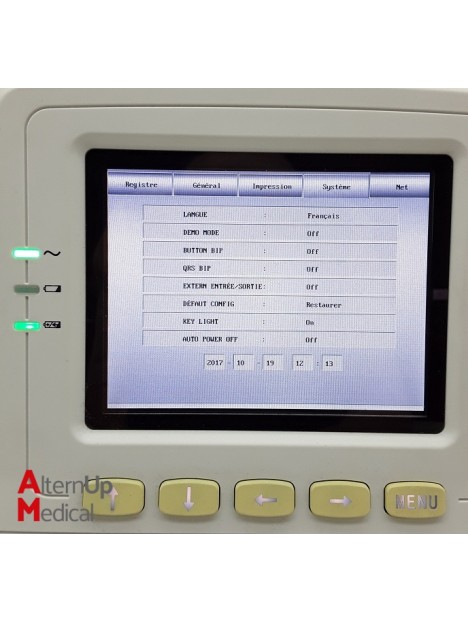

- Display 5.7 inch Single Color LCD screen (resolution: 320 240)
- Input Circuit Defibrillation Protection Built-in

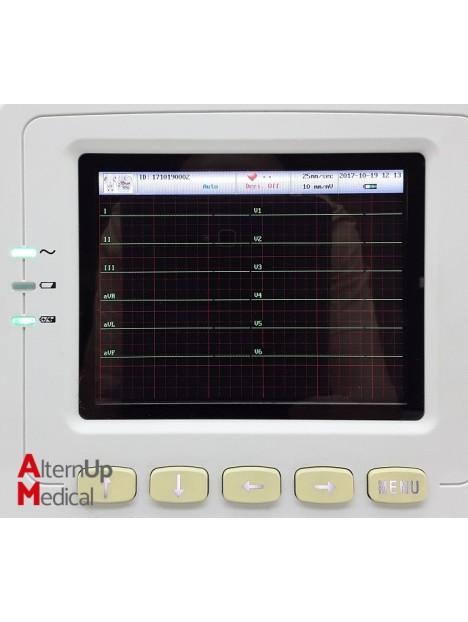

- Acquisition mode simultaneous 12 lead acquisition (10-24s adjustable)
- A/D converter 24bits
- Sampling rate 1000Hz/channel, 10,000 for pacemaker detection
- Time Constant 5s
- Frequency Response 0.05Hz-150Hz
- Calibration Voltage 1mV 1%
- Sensitivity 2.5mm/mV 5mm/mV 10mm/mV AGC(automatic) 20mm/mV 10/5mm/mV, 20/10mm/mV
- Input Impedance 50M
- Input Circuit Current < 50nA
- Noise Level < 15 Vp-p
- AC Filter: 50Hz/60Hz/Close
- EMC Filter: 25Hz/35Hz/45Hz/Close
- Drift Filter 0.05Hz/0.15Hz/0.25Hz/0.50Hz
- Lowerpass Filter 70Hz/100Hz/150Hz
- CMRR: 105dB
- Recording Mode: Auto/Manual/Rhythm
- Memory 300 ECGs,
- Built in 1G SD card to5,000 ECG record
- Built in 2G SD card to10,000 ECG record
- Rhythm lead: single channel and three channels selectable.
- Power Supply DC and AC power supply, (100-240V, 50/60Hz)

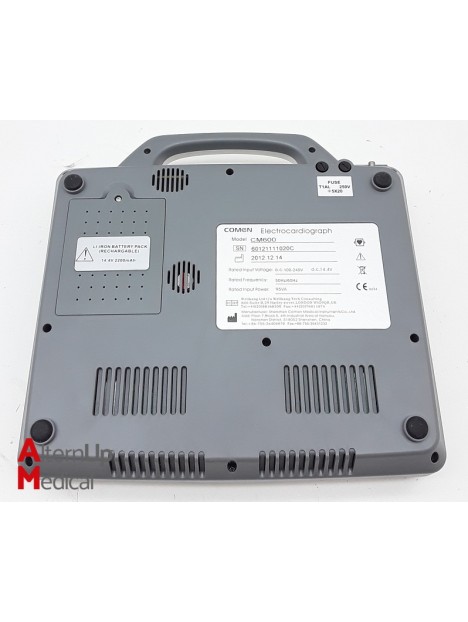

- Built-in rechargeable li-ion battery, at least 4 hours working time.
- Recorder Thermal printer
- Number of Channel 3. 4. 6
- Recording paper 110mm z-fold
- Record speed 5mm/s, 10mm/s, 12.5mm/s, 25mm/s,, 50mm/s
- Weight Approximately 3.0kg
- Dimensions 322mm x 310mm x 100mm
- External input 100 K sensitivity 10mm/V 5%
- External output 100 , Sensitivity 1V/mV 5%

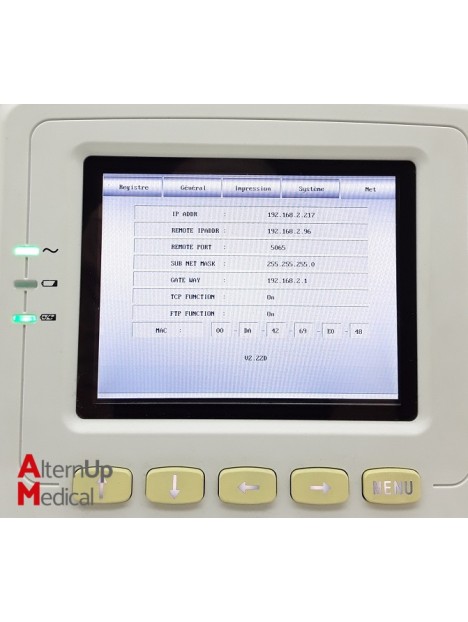

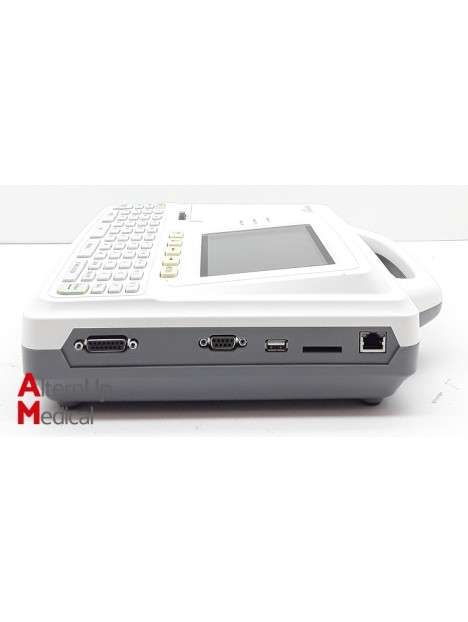

- Communication Interface Ethernet, RS232, USB

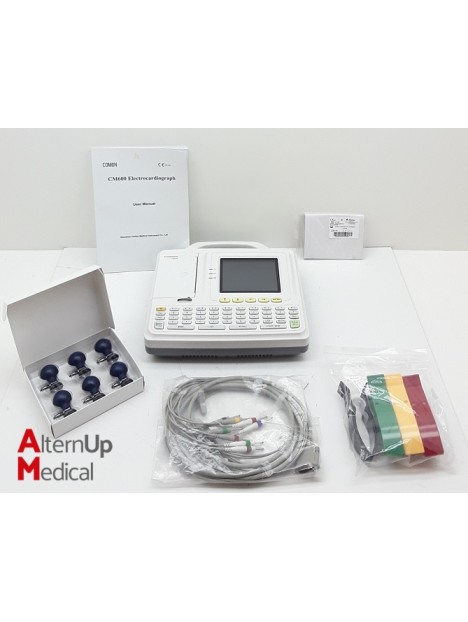

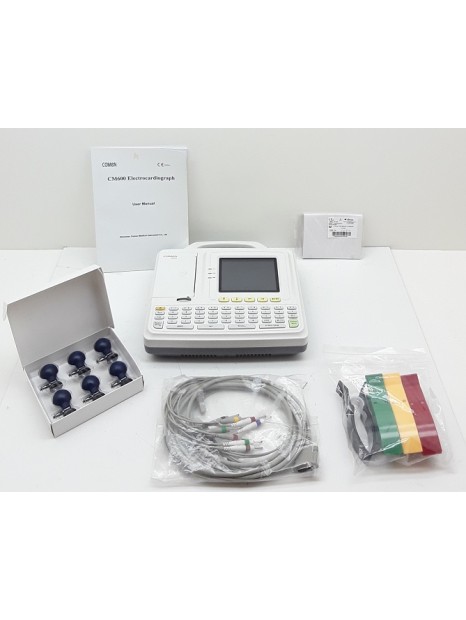

Supplied with:
- 1 ECG cable 10 leads
- 4 clips
- 1 box of 6 suctions cups
- 1 pack of printer paper
O-ECG19101702
