Datascope Passport 2 Vital Signs Monitor

Used Datascope Passport 2 Vital Signs Monitor.

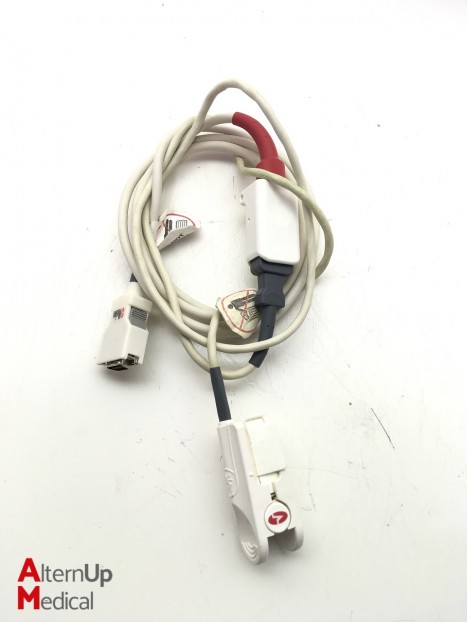

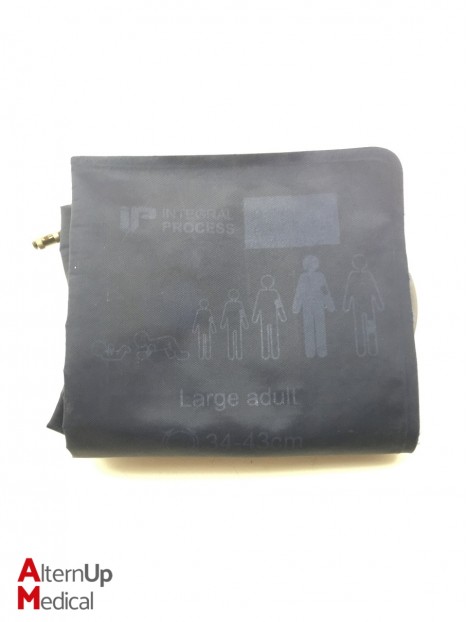

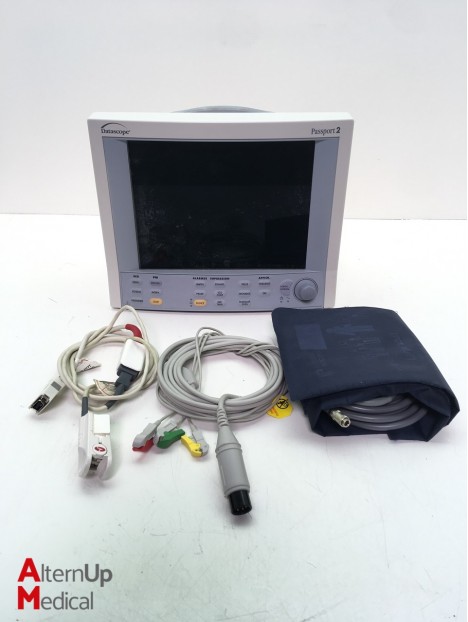

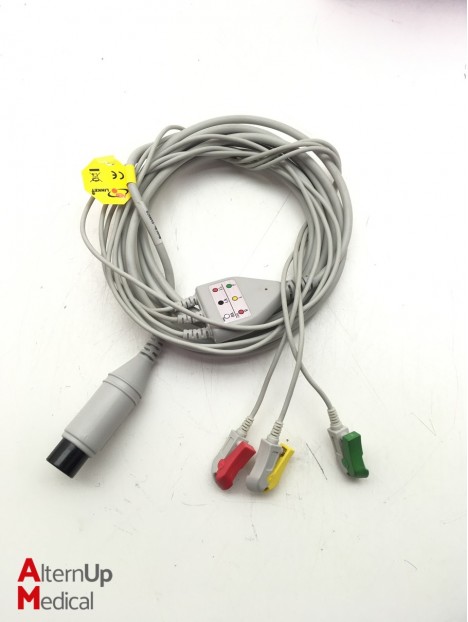

Supplied with 1 ECG cable, 1 SPO2 sensor and 1 NIBP cuff

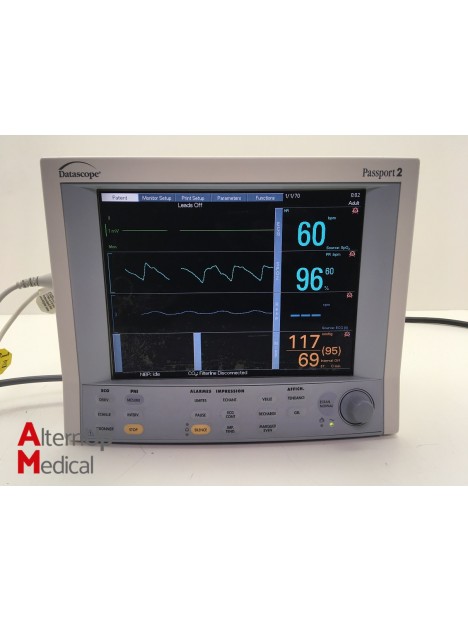

The Passport 2 features an incredibly intelligent display interface which allows the user to evaluate patient status at a glance. Data is presented clearly, concisely and logically. Waveforms are aligned to digital data for immediate interpretation. Graph and list displays are easily configured to personal preference.

Specifications :

- 10.4 inch TFT colour display.

- 3 to 6 waveforms with automatic expansion.

- Large self-adjusting numerical values.

- Monitor size: 9.5"H x 11.9"W x 7.4"D.

- Weight: 14.3 lbs. with 2 batteries.; 11.4 lbs. without batteries.

- Running time: 2 hours +/- 6 minutes from two fully charged batteries at 25°C with ECG SpO2

- Recharge time: 16 hours maximum.

- Power: 100-240 VAC +/-10% 50/60 Hz +/-3 Hz.

- Energy consumption: 60-72 watts, 0.6-0.3 amperes.

- Measuring range: 30-300 bpm adult/pediatric, 30-350 bpm Newborn.

- Measurement accuracy: +/-3bpm or +/-3% at 30-250 bpm, +/-5% at 251-350 bpm.
