RGL-1065/EE with PAL-190-65, LR/Z-125 (H: 700-950 mm)

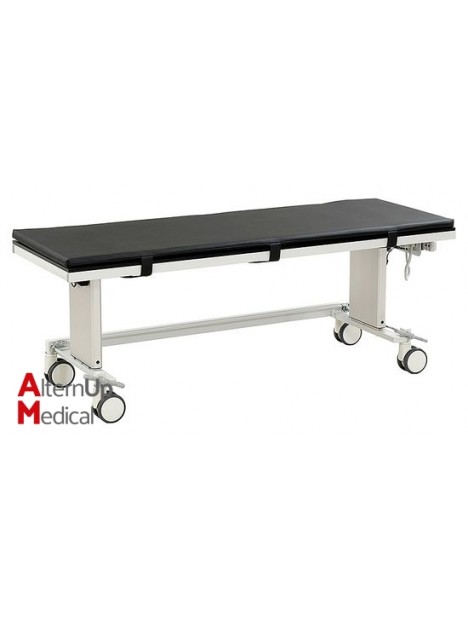

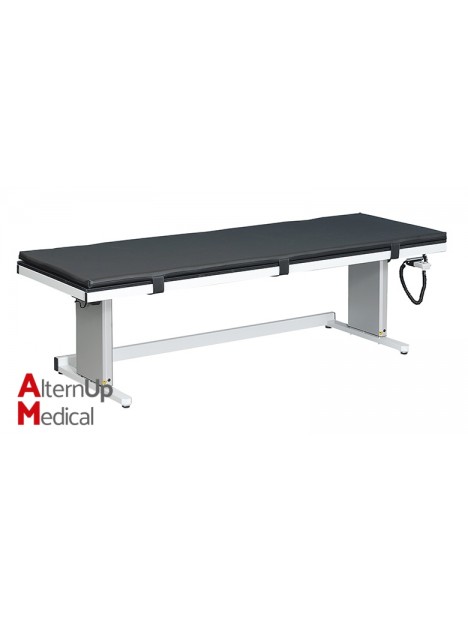

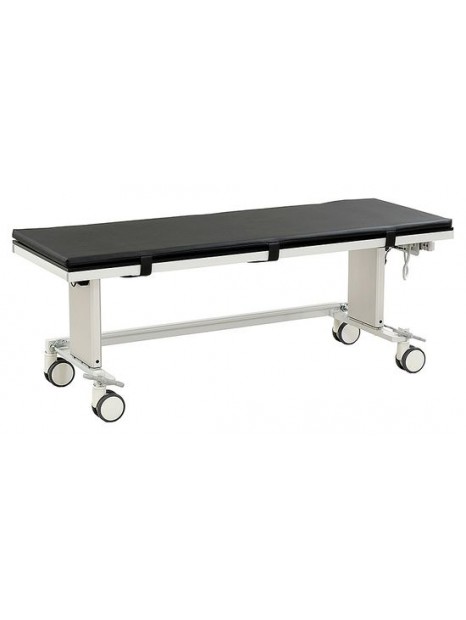

AGA POWER-LIFT X-RAY Table

Reference RGL-1065/EE

Condition

€3,100.00 Tax excluded

Available

The table AGA-POWER-LIFT have been specially developped for use in the field of radiography.

Since there is no longitudinal brace at the front of the leg frame, the use of a C-arm is easily possible.

MANUFACTURED IN GERMANY - 3 YEAR WARRANTY

Hello, our team is not online at the moment. We invite you to send us your request via our contact section. It will be processed as soon as possible.

Worldwide Delivery

After Sales Service Guaranteed

Secured Payment

The POWER-LIFT Operating Table is available in two versions :

- Table Width : 650 mm with a continuous tabletop : Art. N° MGL-1065/EE

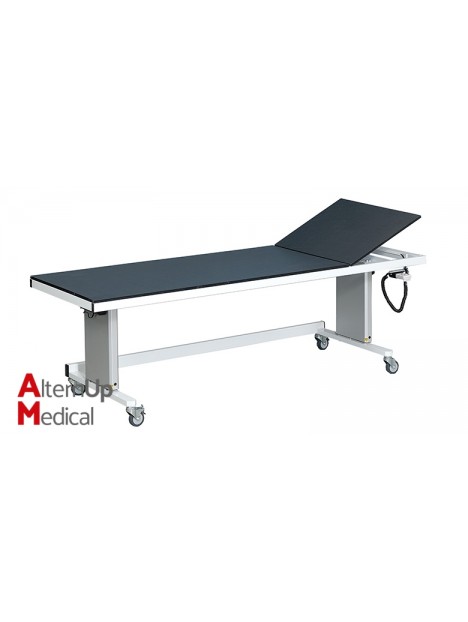

- Table Width : 800 mm with a two-piece tabletop with adjustable headrest (on the right handside unless requested otherwise at ordering time). The headrest (length 500 mm) can be adjusted by grid : Art N° MGL-1080/KEE

Features :

• The radiolucent table surface has a thickness of 15 mm (table width 650 mm) or 25 mm (table width 800 mm).

• The metal-free area between the two motors covers approximately 1430 x 600 mm (LxW).

• The lifting columns (low-voltage electric drives) are made of anodized light alloy and characterized by their smooth operation. They are controlled via a transformer by a manual switch with two buttons (up and down). Drive specifications: 230V, 50/60Hz, 2,0A, 120W, IP20, v=16mm/s, 1000N.

• The levelling screws under the leg frame give the X-ray tables an enhanced level of stability.

• The standard height adjustment range for the X-ray tables is 550 – 800 mm. An adjustment range of 700-950 mm is also available.

Options :

• The X-ray tables AGA POWER-LIFT are available with a continuous tabletop or a two-piece tabletop with adjustable headrest (on the right handside unless requested otherwise at ordering time) . In addition, they are, like the upholstered pads below, available in the widths of 650 and 800 mm.

• To provide a comfortable lying position for the patient, upholstered pads are recommended. Article No. PAL-190- 65 (width 650 mm) and PAL-190-80 (width 800 mm) have a thickness of 40 mm and are attached with hooks and loops fasteners onto the upper frame of the X-ray table.

• On the standard X-ray tables with a two-piece tabletop, the headrest is located on the right side. Upon request at time of ordering, the headrest can be placed on the left handside.

Accessories :

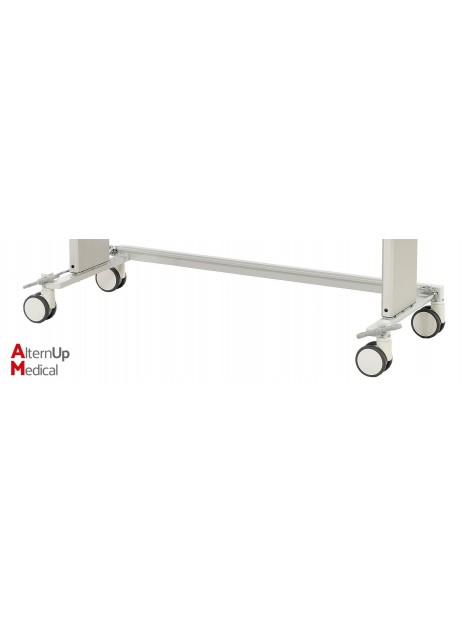

• There are two different castor diameters to choose from, Ø 75 mm (Article No. N-AGALR75) and Ø 125 mm (Article No. N-AGALR125). A set consists of four castors, two of which are lockable.

• For increased comfort of use, we offer a mobility option with central locking castor system (Article No. N-AGALRZ125). All four double castors are connected by rods. A foot pedal to secure/ release is located at the head and foot ends of the table.

• To protect the tabletop or the upholstered pads, the use of a medical paper roll is possible. The corresponding paper roll holder can be mounted at the foot end of the table (Article No. N-AGAP2065A for 650 mm wide X-ray tables and N-AGAP2080A for 800 mm wide tables).

• The standard side rails (Article No. N-AGAOPS-../A) are available in five different lengths: 400, 600, 1000, 1400 or 1700 mm. Additionally, you may determine their placement (whether at the head, feet or the table centre, plase specify at time of order). Various accessories can be mounted onto the standard side rails (infusion holder, side guards, arm support, side supports, etc.)

MANUFACTURED IN GERMANY - 3 YEAR WARRANTY
