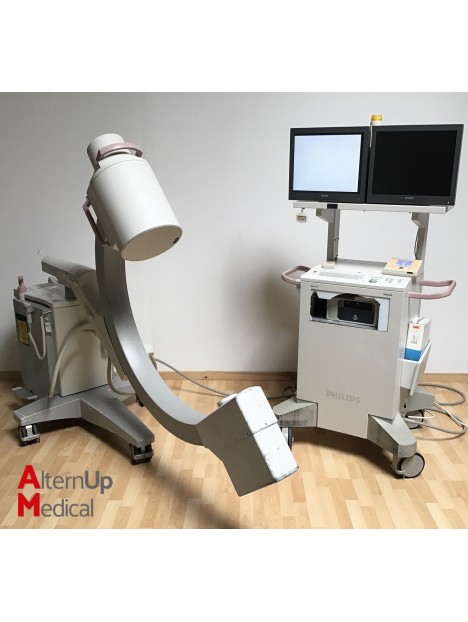

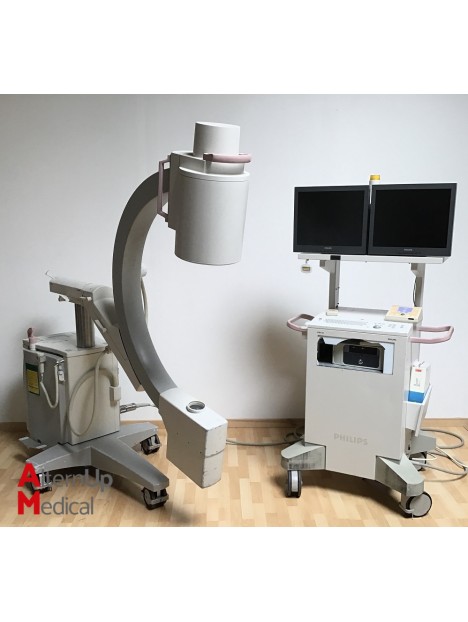

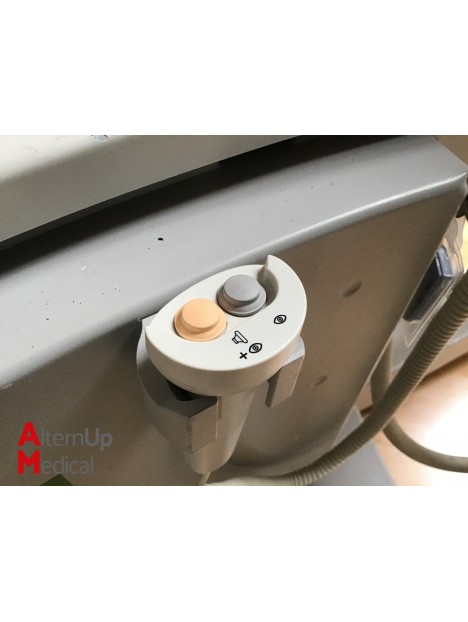

Philips BV 300 C-Arm
12082002
€5,000.00
Tax excluded
Available
Used Philips BV 300 C-Arm
• Tri Mode 9"/6/4" Image Intensifier
• Scopofix 320 Image Storage
• Dual Hi-resolution Monitors
Worldwide Delivery
After Sales Service Guaranteed
Secured Payment
Used Philips BV 300 C-Arm
Features:

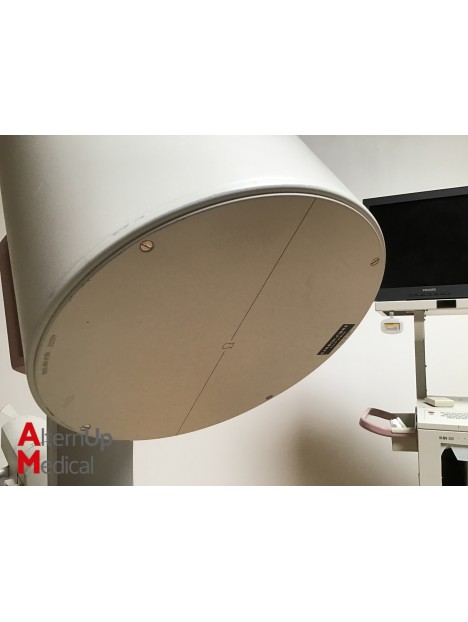

• Tri Mode 9"/6/4" Image Intensifier
• Scopofix 320 Image Storage
• Dual Hi-resolution Monitors
• CCD Video
• Hard Copy Matrix Camera

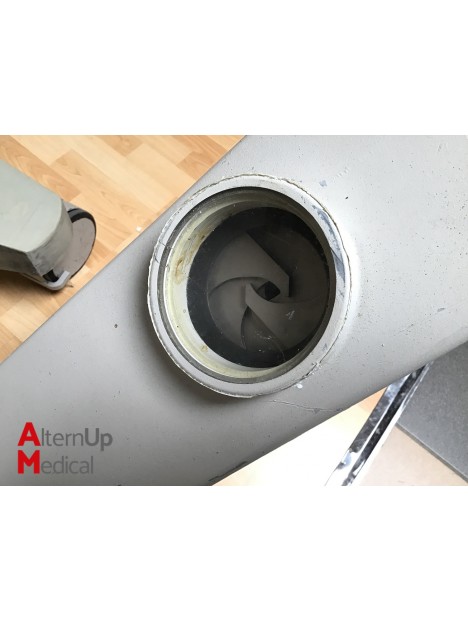

• Fixed X-ray Tube
• C-Arm Stand Dimensions
Longitudinal Travel 20 cm
Panning Movement ±10°
Motorized Height Movement 50 cm (range from +44 to -6 cm)
Rotation Beyond ±180° with safety stop at ±135°
Angulation +90° / -25°
Source Image Distance Fluoroscopy 99.5 cm
Radiology with cassette holder 94.5
Source Skin Distance 20 cm
Distance from image intensifier screen to X-ray tube output window 78 cm
Distance form C-Arm to X-ray beam 61 cm
