Philips Practix Convenio Mobile X-Ray System

O-PRACTIXCONV

Used

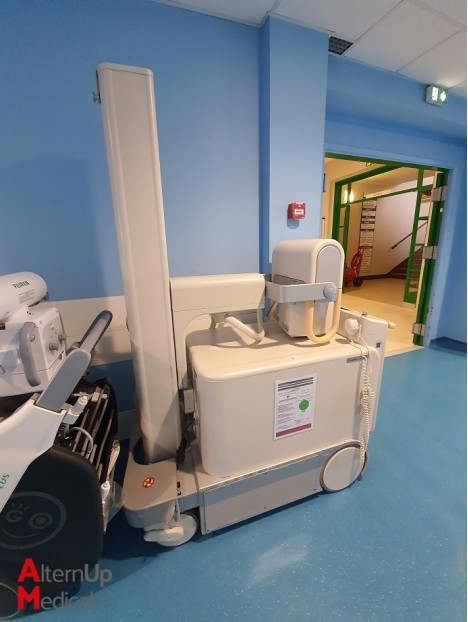

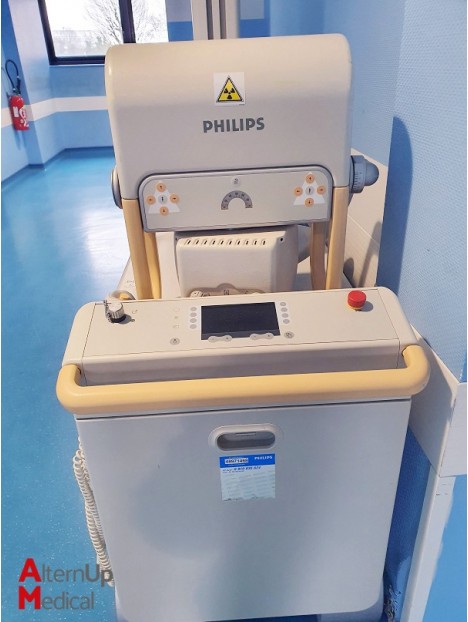

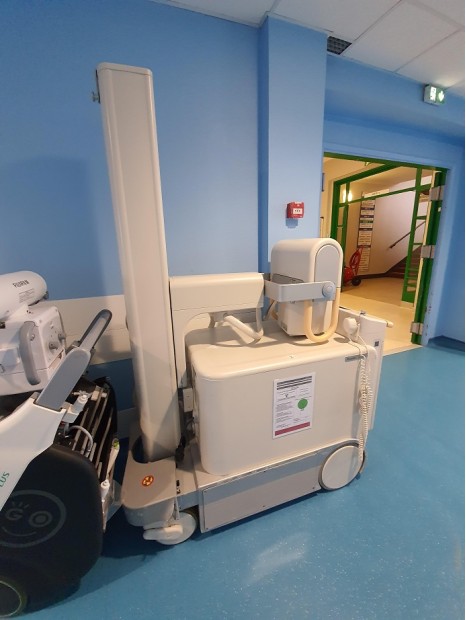

Used Philips Practix Convenio Mobile X-Ray System

Year 2009

The Practix Convenio combines state-of-the-art technology with almost unlimited mobility. Thanks to its autonomous system, you are no longer hindered by cable restrictions or searching for sockets.

More details

More info

Used Philips Practix Convenio Mobile X-Ray System

Year 2009


The Practix Convenio combines state-of-the-art technology with almost unlimited mobility. Thanks to its autonomous system, you are no longer hindered by cable restrictions or searching for sockets.

Easy handling and positioning
Thanks to its compact size and integrated motor, Practix Convenio easily masters obstacles and inclinations. The unit operates on its own power with the speed that best suits the operator and can be stopped by simply releasing the handle. Precise positioning from the tube head is also possible. The Practix Convenio offers long battery life for a full working day and optimal mobility at the patient's bedside: Due to its extendable arm, patients are easily accessible from all points of the bed.

Applications
The Practix Convenio is equipped with a 30 kW microprocessor-controlled high-power X-ray generator, allowing all types of applications and the best possible image quality. Thanks to its high performance and wireless operation, the Practix Convenio is particularly suitable wherever connection to electrical outlets is a disadvantage, such as in intensive care units, trauma rooms or for pediatric applications. The device is particularly user-friendly and has 36 APR programs that can be accessed via the high-resolution display to facilitate and speed up your specific routine settings.

Features:

Type : Battery-powered X-ray unit with rotating column (±315°) and telescopic X-ray tube arm with 12 gel batteries. Variable speed: Reverse 2.5 km/h, forward 5 km/h.
Dimensions in mm (l x w x h): 1290 x 620 x 1930 (50.83" x 24.43" x 76.04")
Cassette storage: Radiation protection for up to 8 cassettes + grid
Source-to-ground distance: 80 cm to 210 cm
Weight: <450 kg (992 lbs)

Generator
Type: High power X-ray generator (20 kHz)
Peak power : 30 kW (100 kV / 20 ms)
Rated power: 20 kW (100 kV / 100 ms)
Tube voltage: 40 kV to 125 kV in 1 kV steps
Maximum current: 300 mA
Tube current-time product: - large focal spot: 0.63 mAs to 320 mAs
                                           - small focal point: 0.1 mAs to 200 mAs
Power supply: 115 V -15% to 230 V +10%.
Mains fuse: 10 A
Preparation time: ≤2 s
Exposure time: 1.5 ms to 3.2 s

X-ray tube
Type: High resolution rotating anode x-ray tube
Material: Tungsten, rhodium and molybdenum
Nominal : focal spot 0.8 small focal length/1.3 large focal length
Angle of the anode: 15°.
Maximum radiation field: 43 cm x 43 cm per 1 m SID
