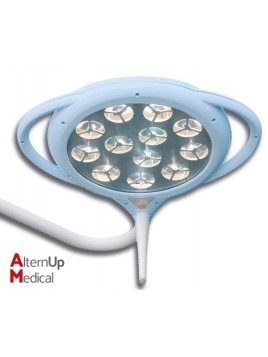

Rimsa PENTALED 28 Surgical Light

49115

New product

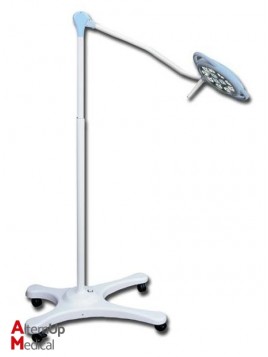

Pentaled 28 - trolley

The Pentaled is a perfect combination of technological developments, innovation, ergonomy and compact design, ultra-light and handy structure.

Five versions available: trolley, ceilling, ceiling double, trolley with battery group and wall.

More details

More info

Technical performances make Pentaled suitable for precision operations, diagnostic use, surgical rooms ans small surgeries.

Battery group, with an autonomy of 3 hours, is available on request also for wall and ceiling models.

Cold LED light

Bright and cold light reproduces colours faithfully, assuring excellent definition of details.

Ergonomic

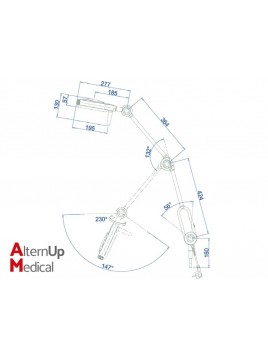

Pentaled can be easily positioned by rotation on 4 axes:

- the dome has a full-circle 360° rotation

- the arm moves vertically thanks to a spring balancing system

- the reflector can be rotated on the vertical and horizontal axis.

Movements are possible through the sterilizable handle.

Technical Specifications:

- Light intensity at 1m distance: 80,000 Lux (5,000K) or 50,000 Lux (4,500K)

- Colour temperature: 4,500/5,000 K°

- LED: 28

- Average LED life: 50,000 hours

- CRI (Chromatic rendering Index): 92 Ra ( 5,000K) or 96 Ra (4.500K)

- Light field where illumination reaches 50% of Ec (d50): 135 mm

- Light field where illumination reaches 10% of Ec (d10): 270 mm

- Depth of illumination (L1+L2) at 60%: 58 (28+30) cm

- Total radiated energy Ec: 220 W/m²

- Weight: 13 kg

- Power suplly:100-230V, 50-60Hz

- Standards: IEC 60601-2-41, 2007/47/EEC, medical device of Class I
