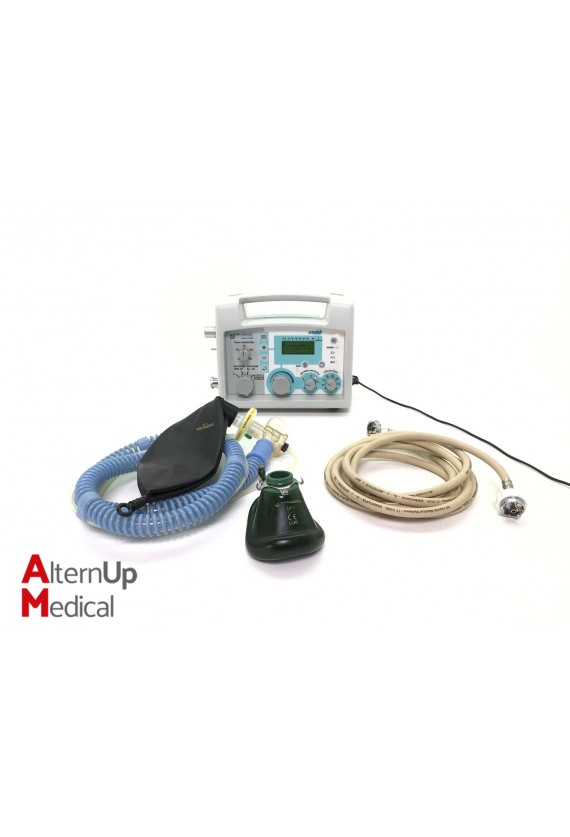

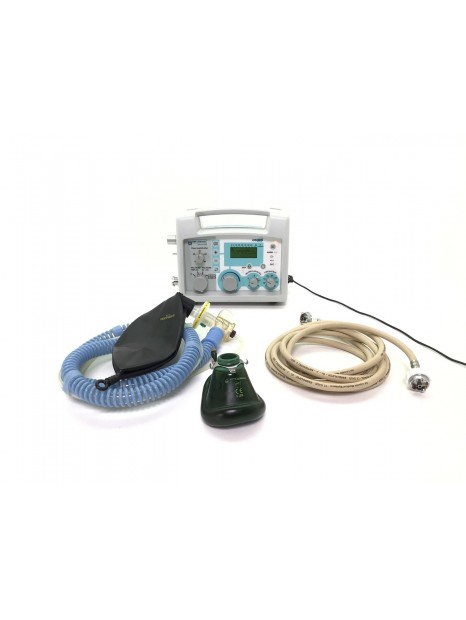

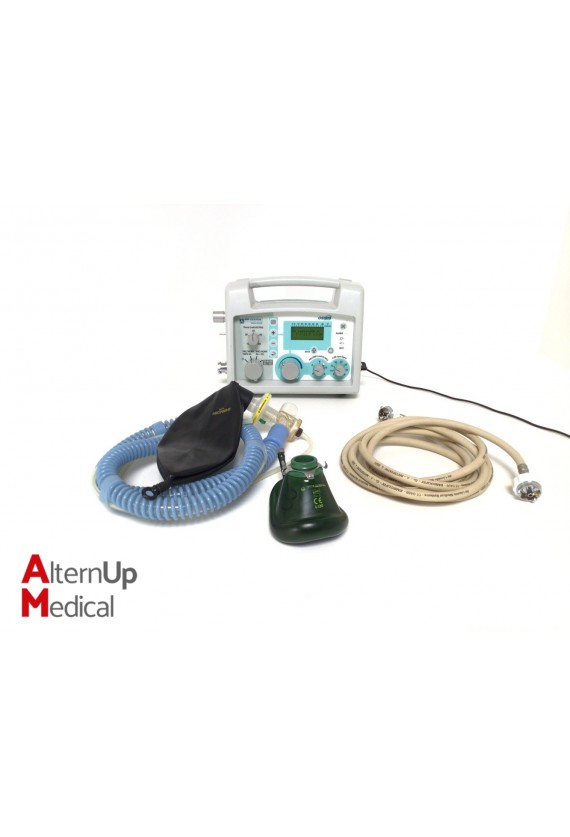

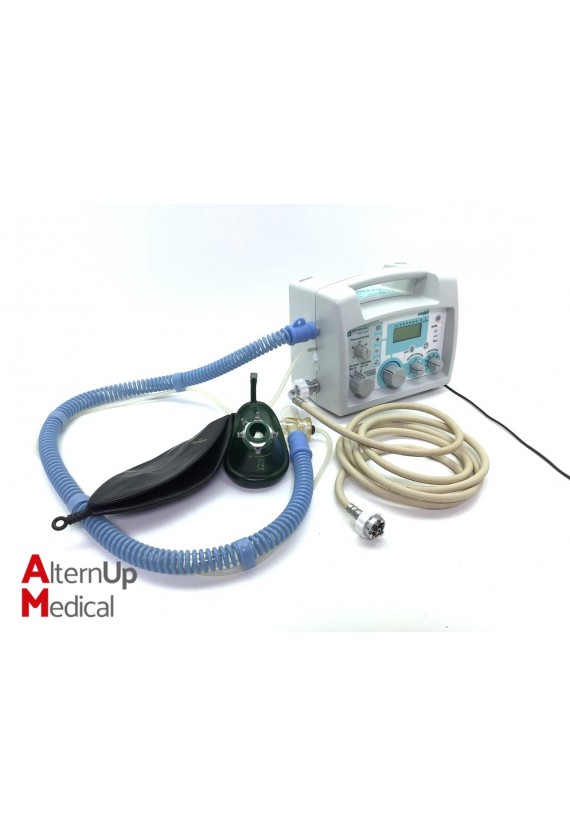

Taema Osiris 2 Emergency Ventilator

Taema Osiris 2 Emergency Ventilator

Supplied with: 1 O2 flexible hose

Emergency transport ventilator that can ventilate adults and children (from 7 Kg).
Ventilation modes: Controlled or Assisted Volume Ventilation and Integrated Positive Expiratory Pressure (VC or VAC), either in pure oxygen or in air/oxygen mixture.

VAC ACMV
FiO2 adjustable either with pure oxygen or with oxygen/air mixture (60%). Tidal volume (VT) adjustable from 100 to 1500 ml. Frequency adjustable from 6 to 40 c/min. I/E ratio adjustable from 1/1 to 1/3. The integrated Positive Expiratory Pressure (PEEP) is adjustable from 0 to 10 cm H2O.

In ACMV mode, a pre-set tidal volume is insufflated into the patient circuit at each inspiratory effort, using a constant flow rate. In case of apnea, the device will operate on preset safety parameters.

VS-AI/PS
An inspiratory support (constant positive pressure), adjustable from 5 to 40 cm H20, is obtained at each inspiratory effort. Positive Inspiratory Pressure is usually set between 7 and 10 cm H2O.

PRINCIPLES OF OPERATION :

The oxygen supply pressure is 3.5 bar (+/- 0.7) and the device's own consumption is approximately 1l/min. The internal batteries, which are essential for powering the electronic circuit, have an autonomy of 10 hours and can be recharged in 10 to 14 hours. Osiris 2 can be connected to the mains.
