Chison SonoBook9 Portable Ultrasound
N-ECHOCHISON9
€22,500.00
Tax excluded
Available
Chison SonoBook9 Portable Ultrasound
2 years Warranty

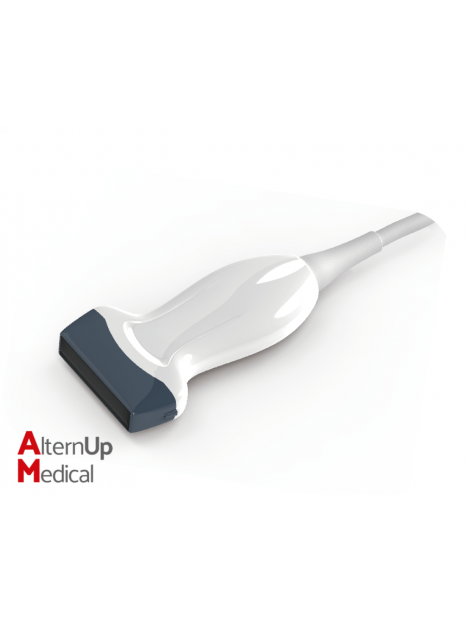

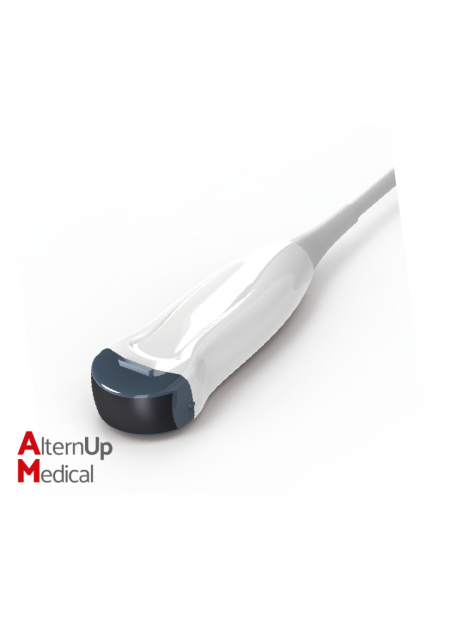

The SonoBook9 supports 27 kinds of probes and covers 1.5 MHz-23 MHz frequency range. It is supplied with a L7-V linear probe and a P2-V phased array probe.
Applications: Cardiovascular, Radiology, Internal Medicine, Small Parts, General Imaging, Vascular, Intensive care, Emergency, MSK, ICU
Worldwide Delivery
After Sales Service Guaranteed
Secured Payment
Chison SonoBook9 Portable Ultrasound
2 years Warranty
Small inside - Huge outside

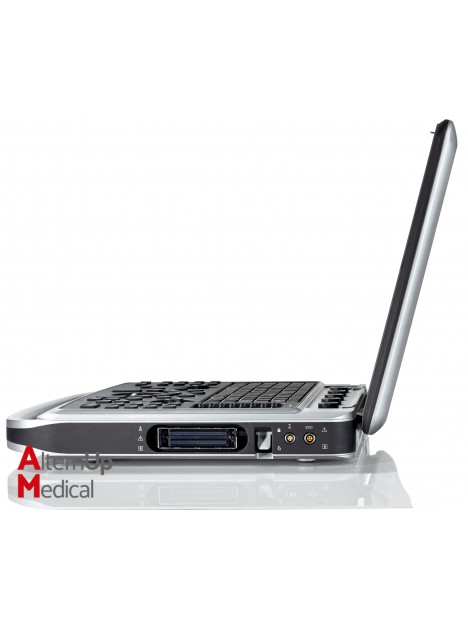

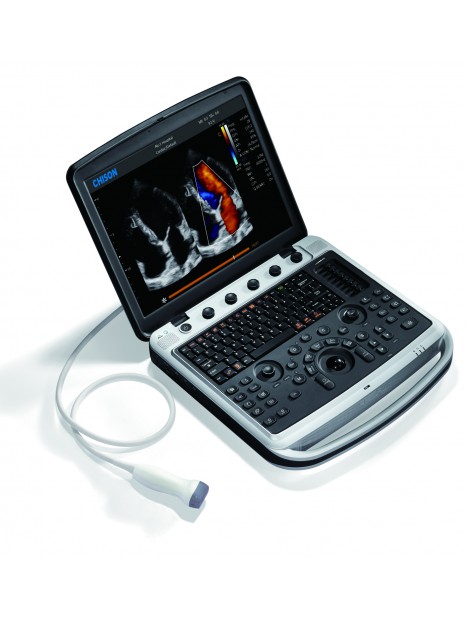

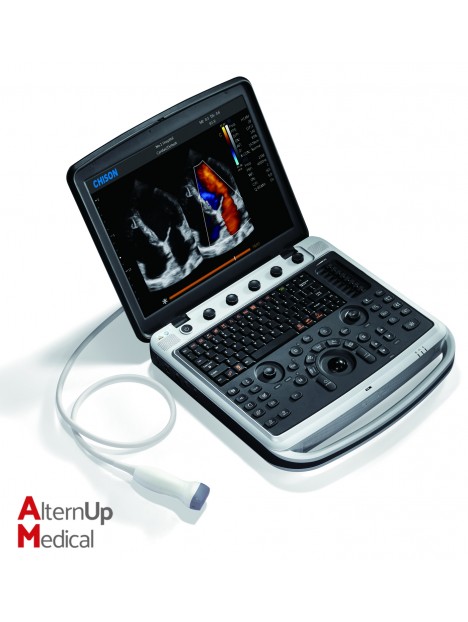

The Chison SonoBook9 portable ultrasound system is an intuitive compact system that can respond instantly between different modes. Ultra-light (< 5.5 kg-12 lbs) and ultra-slim, the ultrasound can detect very slow velocity (<2 cm/s) on tiny vessels land also not miss the high velocity (> 40 m/s) on cardiac. Versatile, it can image superficial tissues within 2 mm and achieve more than 30 cm of depth clearly on a 250 lbs difficult patient.
The SonoBook9 supports 27 kinds of probes and covers 1.5 MHz-23 MHz frequency range.
Applications: Cardiovascular, Radiology, Internal Medicine, Small Parts, General Imaging, Vascular, Intensive care, Emergency, MSK, ICU
Standard Configurations:
- Main unit with 15" high resolution LED monitor
- 128 GB SSD, 3 built-in USB ports

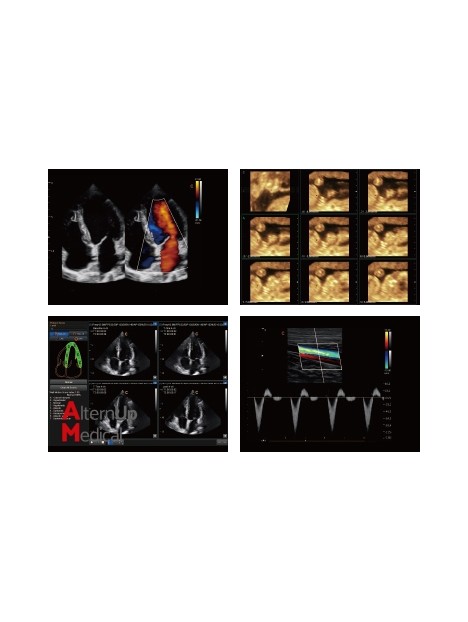

- B, 2B, 4B, B/M, B/BC, CFM, PW, Power Doppler/Directionnal PD, Instant Triplex, Duplex, Quadplex, Trapezoidal, Chroma B&M&PW
- B, 2B, 4B, B/M, B/BC, CFM, PW, Power Doppler/Directionnal PD, Instant Triplex, Duplex, Quadplex, Trapezoidal, Chroma B&M&PW
- Automatic PW trace and measurement in real time
- Super Image Module : FHI, Multiple Compound Imaging, SRA (Speckle Reduction Algorithm), X-contrast, Q-beam, Q-flow
- Auto IMT
- Q-Image
- Auto-ambient Adjustment
- Measurement & calculation software packages : General, OB&GYN, Cardiac
- Auto-ambient Adjustment
- Measurement & calculation software packages : General, OB&GYN, Cardiac
- Extended Cardiac Package: ECG Software, CW, Free Steering M, Color M, TDI

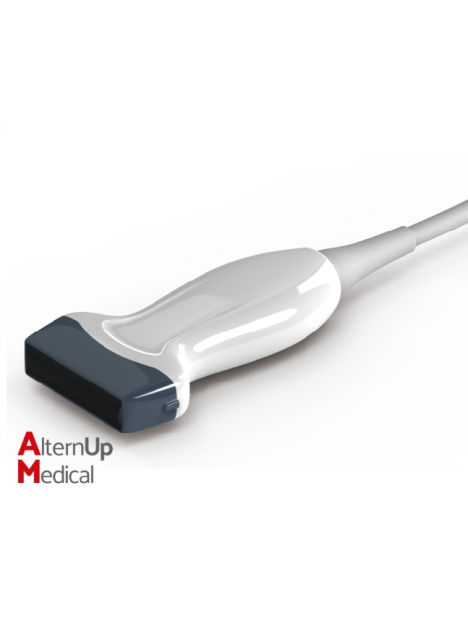

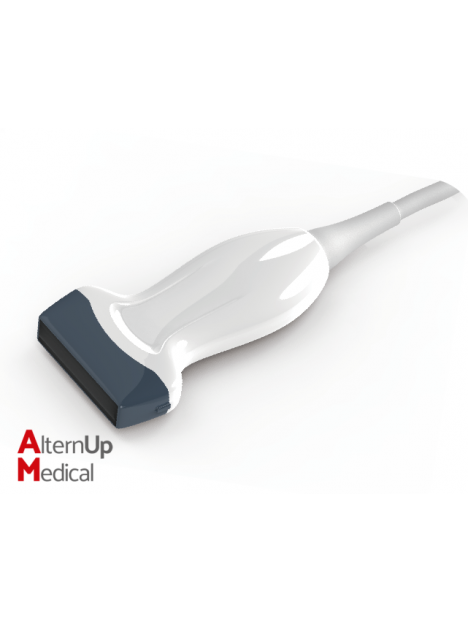

- Linear probe - L12-V
- Phased array probe - P2-V (adult)
- Phased array probe - P2-V (adult)
Options:
- Pencil probe - CW2-V
- Linear probe - L12-V, L8M5-V, L10i-V, L18-V or L12b-V
- Convex probe - C3-V
- TEE probe - T5-V (adult)
- Micro-convex probe - MC6-V or MC3-V
- Phased array probe - P5-V (pediatric)

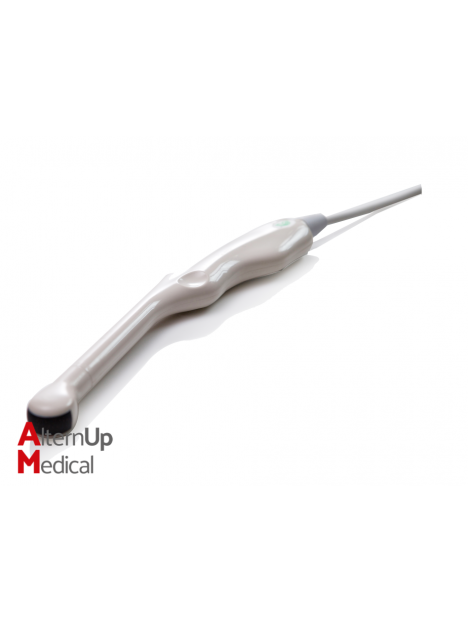

- Trans-vaginal probe - E6-V or E7W-V

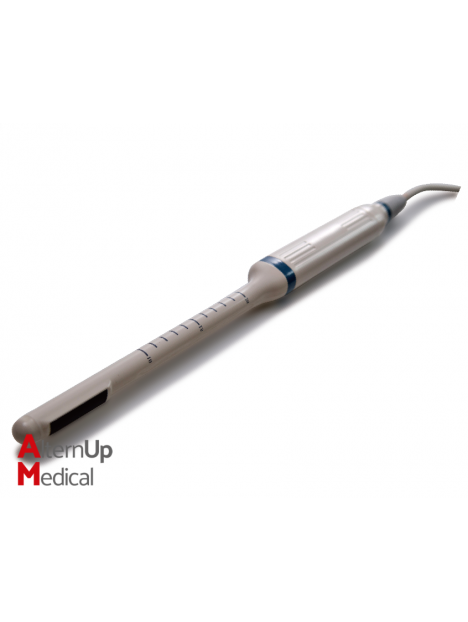

- Linear rectal probe - R7-V
- Volume probe - VC4-V
- Pencil probe - CW2-V
- Linear probe - L12-V, L8M5-V, L10i-V, L18-V or L12b-V
- Convex probe - C3-V
- TEE probe - T5-V (adult)
- Micro-convex probe - MC6-V or MC3-V
- Phased array probe - P5-V (pediatric)
- Trans-vaginal probe - E6-V or E7W-V
- Linear rectal probe - R7-V
- Volume probe - VC4-V
- SONODocking
- Trolley - TR-20
- SonoTriple Connector
- Wifi Module
- Carrying Case - BG-20
- Battery SONOBAT
- Biopsy kit for C3-V - BC04-A
- Biopsy kit for MC3-V - BC06-A
- Carrying Case - BG-20
- Battery SONOBAT
- Biopsy kit for C3-V - BC04-A
- Biopsy kit for MC3-V - BC06-A
