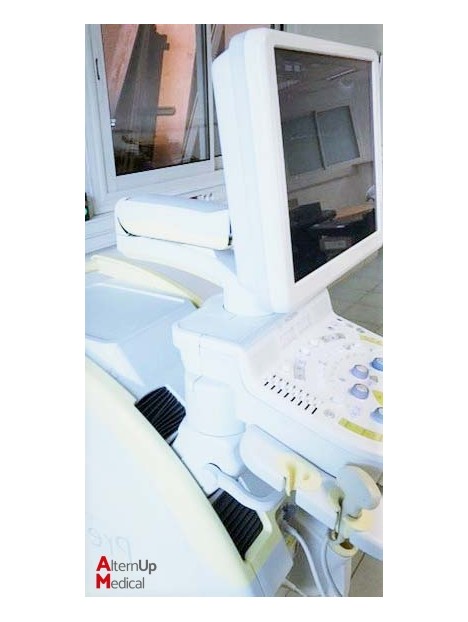

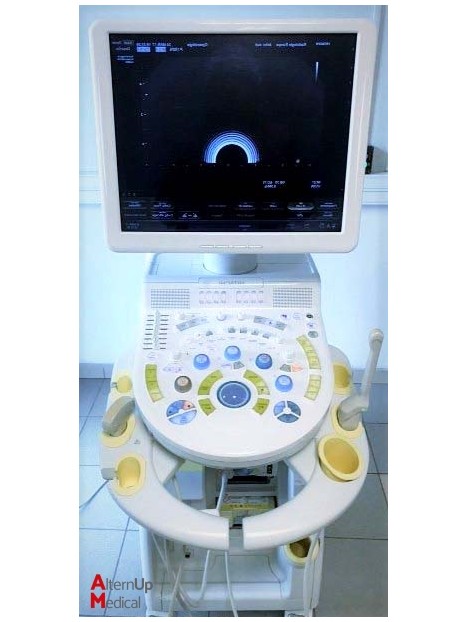

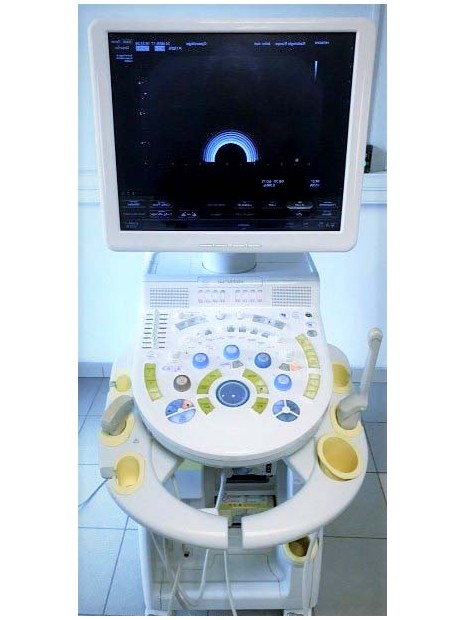

Hitachi HI-Vision Preirus Ultrasound

Used Hitachi HI-Vision Preirus Ultrasound

Year 2009

Applications: OB/GYN, vascular and 4D

This ultrasound is supplied with:

- 1 EUP C-532 Convex probe (8-4Mhz)

 - 1 EUP C-715 Convex probe (5-1Mhz)

- 1 EUP V53W Transvaginal probe (8-4Mhz)

- 1 EUP CV524 4D Convex probe (6-3 Mhz)

- 1  L74M Linear probe 50 mm (13-5 Mhz)

Technical Specifications:

Clinical Applications
Abdominal
Paediatrics/Neonatal transfontanelle
Small parts (breast, thyroid, testes, etc)
Musculoskeletal
Obstetrics/Gynecology
Gastroenterology
Urology
Rectal
Adult and paediatric cardiology (as option) including transoesophageal
Vascular
Transcranial
Interventional Ultrasound
Intraoperative

Advanced Imaging Capabilities
HI VISION imaging:
-Wideband Pulse Inversion Tissue Harmonic Imaging
-High definition dynamic Tissue Harmonic Imaging
-HI Com: real-time image compounding
-HI Rez+ : real-time tissue adaptive filter
-Coded Imaging
-HI Zoom
HI Support B and FFT auto-optimisation
dynamic Contrast Harmonic Imaging (dCHI)
Tissue Doppler Imaging (TDI) Mode
Panoramic Imaging (WideView)
Real-time Tissue Elastography (RTE)
Real-time Virtual Sonography (RVS)
3D and 4D volume imaging
Real-time Bi-Plane Imaging (RTBi)
Picture in Picture (PiP)
Dual Gate Doppler

Advanced Measurement Package

% WT measurement
Colour Tissue Tracking
IMT measurement
M-mode navigation
Real-time Doppler AutoTrace

Special Features
Unique movement of operator console and 19” digital LCD in a rotational arc
Sideways rotation of operator console through 55º
Graphical User Interface incorporating Smart Touch panels, Smart Tab menus, Image Thumbnails
Independent swivel/locks on all four wheels
Waterproof remote control operation
Voice-activated Bluetooth operation
Digital storage:
-Hard disk, DVD-RAM, DVD-R, USB memory device and USB HDD (Up to 5 ports)
-External PC or Mac via LAN Ethernet 100
Image Format:
-BMP, TIFF, JPEG, DICOM
Cineloop Format :
-AVI, DICOM JPEG, up to 4 hours continuous recording in MPEG2 format
DICOM 3:
-Store, Print, Worklist, Query/Retrieve, Structured Report (OB, Cardiology, Vascular)

Power Requirements
Power supply: • AC 220 – 240 V (+/- 10%)
Power consumption: • 1.5 kVA
Dimensions: • 450 mm (width) x 900-1110 mm (depth) x 1350-1550 mm (height)

Standards
Conforms to ISO 9001: design, fabrication, distribution
Conforms to ISO 14001: environmental protection
