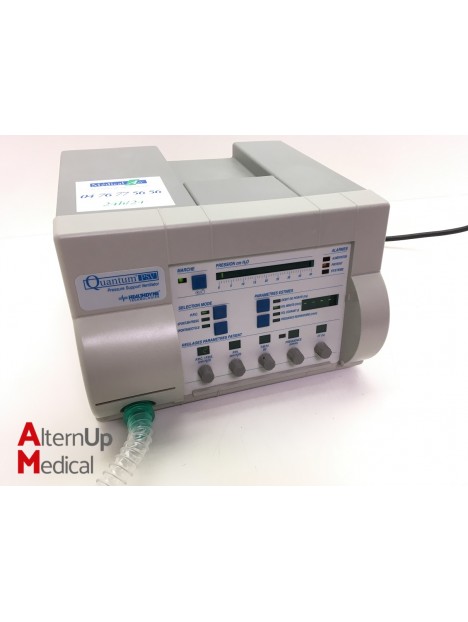

HealthDynes Quantum PSV 7700-01 Respirator

Reference 11032003

Condition

€1,100.00 Tax excluded

Available

Used HealthDynes Quantum PSV 7700-01 Respirator

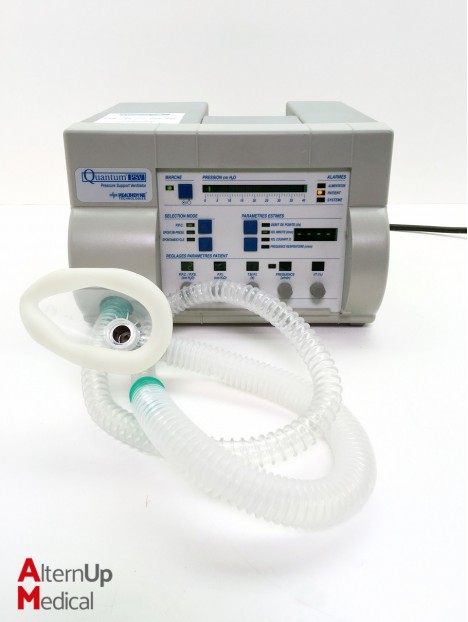

Supplied with breathing circuit and face mask

Fan pressure support Respironics Quantum provides either a CPAP, BiPAP or BiPAP spontaneous / timed therapy.

Hello, our team is not online at the moment. We invite you to send us your request via our contact section. It will be processed as soon as possible.

Worldwide Delivery

After Sales Service Guaranteed

Secured Payment

Used HealthDynes Quantum PSV 7700-01 Respirator

Supplied with breathing circuit and face mask

Fan pressure support Respironics Quantum provides either a CPAP, BiPAP or BiPAP spontaneous / timed therapy. As the unit Respironics S / T, the Quantum is used to help keep the airway open and provide ventilation, and detects respiratory effort and provides levels of inspiratory expiratory pressure or prescribed by a doctor or respiratory therapist.

Specifications:
• CPAP / EPAP pressure range: 2-25 cm H20
• IPAP range 2-30 cm H20
• pressure control Resolution: 1 cm H20
• Pressure accuracy: ± 0.7 measured at 150 LPM
• Speed Control Range: 4-40 BPM
• Respiration rate accuracy: 1 BPM
• Flow trigger inspiration: 0.25 liters per second
• Trigger flow, expiration: The maximum flow x 0.75
• minimum expiration time: 500 ms
• minimum inspiration time: 200 ms
• Maximum time for inspiration 3 seconds
• Limit flow: 150 LPM
