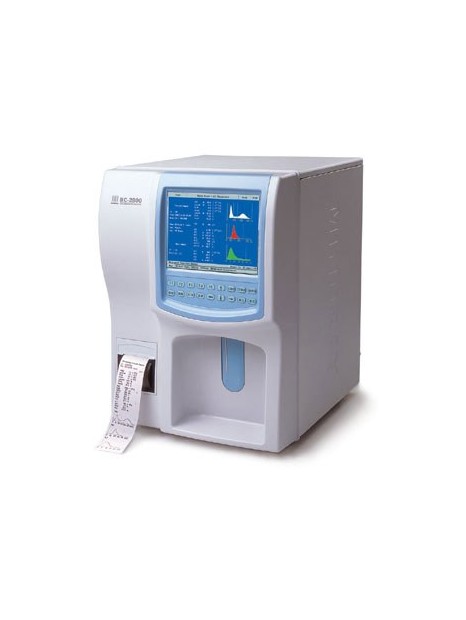

MINDRAY BC 2800 Auto Hematology Analyzer

Blood cell count (automated hematology) Model BC 2800 fully automatic hematology and economic differentiation for 03 subpopulations of WBC, 19 parameters + 03 histograms, 30 samples per hour, data storage of 10,000 samples + Histograms.

      * Display on LCD monitor to ?? color.

      * Built-in thermal printer.

      * Technical Specifications of counter cells

        * Parameters: WBC, Lymph #, Mid #, Gran #, Lymph%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT + Histogram: WBC, RBC, PLT

        * Principles of counter cells: Cell Counting thermal resistance

          * Photometric measurement without kyanite for measuring HGB.

        * Performance counter cells: Parameter Linearity, Accuracy, WBC (10exp9 / L), 0.0-99.9, 3.0 (4.0-15.0), RBC (10exp12 / L), 0.2-99.9, 2 (3.00-6.50)
HGB (g / L), 0-300, 2 (100-180), MCV (fL), 1 (70.0-100.0), PLT (109 / L), 0-999, 5 (200-500)
         * Sample volume: 1-Prediluted: 20uL, 2 Full Blood: 13uL

        * Diameter: 80um

        * Throughput: 30 samples per hour

        * Display: Colour LCD

          * Resolution: 640 x 480

        * Menu: Counting, Review on quality control, setup, service, calibration, power off

        * Input / Output: RS232x2 parallel printer output optional interface for keyboard

        * Printing counter cells: thermal printer 50 mm wide

          * Multiple print sizes available

        * Environment counter cells:

          * Temperature: 15 "C-30" C

          * Humidity: 30% -85%

        * Power supply: 100 - 240V ~ 50/60 Hz

        * Dimension: 322 x 437 x 386 cm

        * Weight: 17.9 kg
