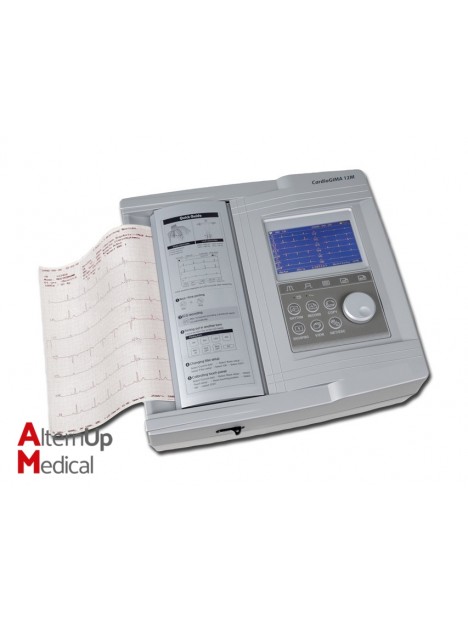

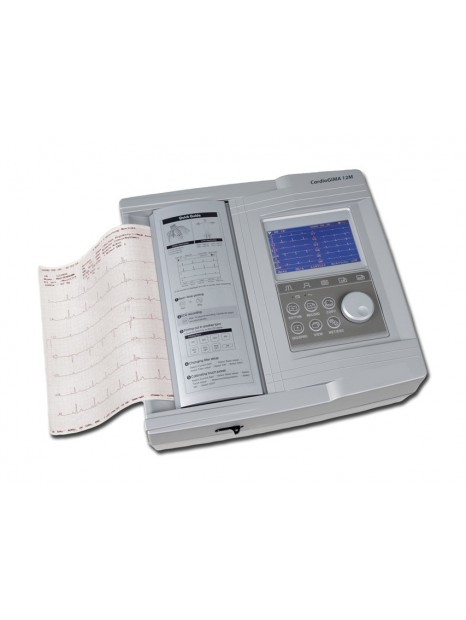

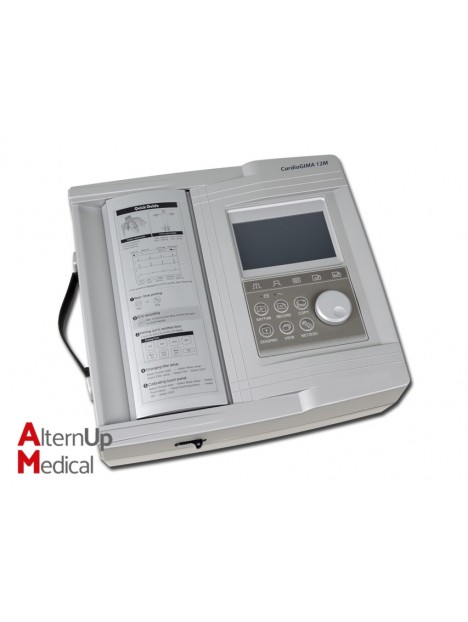

12M ECG 3/6/12 Channels

The simultaneous record of 12 channels has a high diagnostic value, all the 12 channels are illustrated at the same time. Their design is maximized for the user's convenience (A4 size paper, one body type).

Main Features:

• 12 leads simultaneous l0-second resting ECG
• Interpretation in only 5 seconds
• Multilanguage internal software
• Printing in (english, spanish, french, german, russian, italian, chinese and turkish)
• Wide Paper Printing (A4 size thermal paper, fax paper is OK)
• Combined output of all relevant curves, patient data, date, time and instrument settings

PC connection:
PC interface with RS 232 port Via LAN-software included. Submits already recorded ECG signal to other specialist for evaluation (only a modem is needed)

ECG filing system “ECG Plus”:
A fully configured PC-based filing system enables to record ECG signals, display them in real time, print and record them.

Rechargeable batteries:
Available (optional) with 1 hour capacity in normal use (about 100 ECG printouts)

Technical Specifications:

•  ECG Leads: 3-6-12 channel illustration of ECG signals in continuous recording or 10 sec. recording with interpretation.
• Dimension: 296 x 305.5 x 92.5 mm
• Approx 3 kg
• Recording channel: 3, 6, 12 channel and 1 channel (60 sec.)
• Sensitivity: 5, 10, 20, auto (I~aVF: 10, W1~V6: 5) mm/mV
• Printing speed: 12,5; 25; 50 mm/s
• Filters:
  - AC (50/60 Hz, -20 dB or better)
  - Muscle (25~35 Hz, -3 dB or better)
  - Low pass filter (off, 40 Hz, 100 Hz, 150 Hz)
• Display: 2x16 character LCD display
• LCD display: Sensitivity, speed filter status, HR, Printing form, rythm lead
• LED indicator: Signal quality, power source, battery
• Keyboard: Membrane keyboard, alphanumeric and symbol available
• Patient data: ID, name, age, sex, height, weight
• Basic measurement: Heart rate, PR, QRS, QT/QTc, P-R-T axis
• Recorder: Thermal print head, thermal paper roll
  - Report papers: width: A4: 210 mm or 8.5", lenght A4: 3 00 mm or 11"
• Resolution: vertical: 8 dots/mm, horizontal: 16 dots/mm
• Electrical:
  - Internal noise: 20µV (p-p) max
  - Input circuit: floating input
  - Isolated and defibrillation protected
  - DC offset voltage: = ± 500 mV
  - Patient leakage current: < 10µA
  - Frequency response 0,05~150 Hz
• Power:
  - Power supply: AC or built-in battery (options)
  - Power requirement: 100-240 Vac, 50/60 Hz, 1.0-0.5 A
  - Power consumption: 60 W max
• Battery capacity: 1 hour of normal use (approx. 100 automatic ECG printouts)

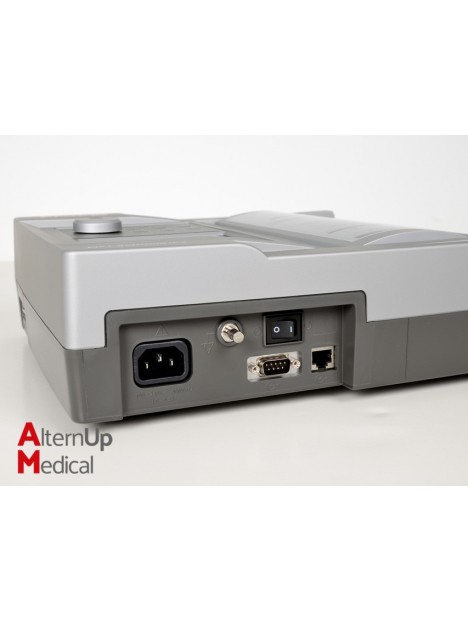

• Communication: PC Connection with RS-232 interface and lan
• Safety: Class I, Type BF
• Conformity: CE, CSA

Standard Accessories:

• 1 PC software
• 1 LAN cable
• 1 Patient cable - 10 leads
• 4 ECG clip-on electrodes
• 6 Chest electrodes, suction for adult
• 1 ECG electrode cream (70 g)
• 1 Power cable
• 1 Recording paper rolls
• 1 Operation manual
