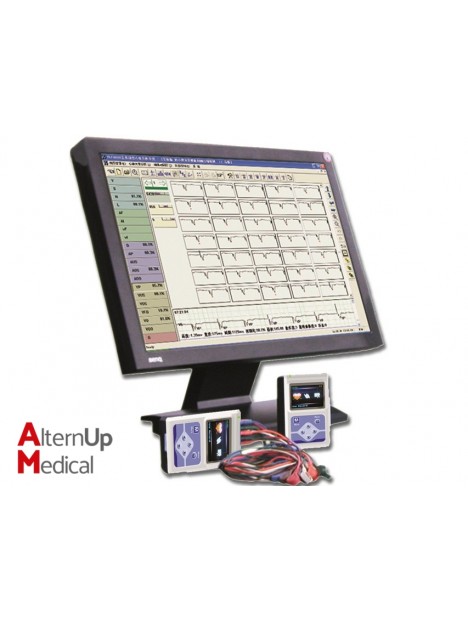

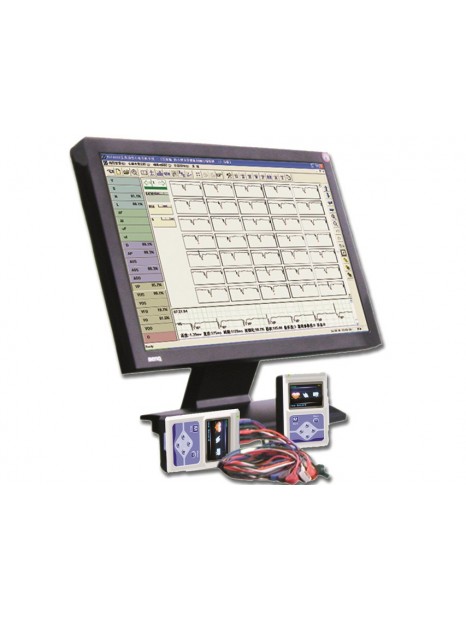

ECG Holter System with Software

The ECG Holter system includes ECG recorder and software connectable to a computer system or laser printer. The recorder has built-in flash storage media to increase memory capacity. The sampling rate of 1,000 sampling/sec has improved the quality of waveform.

Accuracy of the system is ensured by AHA and MIT data.

Features:
- windows software interface
- quick and accurate analyzing system
- special editing system of R point
- perfect analysis function of ST segment
- analysis function of T wave of all channels and T wave trend graph
- review of ECG trend graph
- analysis system of HR variability, providing regular SDNN, SDANN, RMSSD, LF, HF, time domain and frequency domain
- QT analysis and QT trend graph
- acquire pacing ECG directly without separate channel; Also have the functions of VCG, VLP, TVCG, HRT, TWA. (option)

Recorder:
- 12 channel Synchronized ECG Acquisition
- small ECG recorder with OLED colour screen to display real time ECG waveform and review storage data.
- capacity up to 2G
- selectable sampling rate, 200, 500, 1000 sampling/sec
- sampling accuracy: 12 bit
- built-in FLASH storage media, to prevent the flash card from damage due to repeated insertion and pull out
- USB interface
- operating system: Windows 98, 2000, XP, 7

Technical Specifications:

• Scale voltage: 1mV±5%
• Standard sensitivity:10mm/mV±5%
• Noise level: =30µV
• CMRR: =60dB
• Frequency response: 10Hz as benchmark, 0.5Hz~55Hz; -3dB
• Time constant: >3.2s
• Scan speed: 25mm/s±5%
• Enduring polarization voltage: ±300mV
• Least measurence signal: 50µV p-p
• Interference between channels: scan track deflection (result from interference between channels) <0.5mm
• Product safety type: type B (internally powered)
• Size: 111 (L) x60 (W) x25 (H) mm
• Net weight: 105g (without battery)

Standard Accessories:

• 1 Holter recorder
• 1 CD with software
• 10 leads patient cable
• 10 disposable ECG sensor
• 1 pouch for hanging recorder
• 1 USB cable for data downloads
• 1 USB security key
• Instruction Manual
