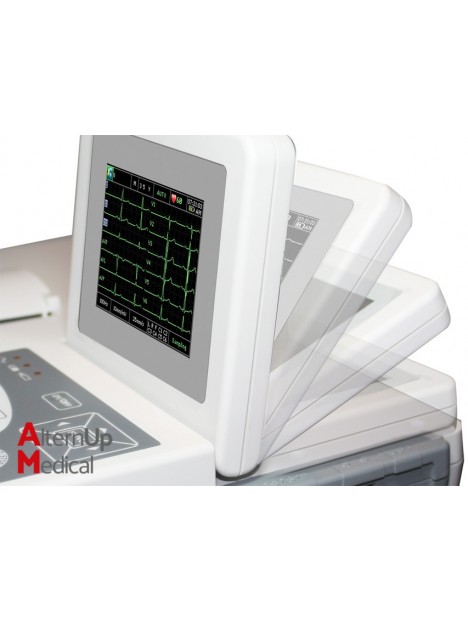

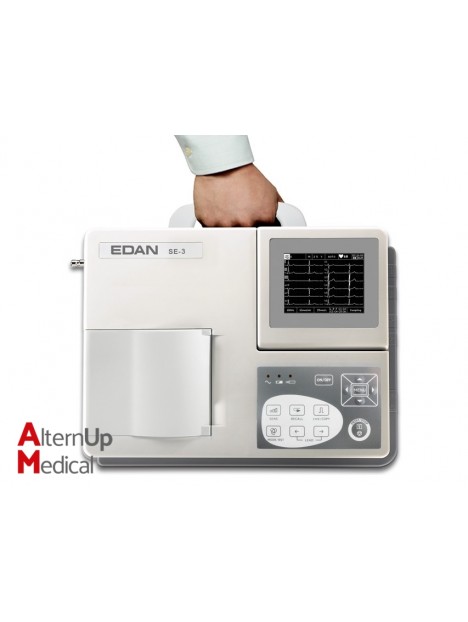

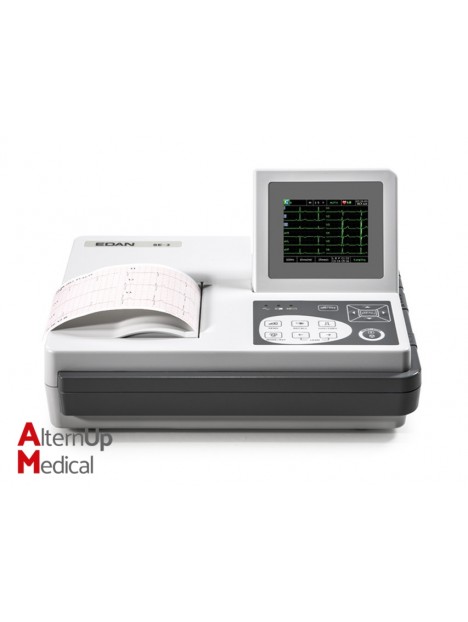

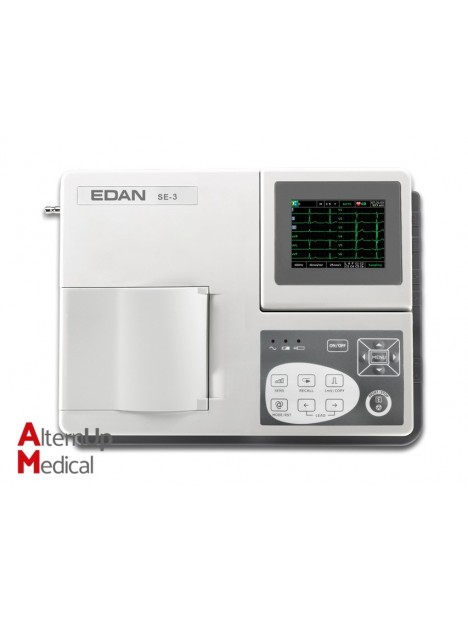

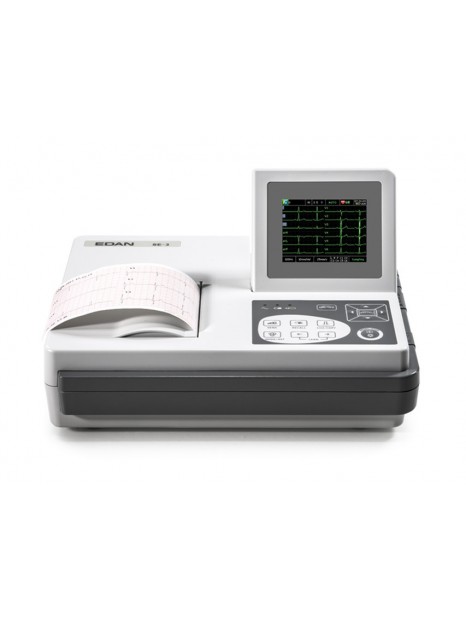

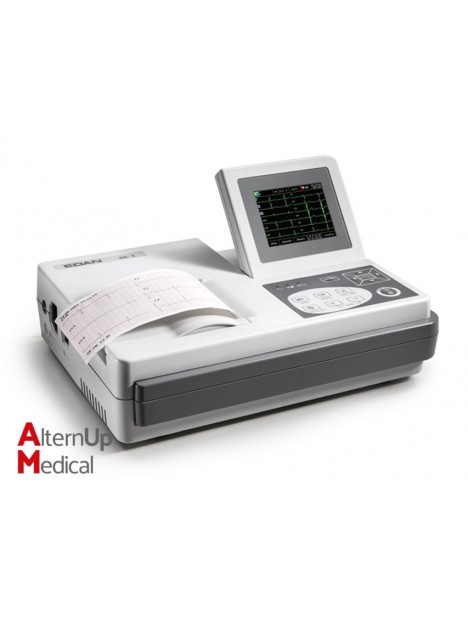

Edan SE-3 Color Portable ECG with Monitor + Software

Features:

• Foldable LCD screen, vivid waveform display
• 12 leads simultaneous acquisition
• Built-in high-resolution thermal printer
• Built-in rechargeable Li-ion battery, AC/DC power supply
• Automatic ECG measurement and interpretation
• Complete digital filtering, resisting baseline drift, AC and EMG interference
• Automatic baseline adjustement
• Auto/manual work mode
• Lead-off detection and alarm
• Three printing formats (auto, manual and rhythm) selectable
• 12 leads and printing on normal A4 paper by external ink-jet printer
• Large patient data storage: 144 ECGs, which can be enlarged by USB flash disk
• Communication interface: Ethernet/RS232/USB

The Edan SE-3 ECG includes ECG reader software:

• Compatible Windows, XP, VIsta, 7
• Multiforlats report: XML/SCP/DICOM/PDF/JPG/BMP/TIF/PNG
• Possibility of two-way communication with ECG Unit

Technical Specifications:

• Input Circuit: floating input circuit, protection from defibrillation and pace maker
• Lead : Standard 12 leads
• Acquisition mode:12 leads simultaneously
• Time constant: > 3.2 s
• Sensitivity: 2.5, 5, 10, 20, mm/mV
• Input impedance: 50 M?
• Anti baseline drift: Automatic
• Filter:
  - EMG Filter 25Hz/35Hz/40Hz/off
  - DFT Fliter 0.05/0.15/0.25/0.5Hz
  - Low pass filter 150Hz/100Hz/75Hz
  - AC Filter 50 Hz/60Hz
• CMRR: >110dB
• Recording mode: Auto/Manual/Rhythm
• Rhythm lead: Any lead selectable
• Safety standard: IEC I/CF
• Power supply:
  - AC: 100V-115 V/220V-240V, 50/60 Hz
  - Rechargeable Li-ion battery 14.8 V
  - More than 3 hours continuously operation under battery supply
• Recorder: Thermal printer
• Record paper: 80 mm x 20 m
• Paper speed:5mm/s, 6.25 mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50 mm/s
• Dimension: 288 mm x 210 mm x 70 mm
• Weight:2.5 kg (with battery)
• Display:320 x 240 pixels LCD (Wide screen)
• Display language selectable Eng - Ita - Spa - Fra - Russian
• Interface: Ethernet, RS232, USB

Standard Accesssories:

• Patient cable
• 1 bottle of gel
• 1 roll of paper
• 4 limb electrodes
• 6 chest limb electrodes
• Battery
• Manual
• Rapid guide: GB, FR, ES, IT
