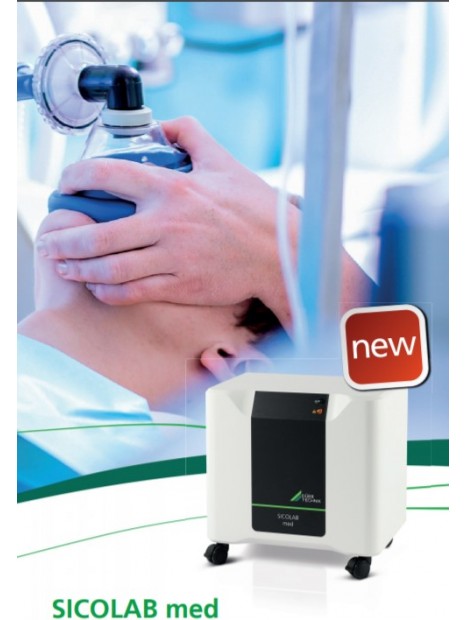

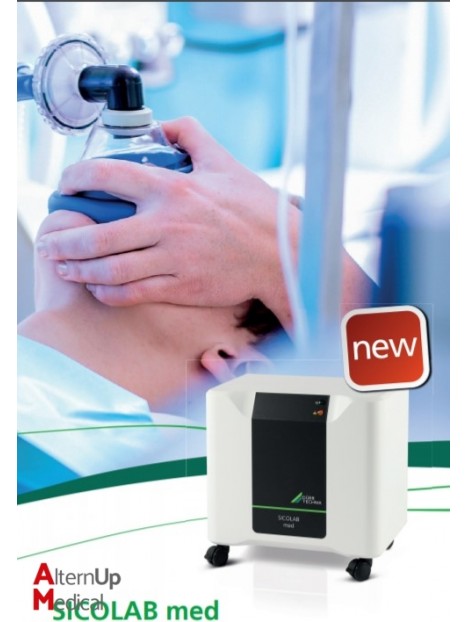

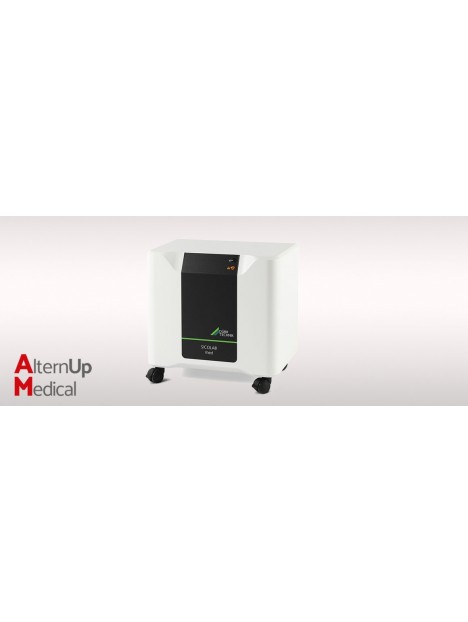

Durr Technik SICOLAB med Compressed Air Supply for Respirator
N-SICOLAB
New product
Durr Technik SICOLAB med Compressed Air Supply for Respirator
As especially quiet oil-free compressor station for the medical compressed air supply, SICOLAB med supplies dry and clean air thanks to the integrated membrane dryer and a sub-microfilter of 0,3 µm.
Worldwide Delivery
After Sales Service Guaranteed
Secured Payment
Durr Technik SICOLAB med Compressed Air Supply for Respirator
As especially quiet oil-free compressor station for the medical compressed air supply, SICOLAB med supplies dry and clean air thanks to the integrated membrane dryer and a sub-microfilter of 0,3 µm.
Medical devices must meet certain requirements in order to ensure patient safety and product quality. Our SICOLAB med product has the necessary certification as a Class IIb medical device according to the 93/42/EEC directive. SICOLAB med provides the required compressed air for the supply of a ventilator and is suitable for the artificial respiration of patients. It can be used as an air compressor for ventilators either as a spare device in standby mode or directly as the main air supply for a ventilator.
The soundproof compressor station SICOLAB med, being the latest generation of the popular SICOLAB product family, meets the highest requirements:
- Flow rate of 30 l/min at 3 bar
- Compressed air tank of 3 litres
- Sound pressure level of only 47 dB(A)
SICOLAB med is particularly user-friendly. Automatic condensate evaporation avoids the need for manual condensate draining, while the intake pressure control ensures smooth, energy-efficient operation.
Choose from different versions of SICOLAB med for different supply voltages:
220-240V, 220-230V, 115-120V, 127V, 110V, 100V
Your advantages at a glance:
- Very quiet with 47 dB(A)
- Flow rate of 30 l/min at 3 bar
- Space-saving thanks to compact dimensions
- Dry air through an integrated membrane dryer
- High degree of filtration thanks to 3 filtration steps
- Automatic condensate drain
N-SICOLAB
Specific References
New product
- Flow at 3 bar: 30 l/min
- Nominal Pressure PN: 3 bar
- Safety pressure PS: 8 bar
- Operating pressure: 4,2 (+0,5)bar
- Switch-on/off pressure: 2,7 ± 0,2 to 3,2 ± 0,2 bar
- Dew point reduction:
- 5°C at ambient temperature at ≥ 30 l/min and max. ambient temperature of 40°C
- 15°C at ambient temperature at ≥ 15 l/min and max. ambient temperature of 40°C
- Tank size: 3 l
- Filtration: < 0,3 µm
- Operating mode: S1
- Ambient conditions: 5°C up to +40°C
- Noise level at PN: 47 dB(A)
- Weight: 40 kg
- Dimensions L x W x H: 348 x 515 x 440 mm
