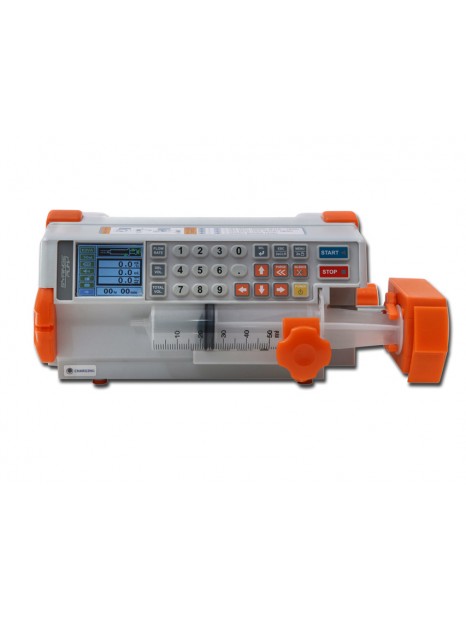

SP-8800 Syringe Pump

N-POM35205

New product

SP-8800 provides easy syringe installing through one-touch method by slider hook, simple and easy setup process with its numerical silicon keypad. Color LCD displays infusion information dramatically shortcut key manages easy approach for frequent functions. K.V.O. rate, purge rate, bolus and anti bolus can be setup as operating application. Supplied with battery.



Suitable for Veterinary

More details

More info

SP-8800 provides easy syringe installing through one-touch method by slider hook, simple and easy setup process with its numerical silicon keypad. Color LCD displays infusion information dramatically shortcut key manages easy approach for frequent functions. K.V.O. rate, purge rate, bolus and anti bolus can be setup as operating application. Supplied with battery.

• Flexible flow volume setting.
• Full program dosage feature (optional): it automatically calculates flow rate by patient's weight, injection's mass and melting.
• Keep Vein Open (K. V. O.) feature: When reached to the preset value, it converts to low flow speed of 0.1ml/h automatically to prevent flow route clog due to blood coagulation.
• Standard compatibility with 5 major brands of syringes: Syringe brand setting feature enables you 5 choose, from following syringe brands: BD, TERUMO, PENTAFERTE, RAYS, KOVA.

Technical specifications:
• Flow volume setting range:
- Syringe 10ml : 0.1-300ml/h
- Syringe 20ml : 0.1-400ml/h
- Syringe 30ml : 0.1-500ml/h
- Syringe 50ml : 0.1-1200ml/h
• Flow volume error margin: ±3%
• Infusion limit volume range: 0.1~999.9ml (0.1 ml infusion interval)
• Total estimated volume range: 0.1~999.9ml (0.1 ml infusion interval)
• K.V.O rate (Vein maintaing function): 1 ~ 10 ml/h adjustable
• Size: 220 x 130 x 108 mm
• Weight: 2 kg
• Rapid flow volume (Purge): 0.1 ~ 1200 ml/h adjustable
• Bolus 0.1 ~ 1200 ml/h, 0.1 ~ 1000 ml adjustable
• Nurse call DC12V, 1A
• Alarm features: Occlusion, K.V.O. (infusion completion), standby, near empty, low battery, device malfunction (CPU error), clamp/handle lever/slider disengaged, syringe disengaged.
• Special features: Keypad lock, retain memory, remaining time, alarm repeat, open system, K.V.O., purge, bolus, occ. level, history call-back.
• Power:
- AC 230V, 50/60Hz and DC9.6V inner source adapter
- DC 24V / 1A Available on request 110V / 60Hz
• Maximum power consumption: 15VA
• Electric protection levels: Class II B, inner source device, CF type
• Waterproof level: IPX2
• Battery type: Ni-Cd
• Battery using time: 5 hrs. (when infusing 125 ml/h)
• Battery charging time: Minimum 6 hours
• Battery life: approx 6 months
