MRI AGASAN Hydraulic Patient Transport Table

Reference N-AGAH3065YVA

Condition

MRI Hydraulic Patient Transport Table

This table includes a hydraulic height adjustment.

These only slightly magnetic stainless steel stretchers are used as patient transport table in the field of magnetic resonance imaging (MRI, or MR).

MADE IN GERMANY - 3 YEAR WARRANTY

WhatsApp Chat

Worldwide Delivery

After Sales Service Guaranteed

Secured Payment

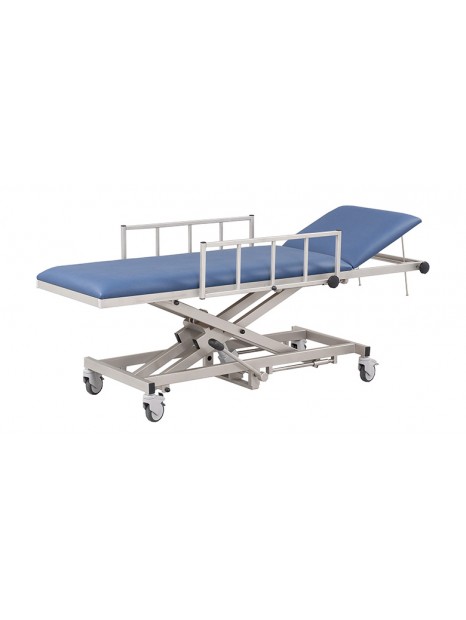

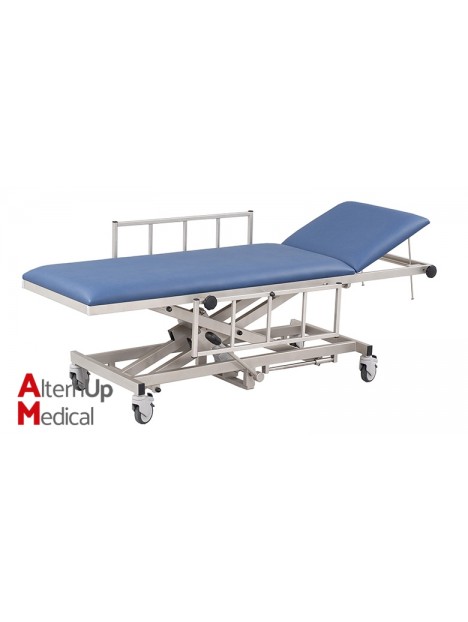

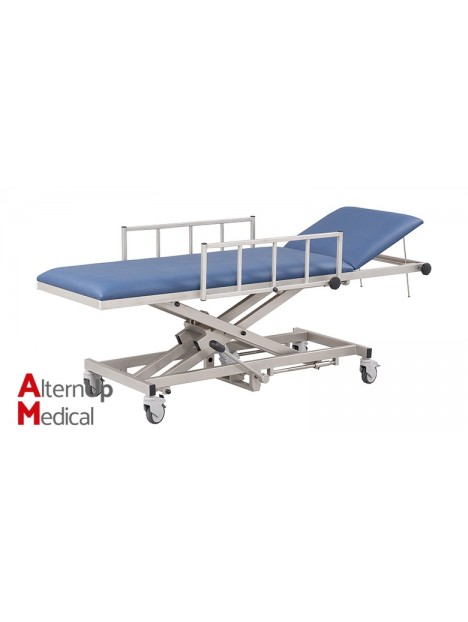

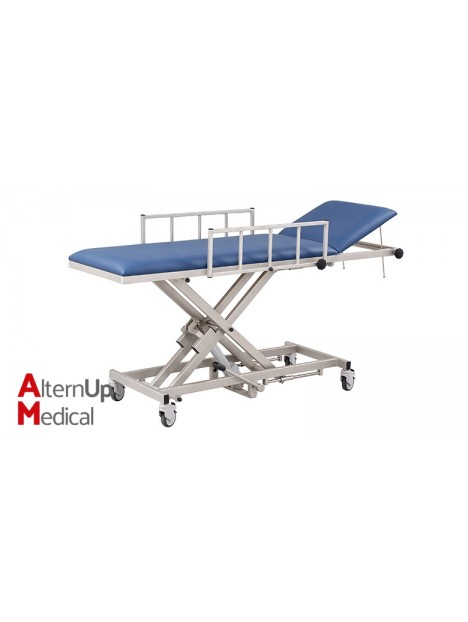

MRI Patient Transport Tables with Hydraulic Height Adjustment

Features :

• The steel frame of the MRI transport table with hydraulic height adjustment is made of stainless steel, with a low residual magnetism.

• The hydraulic height adjustment (620 - 980 mm) is done with a foot pump, which can be mounted on either side. A second foot pedal is available in option.

• This MRI patient transport table is equipped with four smooth multi-directional castors (Ø 100 mm), two of which are lockable. On the MRI table with side guards, all castors are equipped with a locking function.

• The headrest is continuously adjustable (up to +30°) and secured with clamping rod mechanism. The upholstery thickness is 64 mm.

• This hydraulic height-adjustable MRI table includes two side guards (each 800 x 250 mm, LxH). In order for this MRI table to be accessed from both sides, the side guards can be adjusted up or down with a simple rotation mechanism and locked in place with a sliding bolt.

• The height-adjustable MRI table has a standard tabletop widths of 650 mm. However, please take into consideration the overall width including the side guards. With side guards, this table has a width of approximately 795 mm

• The MRI-compatible patient transport table with hydraulic height adjustment may also be ordered without side guards. This table has a width of 650 mm.

Options :

• The standard castors are 100 mm in diameter. Larger castors, Ø 125 mm, are also available at extra charge. Please contact us for pricing information.

• A more economical alternative can be found in our MRI patient transport table without height adjustment (Ref : N-AHAAWL3065VA).

Accessories :

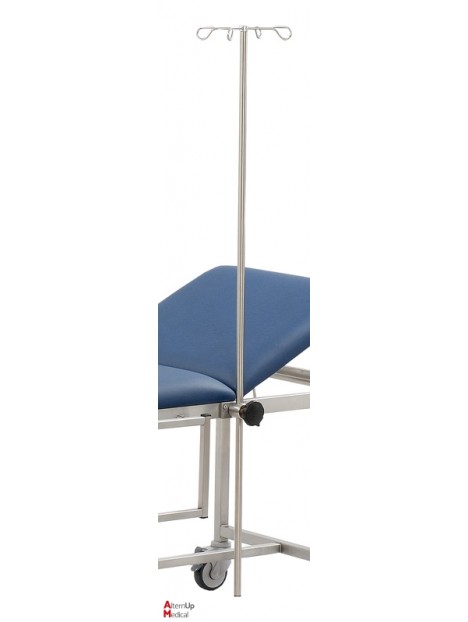

• The infusion pole (Article No. N-AGAINF1720VA) includes a bottle holder with four hooks and a fixing clamp. The clamp can be bolted on either side of the tabletop frame. Retrofitting is not possible.

• The paper roll holder for the 650 mm wide MRI table (Article No. N-AGAP3050A) or 800 mm wide MRI table (Article No. N-AGAP3070A) includes mounting brackets placed at the feet end on the underside of the tabletop. It may be retrofitted. The paper roll holder N-AGAP3070A is suitable for 59 cm wide paper rolls and (N-AGAP3050A) for 46 cm wide paper rolls.

Conditions of use :

The MRI patient transport table with hydraulic height adjustment can be used safely under the following conditions:

• Static magnetic field of maximum 3 Tesla or less,

• Additionally a spatial gradient of maximum 10,5 T/m or less,

• The table may not exceed the limit of 10,5 T/m with the head end side/foot end side in sliding in the direction of the magnet.
