SPIROLAB 7" Touch-screen Spirometer with SpO2
N-33520
New product
€3,300.00
Tax excluded
Available

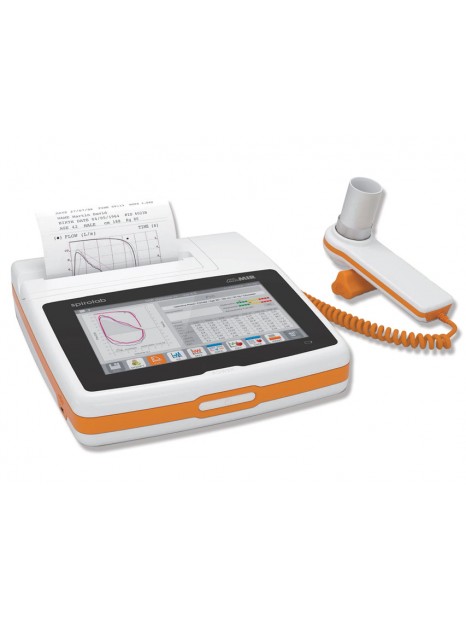

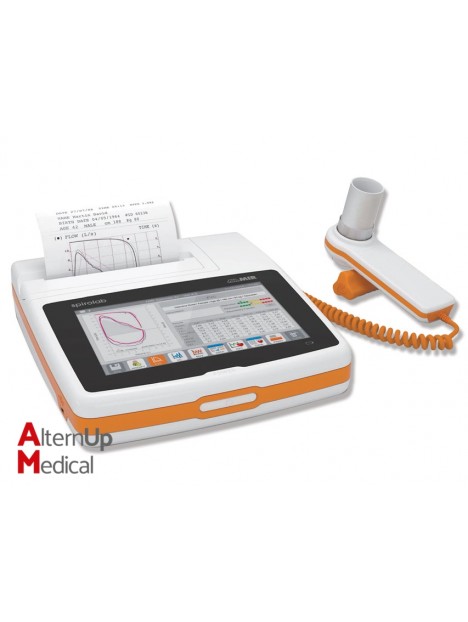

SPIROLAB® 7" Touch-screen Spirometer with SpO2
A fast, easy, durable spirometer.
Disposable mouthpiece and turbine that guarantee 100% hygiene and no risk of cross-contamination.
No calibration required.
For pediatric use, no adapter required.
Worldwide Delivery
After Sales Service Guaranteed
Secured Payment
SPIROLAB® 7" Touch-screen Spirometer with SpO2
A fast, easy, durable spirometer.
Features:
- FVC, VC, MVV, PRE/POST bronchodilator comparison with a wide choice of selectable parameters
- Long life rechargeable battery
- 7" colour touch screen
- Can connect to an external PostScript printer via USB
- 10,000 spirometric tests or 500 hours of oximetric recordings
- Real-time testing on PC through Bluetooth®.

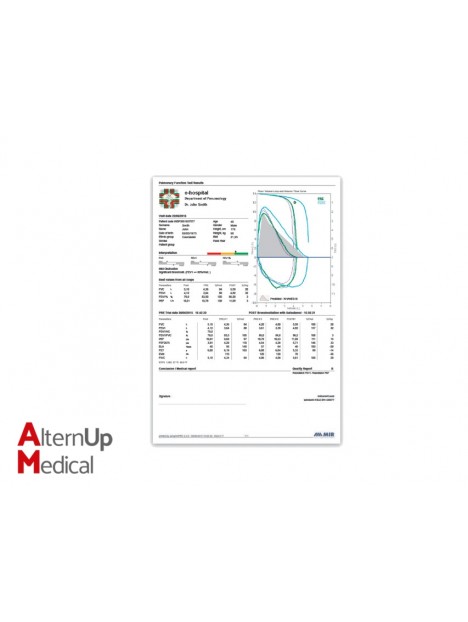

- Fast and silent black and white printer with customizable print format included
- Selectable software languages: GB, FR, IT, ES, DE, PT
Oximetry option: Reusable finger probe for adults and children.
Fast and user friendly: Each function can be activated by a simple touch.
FlowMIR® disposable turbine - complies with ATS/ERS standard: Totally disposable (mouthpiece, turbine) guarantees 100% hygiene, no cross contamination. No calibration required.
Suitable for children
Patented pediatric incentive directly on the screen.
No need of adaptor.
Dimensions: 220x210x51 mm (8,66x8,26x2“)
Weight: 1450 g (3,1lb) (battery pack included)
Made in Italy.

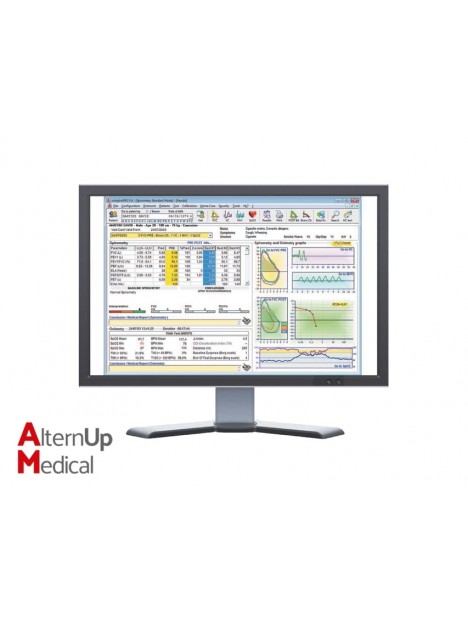

WinspiroPRO®
High perfomances PC software for spirometry and oximetry with free update.
Multilingual software: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, CN.
Standard Accessories:
- Battery charger
- Software WinspiroPRO®
- 1 roll thermal paper
- USB port and cable
- Reusable turbine
- SpO2 adult sensor
- Nose clip
- CD manual: GB, FR, IT, ES, DE, PT
- Carrying case
N-33520
Specific References
New product
Spirometry:
- Power supply: Rechargeable battery, approx. 10 hours autonomy
- Temperature sensor: semiconductor (0-45°C)
- Flow sensor: bi-directional digital turbine
- Flow range: ±16L/s ±5% or 200mL/s
- Volume accuracy: ±3% or 50mL
- Dynamic resistance: <0.5 cm H2O/L/s
- Connectivity: USB 2.0, Bluetooth® 2.1
- Display: 7” colour touch screen LCD, 800x480 resolution
- Mouthpieces: Ø 30 mm (1.18 inch)
- Electrical protection: Class II
- Norms: Electrical safety standard EN 60601-1 / Electromagnetic compatibility EN 60601-1-2
Spirometry parameters:
FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, Lung Age, Extrapolated Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/ FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).
Technical specifications - Oximetry:
- SpO2 range: 0-99%
- SpO2 accuracy: ± 2% between 70-99% SpO2
- Pulse Rate range: 18-300 BPM
- Pulse Rate accuracy: ± 2BPM or 2% whichever is greater
- Memory capacity: up to 500 hours oximetry
Oximetry parameters:
%SpO2 and Pulse Rate (Min, Max, Average), Test duration, Total SpO2 Events, T90% (SpO2 time =89%), T89% (SpO2 time =88%), T40 (Bradycardia duration with Pulse Rate <40 BPM), T120 (Tachycardia duration with Pulse Rate >120 BPM)
WINSPIROPRO® REQUIREMENTS:
Windows 2000, XP, Vista (32/64 bit), 7 (32/64 bit), 8 and 8.1 (32/64 bit), 10 (32/64 bit). RAM 512 MB
