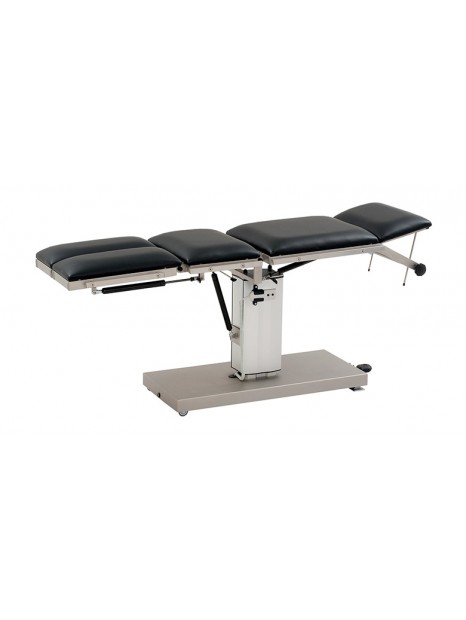

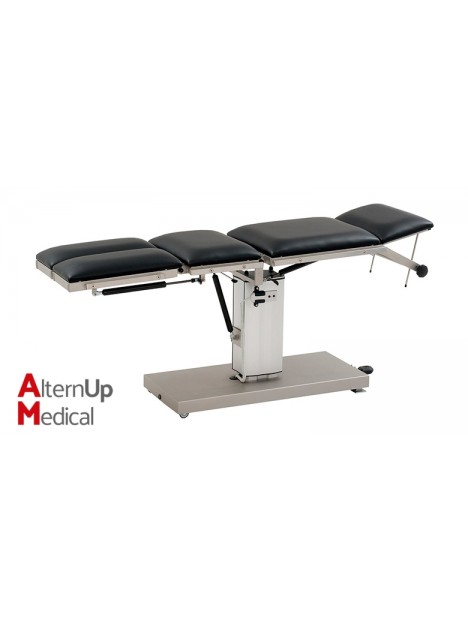

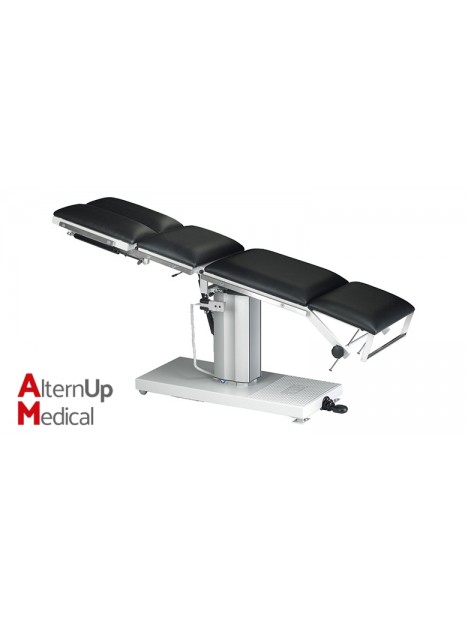

AGA POWER-MAT Multi-Function Table

The multi-functions table AGA-POWER-MAT stand out not only due to their functionality but also to their elegant anodized lifting column.

This multi-functions table with electric height adjustment have been designed for various applications and types of examination. It's therefore available with several equipment levels, components and accessories.

MANUFACTURED IN GERMANY - 3 YEAR WARRANTY

Hello, our team is not online at the moment. We invite you to send us your request via our contact section. It will be processed as soon as possible.

Worldwide Delivery

After Sales Service Guaranteed

Secured Payment

AGA POWER-MAT Multi-Functions Table

This operating table is available in two versions:

- Colour frame: reference MP-1050/5E

- Stainless steel: reference MP-3050/5E

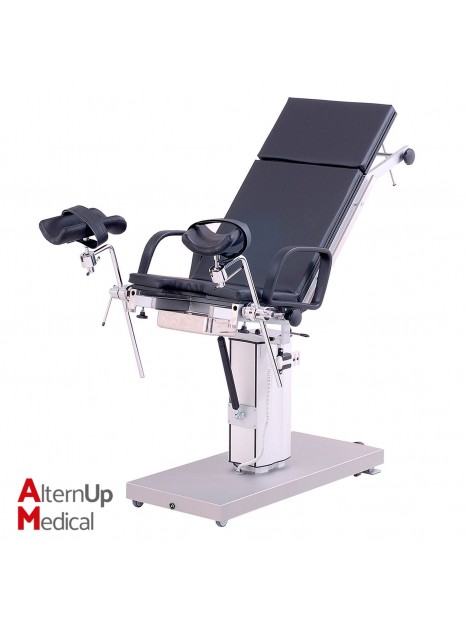

The POWER-MAT operating table is also available in gynecological version with the following combinations :

• Article No. MP-1050/5EGYN includes the operation table MP- 1050/5E with gynecological cutout, N-AGAMPPAL and N-AGAMPBTSA.

• Article No. MP-3050/5EGYN is similar to MP-1050/5EGYN, except for the glass bead blasted stainless steel frame and stainless steel base cover.

Features :

• The AGA-POWER-MAT comes with a hand switch to control the electric height adjustment. A foot switch is optionally available at extra charge (Article No. N-AGAFS2). Drive specifications: 230V, 50/60Hz, 0,8A, IP30, v=9mm/s, 3000N.

• The removable upholstered segments (thickness 65 mm) are made of soft polyurethane foam and covered with a black, electrically conductive synthetic leather (cotton/polyester mix and 100% PVC compound coating). Other colours of nonconductive synthetic leather upholstery are also available.

• The headrest is continuously adjustable (positive and negative) and secured with clamping rod locking mechanism.

• The continuous adjustment of the backrest is assisted by a gas pressure spring. The leg sections can be adjusted individually as needed. The adjustment of the two independently positionable leg plates (fold-down 90°) is also assisted by a gas pressure spring.

• The standard side rails on the outside frame of the backrest, seat and leg sections allow the use of accessories such as anesthesia pole, instrument table, side and shoulder supports, arm supports, etc.

Adjustment Ranges :

• Headrest +20°/-30°

• Backrest +45°/-20°

• Trendelenburg 20°

• Reverse Trendelenburg 8°

• Seat section +40°/-10°

• Leg sections 0°/-90°

• Height 800 - 1100 mm

Options :

• Plastic-coated steel frame and plastic base cover (Article No. MP-1050/5E).

• Glass bead blasted stainless steel frame and stainless steel base cover (Article No. MP-3050/5E).

• Compartment for X-ray tape (Article No. N-AGAMPRF), dimensions approx. 435 x 305 mm, under the seat section. Retrofitting is not possible.

• Stainless steel tray (Article No. N-AGAVA30MP), dimensions approx. 250 x 190 x 45 mm. Retrofitting is not possible.

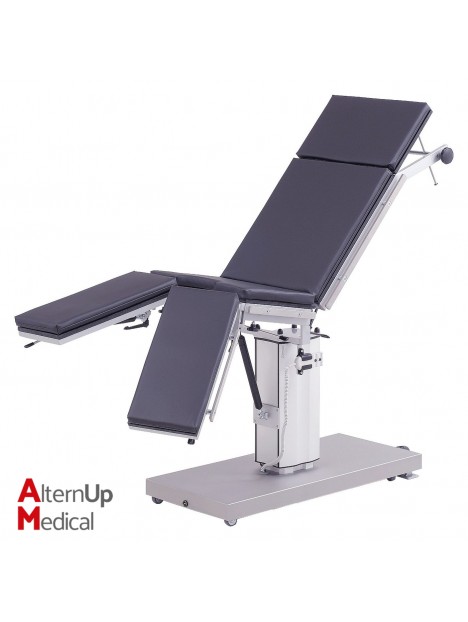

• Removable, split and vertically/laterally adjustable leg plates (Article No. N-AGAMPBTSA) instead of the standard leg sections which can only be dropped down 90°. Vertical adjustment range: 0°/-90°, lateral adjustment (spread): 0°/90°.

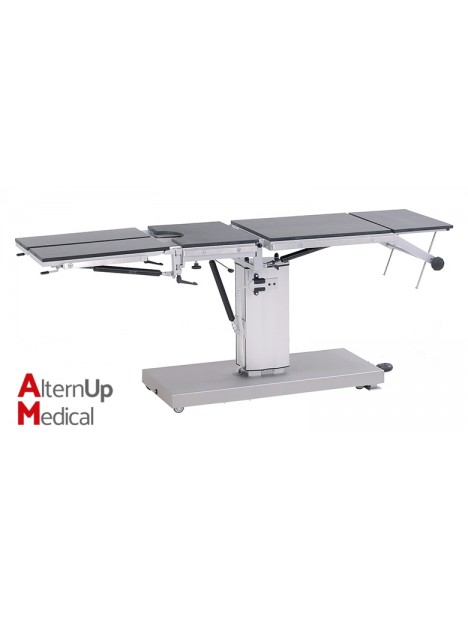

• Upholstered pads (Article No. N-AGAMPPAL), thickness 40 mm, antistatic according to ISO 2882. The upper surfaces are seamless. Hooks and loops fasteners are located on the undersides to attach the pads to the 15 mm thick radiolucent support plates

Accessories :

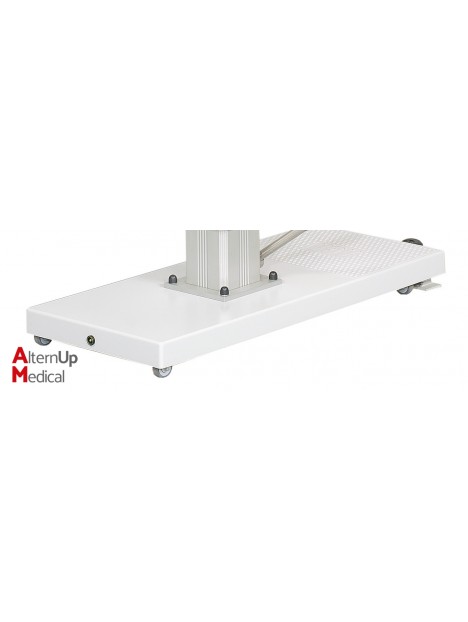

• The central locking castor system (Article No.N-AGALRZ50), with castors Ø 50 mm offers excellent mobility and comfort of use. The base is equipped with two fixed castors (at the foot end) and two multi-directional castors (at the head end). The black locking pedal is located at the head end of the base frame. The central adjustment cannot be retrofitted.

• The paper roll holder (Article No. N-AGAPU2049) will be mounted at the head end. Retrofitting is not possible

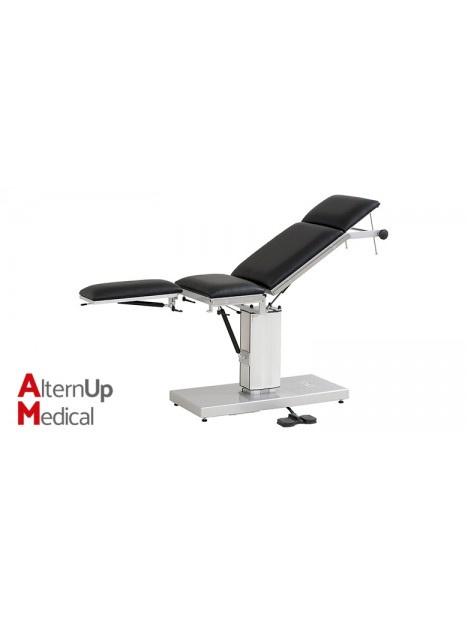

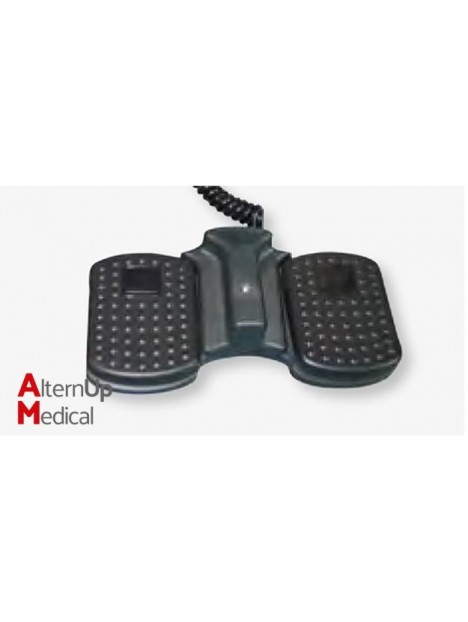

• A footswitch (Article No. N-AGAFS2) may be ordered instead of hand switch.

• For gynecology or proctology examinations, Göpel leg rests (Article No. N-AGABHG600) can be added, using Göpel mounting clamps (Article No. N-AGABKG600).

• In order to give the patient a sense of security, ring armrests (Article No. N-AGARL2060) are also available.
