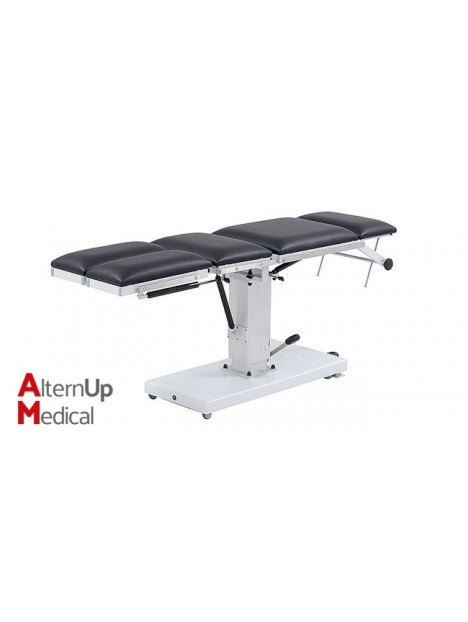

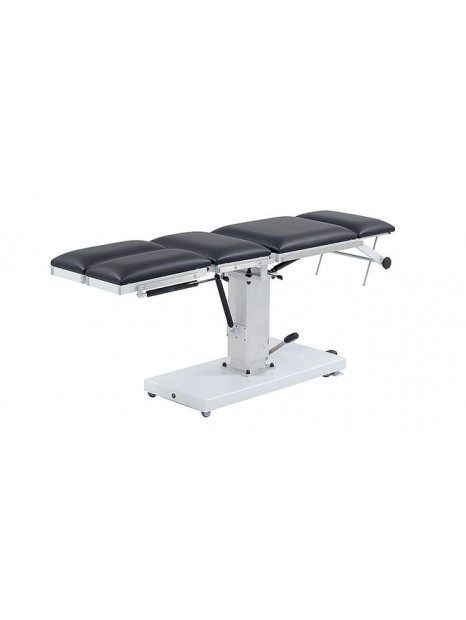

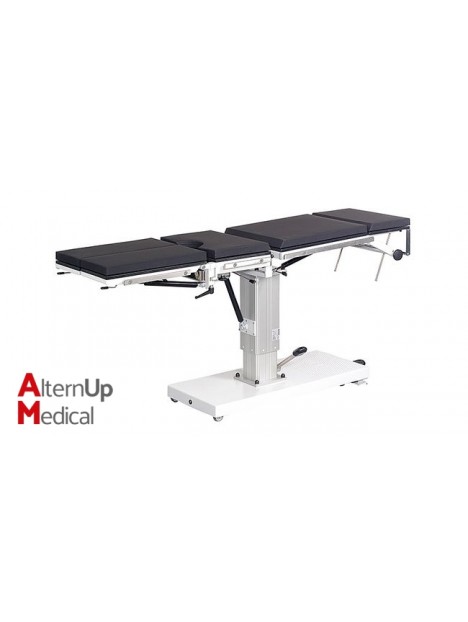

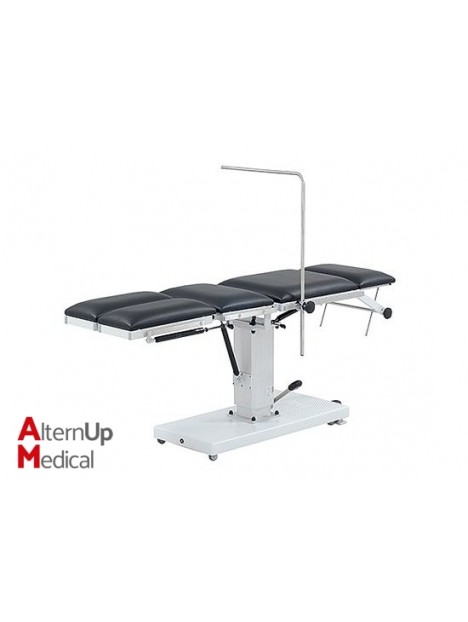

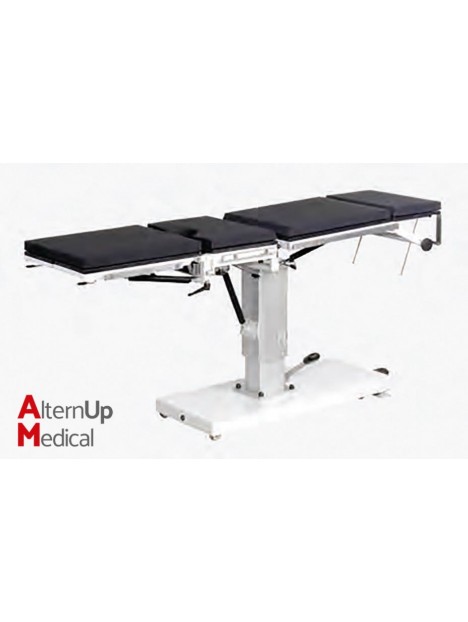

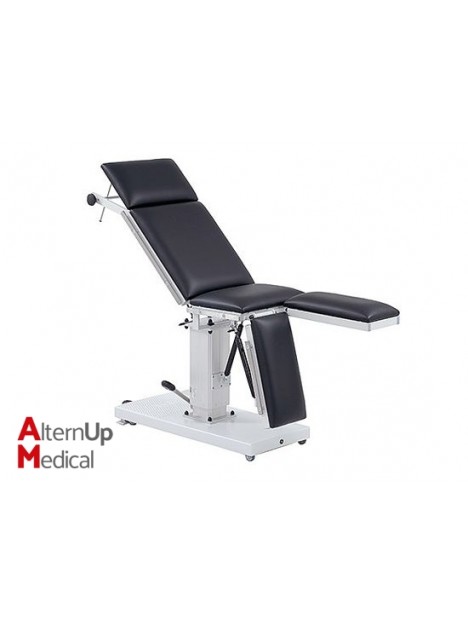

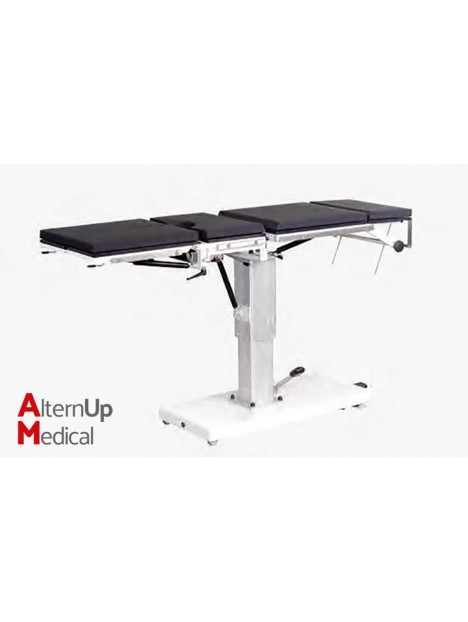

AGA OP-POWER-MAT Operating Table

Reference MP-1050/5Y

Condition

€5,600.00 Tax excluded

Available

The operating table AGA OP-POWER-MAT have been designed for various fields of applications and types of examinations, and they are equipped with different components accordingly such as: the choice of frame or the gynecological version.

The hydraulic height adjustment on the AGA OP-POWER-MAT is done with a centrally located foot pump.

MANUFACTURED IN GERMANY - 3 YEAR WARRANTY

Hello, our team is not online at the moment. We invite you to send us your request via our contact section. It will be processed as soon as possible.

Worldwide Delivery

After Sales Service Guaranteed

Secured Payment

This operating table is available in two versions:

- Colour frame: reference MP-1050/5Y

- Stainless steel: reference MP-3050/5Y

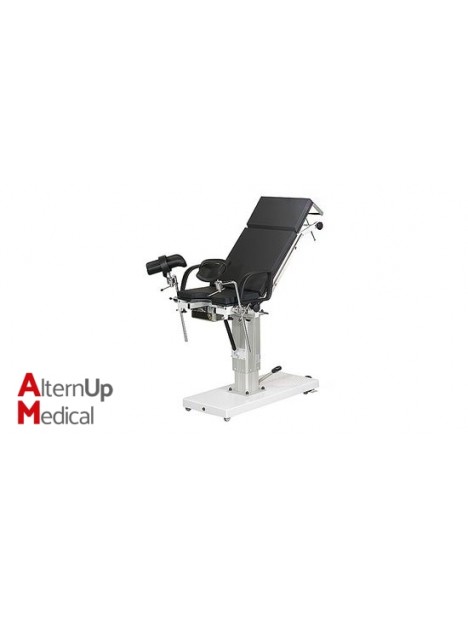

The OP-POWER-MAT operating table is also available in gynecological version with the following combinations :

• Article No. MP-1050/5YGYN includes the operation table MP- 1050/5Y with gynecological cutout,(art n°: N-AGAMPPAL and N-AGAMPBTSA).

• Article No. MP-3050/5YGYN is equipped identically to MP- 1050/5YGYN, except for the glass bead blasted stainless steel frame and stainless steel base cover.

Features :

• The lifting column is made of anodized light alloy.

• All upholstered parts are manually adjustable. Through this type of construction, which is independent of a power source, the AGA-OP-POWER-MAT is available at a very competitive price.

• The removable upholstered segments (thickness 65 mm) are made of soft polyurethane foam and covered with a black, electrically conductive synthetic leather (cotton/polyester mix and 100% PVC compound coating).

• The headrest is continuously adjustable (positive and negative) and secured with clamping rod locking mechanism. • The back, seat and leg section adjustments are assisted by gas pressure springs. The leg rests can be individually folded down by 90°.

• The standard side rails (25 x 10 mm) on the outside frame of the backrest, seat and leg sections allow the use of various accessories such as anesthesia pole, instrument table, side and shoulder supports, arm supports etc.

Adjustment Ranges :

• Headrest +20°/-30°

• Backrest +45°/-20°

• Trendelenburg 20°

• Reverse Trendelenburg 8°

• Seat section +40°/-10°

• Leg sections 0°/-90°

• Height 785 - 1085 mm

Options :

• Plastic-coated steel frame and plastic base cover (Article No. MP-1050/5Y).

• Glass bead blasted stainless steel frame and stainless steel base cover (Article No. MP-3050/5Y).

• Compartment for X-ray tape (Article No. MP-RF), approx. 435 x 305 mm, under the seat section. Retrofitting is not possible.

• Stainless steel tray (Article No. VA-30/MP), approx. 250 x 190 x 45 mm. Retrofitting is not possible.

• Upholstered pads (Article No. MP-PAL), thickness 40 mm, antistatic according to ISO 2882. The upper surfaces are seamless. Hooks and loops fasteners are located on the undersides to attach the pads to the 15 mm thick radiolucent support plates.

• Removable, split and vertically/laterally adjustable leg plates (Article No. MP-BTSA) instead of the standard leg sections which can only be dropped down 90° (Vertical adjustment: 0°/-90°, lateral adjustment/spread: 0°/90°).

• The AGA-OP-POWER-MAT is also available with an adjustable headrest by gas pressure spring (Article No. KVG), instead of headrest adjustment with clamping rod locking mechanism.

Accessories :

• Paper roll holder (Article No. N-AGAPU2049). Retrofitting is not possible.

• Central locking castor system (Article No. N-AGALRZ50), with castors Ø 50 mm. Retrofitting is not possible.

• Göpel leg rests (Article No. N-AGABHG600) and Göpel mounting clamps (Article No. N-AGABKG600).

• Ring armrests (Article No. N-AGARL2060).

MANUFACTURED IN GERMANY - 3 YEAR WARRANTY
