Philips Practix 33 Plus Portable X-Ray System
07102201
Second Hand
€2,500.00
Tax excluded
Available

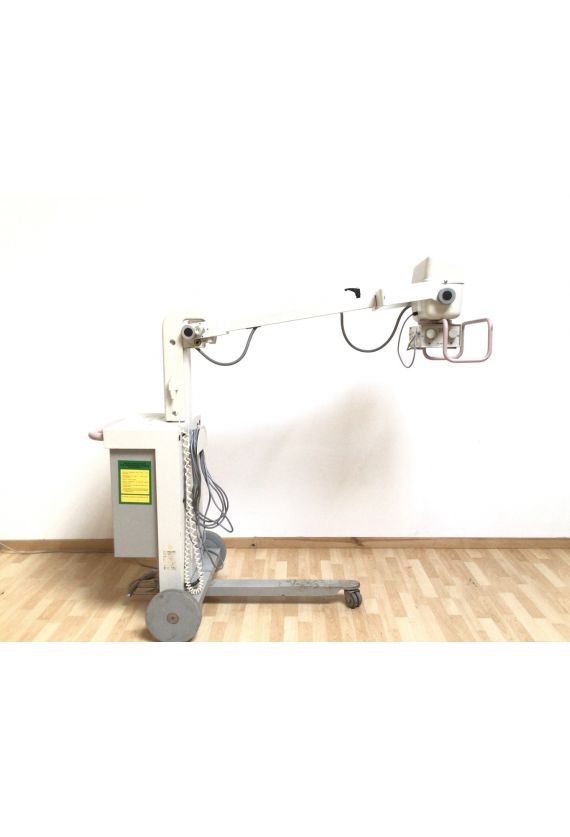

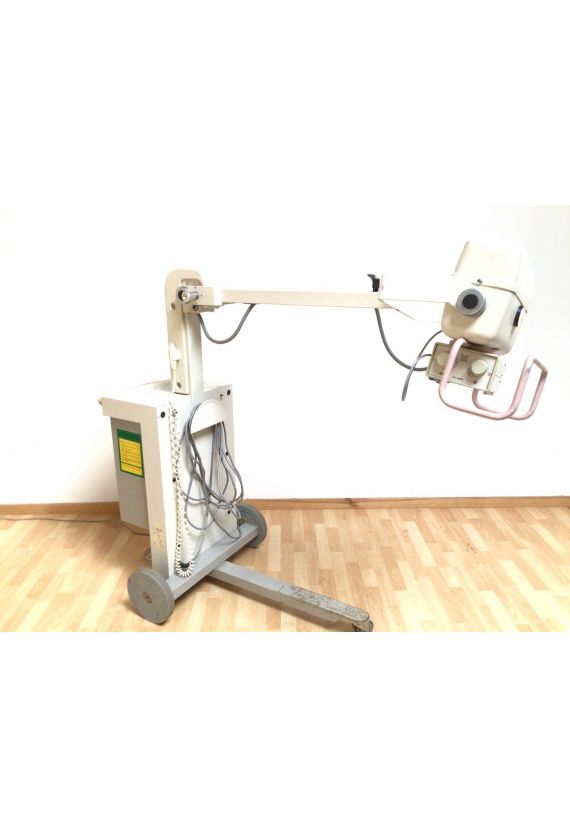

Philips Practix 33 Plus Portable X-Ray System

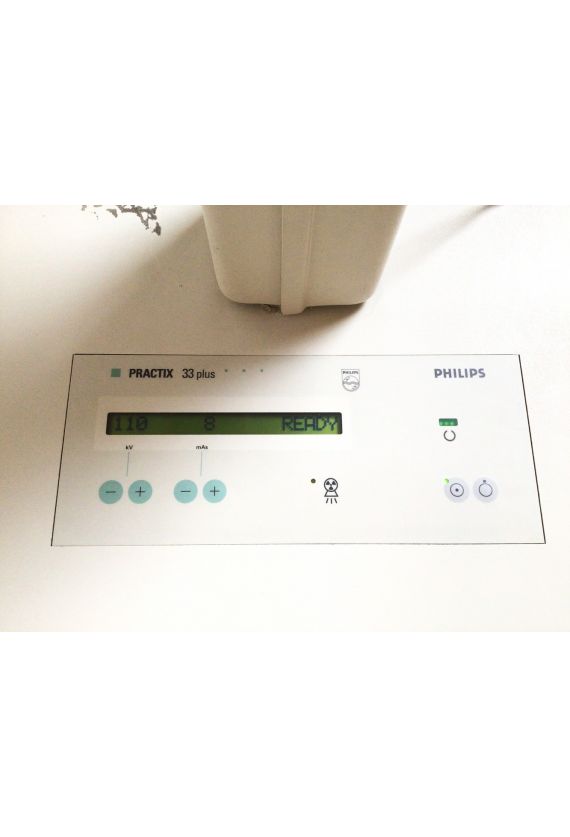

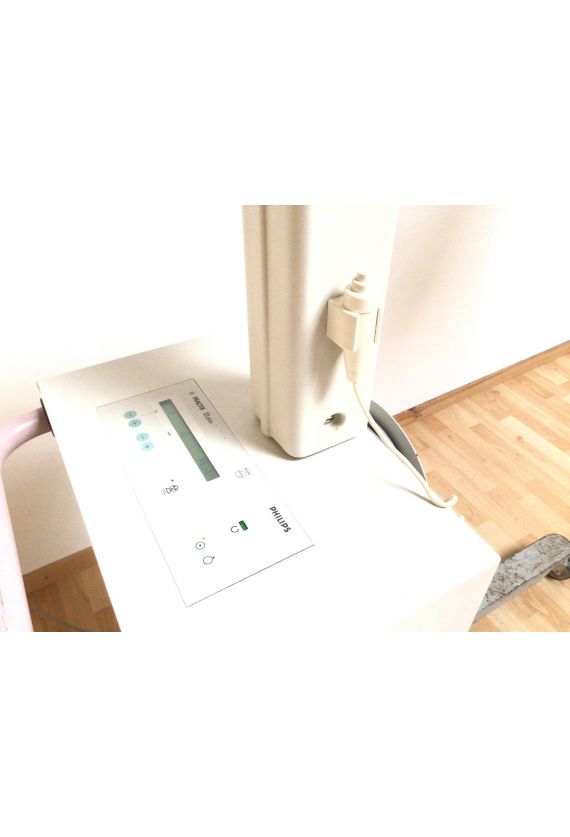

The Practix 33 plus is designed with the user in mind: easy to recognize symbols on the pushbuttons facilitate adjustment of exposure parameters, with values appearing on the display panel for immediate checking. The current system status is displayed at all times.

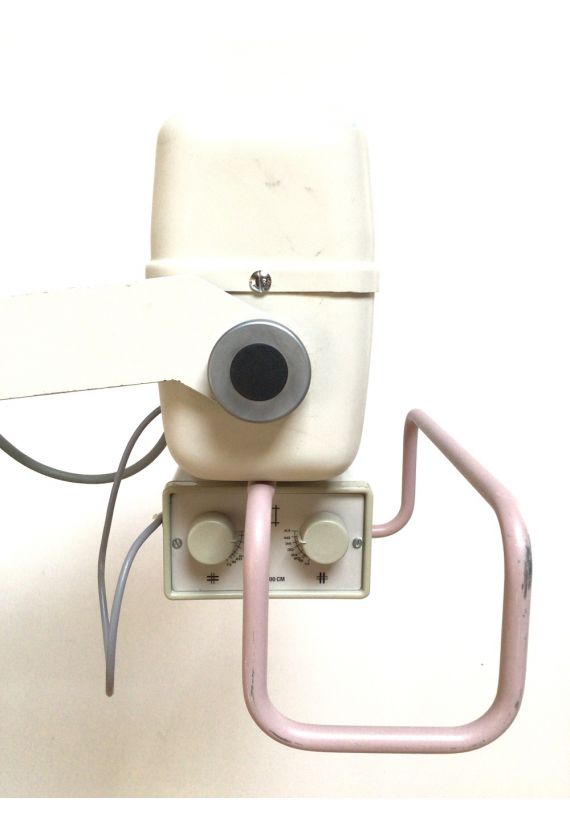

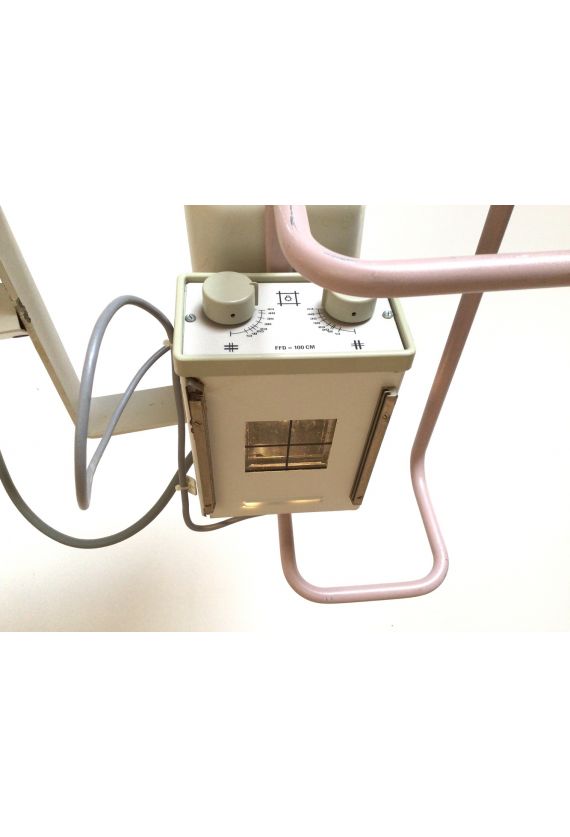

The infinitely adjustable light beam diaphragm allows rapid, accurate collimation. Short exposure times prevent motion artifacts, as well as ensuring high-quality images. The converter-type generator makes Practix 33 plus the most efficient mobile X-ray unit of its type.
Worldwide Delivery
After Sales Service Guaranteed
Secured Payment
Philips Practix 33 Plus Portable X-Ray System
The Practix 33 plus is designed with the user in mind: easy to recognize symbols on the pushbuttons facilitate adjustment of exposure parameters, with values appearing on the display panel for immediate checking. The current system status is displayed at all times.
The infinitely adjustable light beam diaphragm allows rapid, accurate collimation. Short exposure times prevent motion artifacts, as well as ensuring high-quality images. The converter-type generator makes Practix 33 plus the most efficient mobile X-ray unit of its type.
Due to its ease of maneuverability and user-friendliness the Practix 33 plus is particularly suited for plaster rooms and healthcare programs and offers an excellent price/performance ration.
Its microprocessor-controled converter X-ray generator also allows for all other types of applications
07102201
Specific References
Second Hand
Basic unit

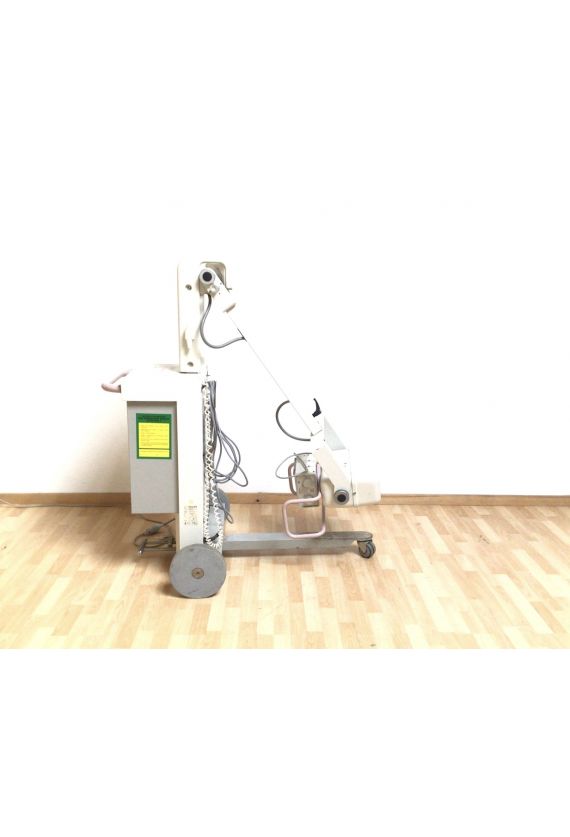

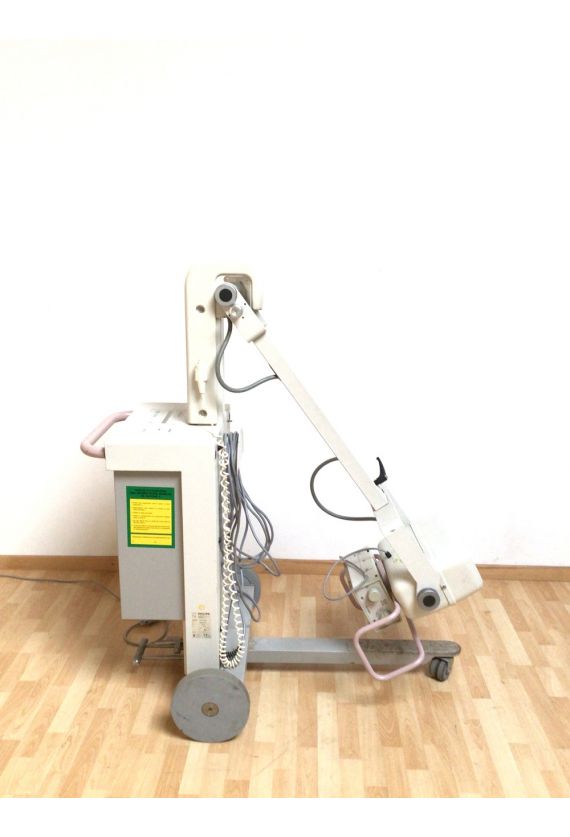

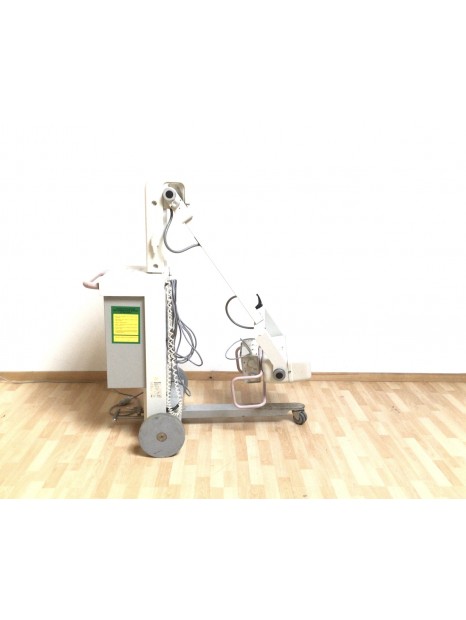

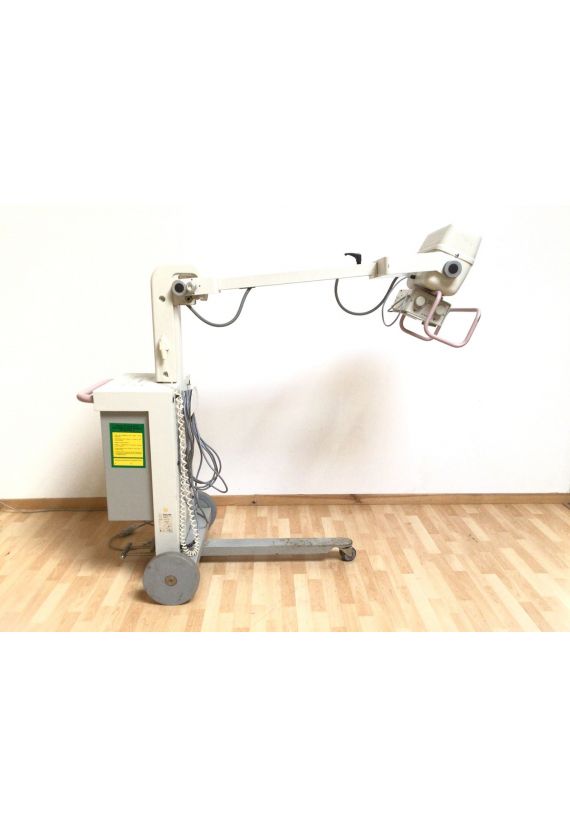

- Type: Mobile X-ray unit with counterbalanced X-ray tube arm
- Dimensions in mm (l x w x h): 1200 x 730 x 1435 (47.28" x 28.76" x 56.54") (at transport position)
- Cassette storage: Radiation protected for up to 5 cassettes (43 cm x 43 cm)
- Source-floor distance: 70 cm to 200 cm
- Weight: 150 kg (330 lbs)
Generator
- Type: Microprocessor-controlled, single-tank converter X-ray generator
- Peak power: 3.3 kW (100 kV / 100 ms) at 230 V (mains voltage)
- Nominal power: 1.5 kW (100 kV / 100 ms) at 115 V (mains voltage)
- Tube voltage: 40 kV to 110 kV in 1 kV steps
- Maximum current: 75 mA at 230 V or 37 mA at 115 V
- Tube current time product:
– large focal spot 0.2 mAs to 250 mAs at 40 kV
– small focal spot 0.2 mAs to 80 mAs at 100 kV
- Mains supply: 115 V ±10%, 120 V ±10%, 230 V ±10%, single-phase, 50 Hz (60 Hz)
- Mains fuse: 16 A slow
- Preparation time: ≤1s
- Exposure times: 3 ms to 4 s

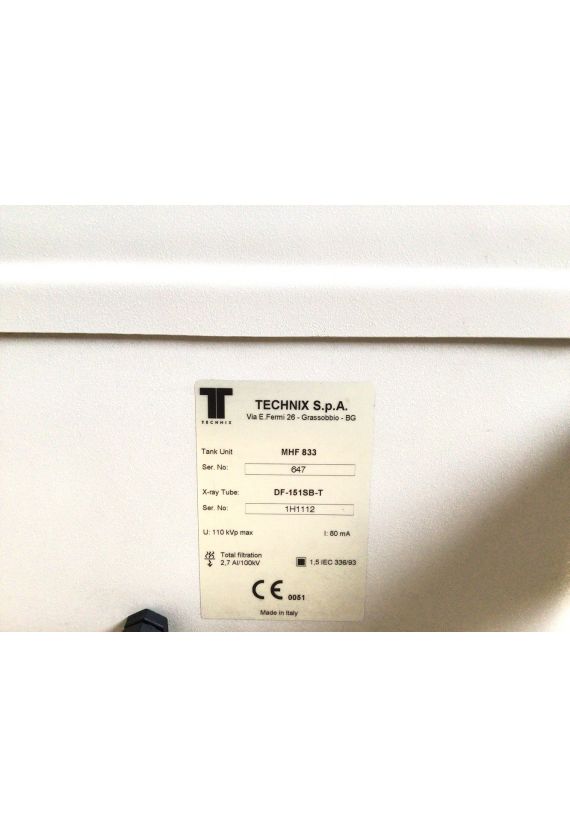

X-ray tube
- Type: Fixed anode X-ray tube
- Anode materia:l Tungsten
- Nominal focal spot: 1,5
- Anode angle: 16°
- Maximum radiation field: 43 cm x 43 cm
