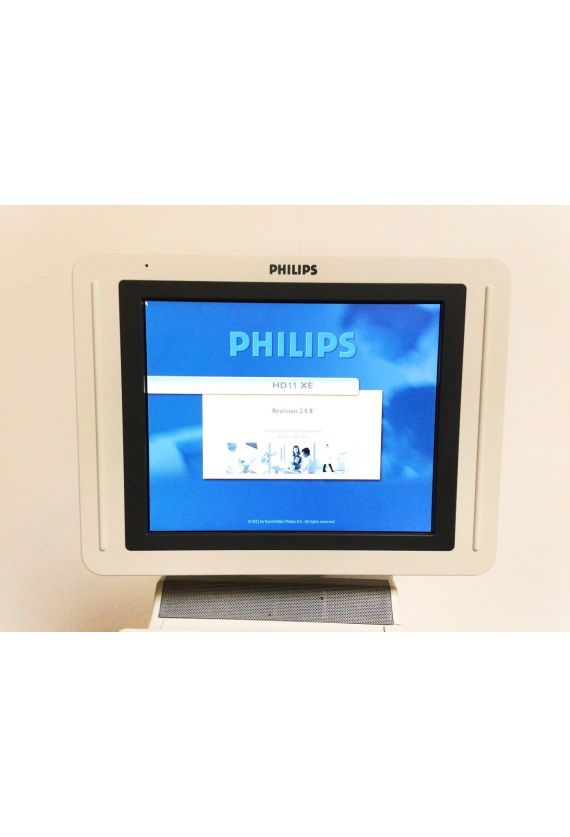

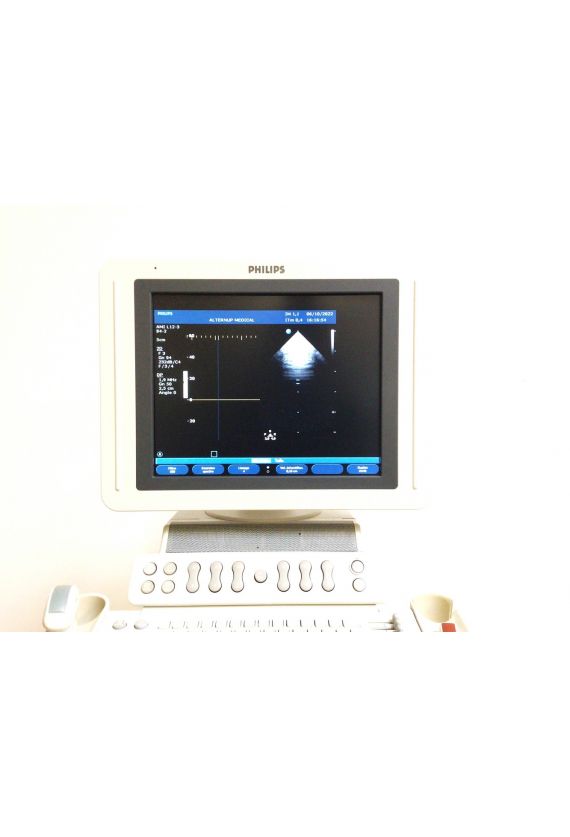

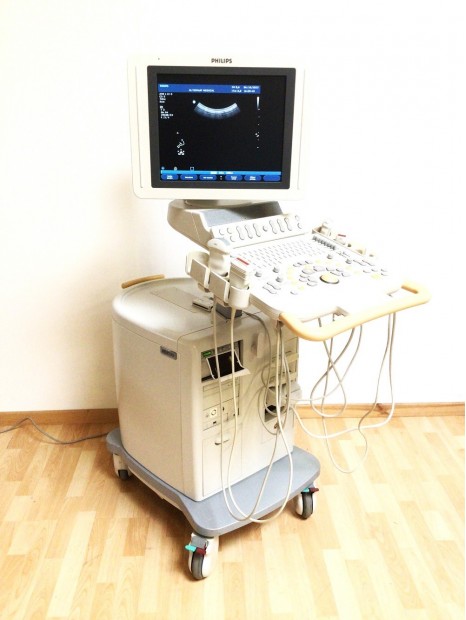

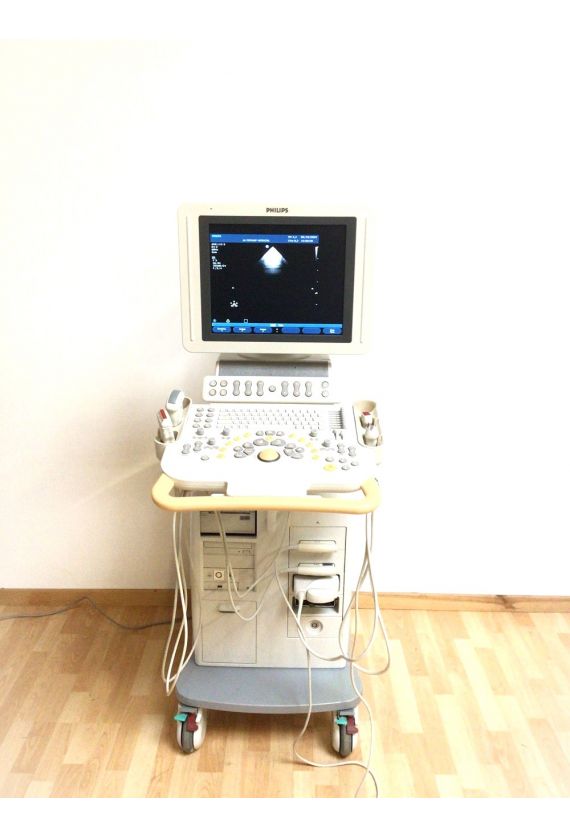

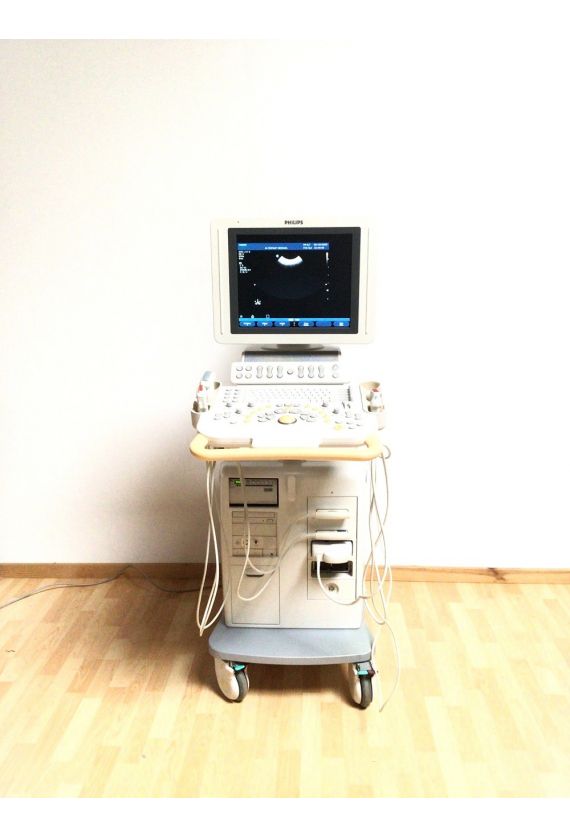

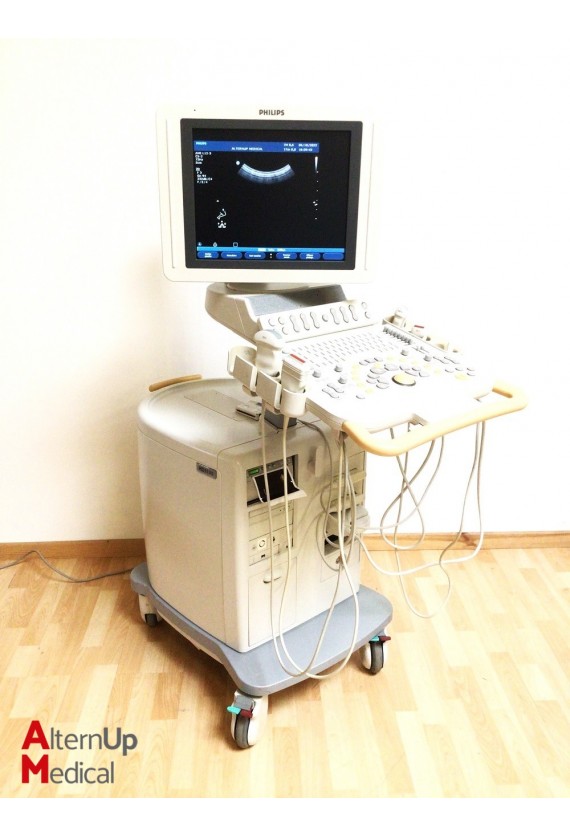

Philips HD11 XE Cardiac Ultrasound

Philips HD11 XE 3D/4D Cardiac Ultrasound

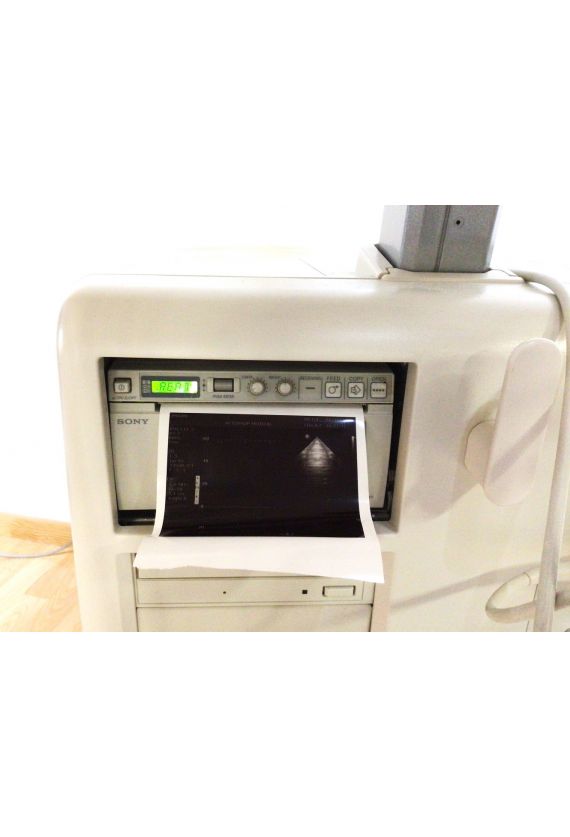

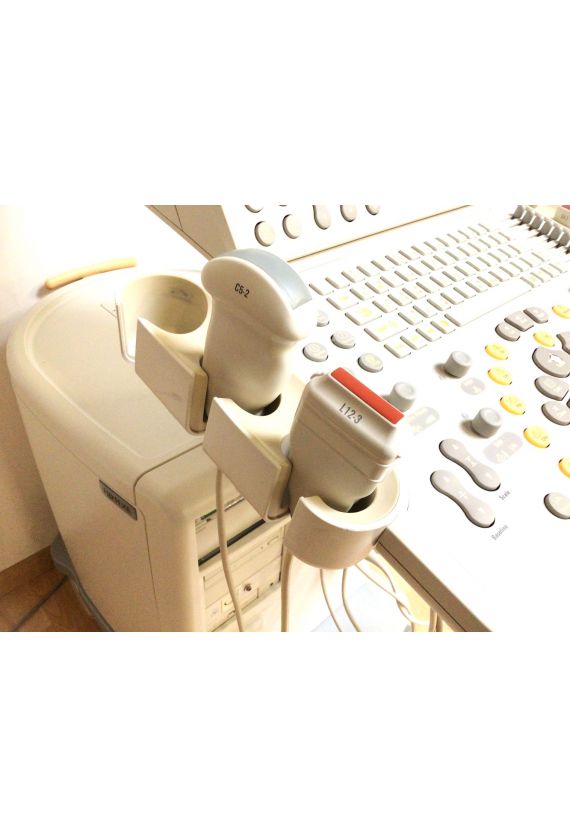

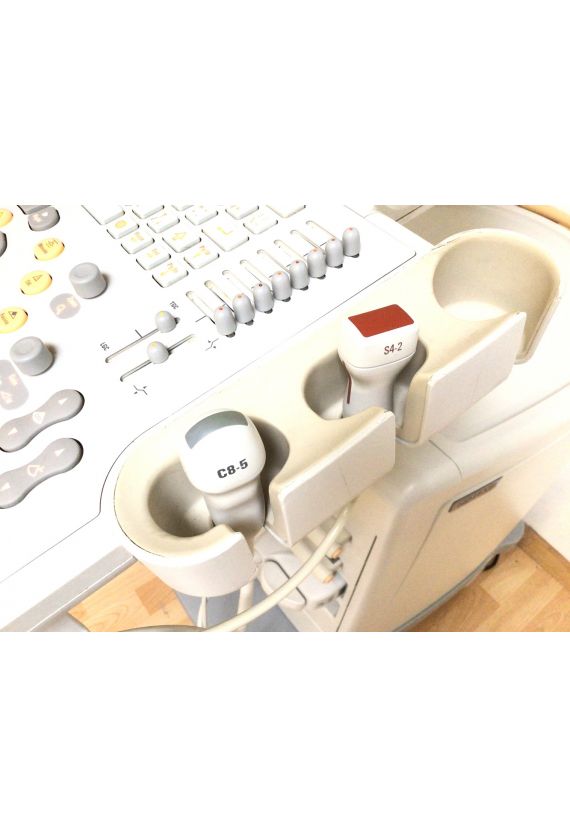

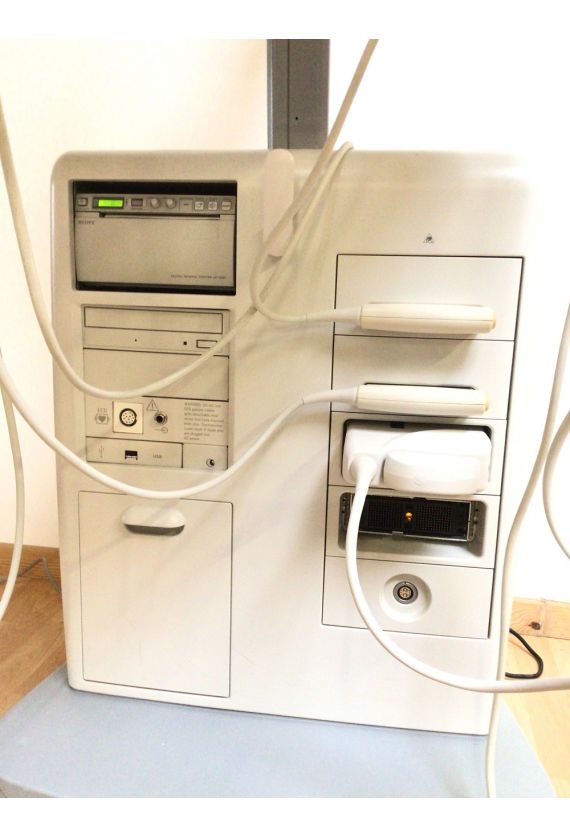

Supplied with 4 probes: 1 C8-5 micro-convex probe, 1 S4-2 cardiac probe, 1 L12-3 linear probe, 1 C5-2 convex probe and 1 Sony UP-D897 digital graphic printer

Applications: abdominal, cardiac, musculoskeletal, urology, vascular, gynaecology, obstetrics

Standard advanced features

The following advanced modes and technologies are standard on every HD11 XE system:

• 2D with Pulse Inversion Harmonic Imaging, Philip’s patented method for producing pure, broadband harmonic signals for superb grayscale presentation.

• Adaptive Color Doppler, which automatically selects the optimal Doppler or angio frequency for highly sensitive resolution, as well as Color Power Angio technology for assessing amplitude and direction of flow.

• Pulsed wave and continuous wave Doppler with Adaptive Doppler technology to boost weak signals and reduce noise, and high PRF capability for measuring higher velocities than ordinary pulsed Doppler ultrasound.

• Tissue Doppler Imaging (TDI), including Color TDI to assess direction and timing of myocardial function, and pulsed wave TDI for velocity mapping of vessel wall motion and cardiac tissue.

• Anatomical M-mode, for more accurate measurements of chambers, walls, and ejection fraction; makes it easier to keep the M-mode line perpendicular to the anatomy, even in abnormally shaped or positioned hearts.
