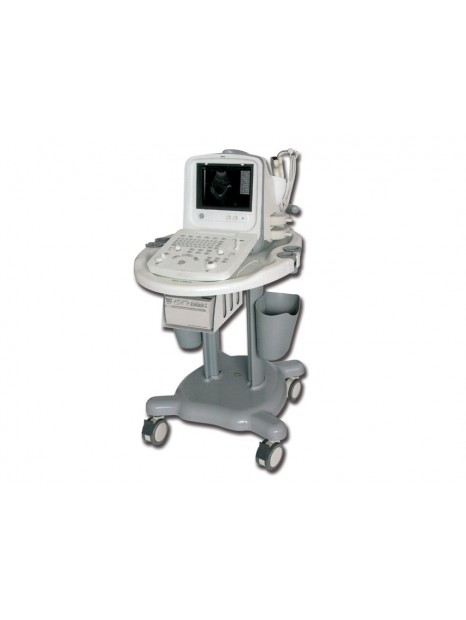

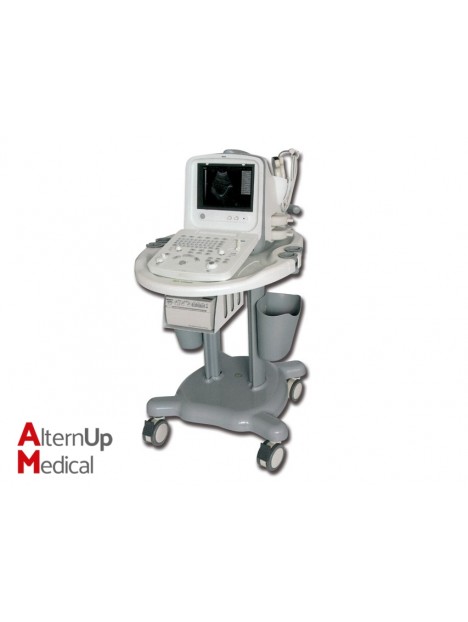

8300 Digital Portable Ultrasound

Digital portable ultrasound with wide range of probes and high quality of images suitable in many specialized fields.

Image:
- B, B/B, 4B, M, B/M
- Harmonic imaging
- 256 gray scales
- Scanning depth: max 246 mm (depending on probe)

Probes:
- Supplied with 2 probe connector
- Selection of 5 probes: Convex / Linear/ Transvaginal / Transrectal / Cardiac
- Wideband multi-frequency 2-10 MHz

Image processing:
- Fully digital beamforming technology
- Real-time dynamic imaging: RDF, RDA, DFS, DRA
- Frame averaging: 8 steps
- Linear averaging: 8 steps
- 6 STC slides for near far and overall gain control
- Image reversing: left/right, up/down
- Zoom: intelligent zoom, 4 steps

Measurement and report:
- B mode: Distance, circumference, area, volume, ratio, angle, %stenosis, histogram, profile
- Cardiology package: LV, mitral and aortic valve, CO, LVET, MVCF, SV, EF, cardiac index
- Software package: Abdomen, OB/GYN, Cardiac, Urology
- M mode: distance, time, velocity, heart rate
- EDD tables, gestational age: BPD, GS, CRL, FL, HC, AC
- Fetal weight, fetal heart measurement, growth analysis, LMP, BBT

Others:
- CINE: 256 frames, play back selectable
- 10 inch, SVGA high resolution monitor
- Image permanent storage: hard disk, USB (2 ports)
- Can use PC printer (A4) or video printer
- Operating voltage: 230V - 50Hz

Technical Specifications:

• Power supply: 230V-50Hz
• 2 USB ports
• 2 probe connectors
• Back-light keyboard for better visibility in dark room
• Optional printer
• Fully portable, ergonomic design
• Powerfull software: Report templates: NORMAL, OB, GYN, UROLOGY, CARDIAC
