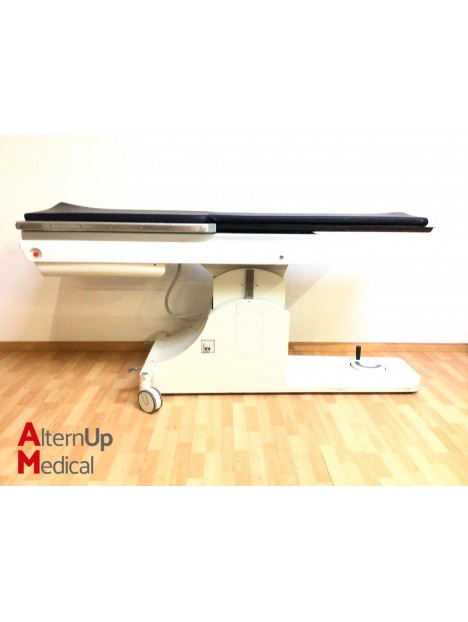

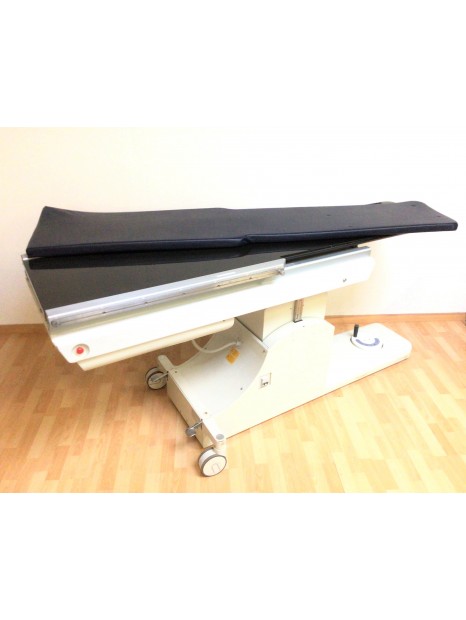

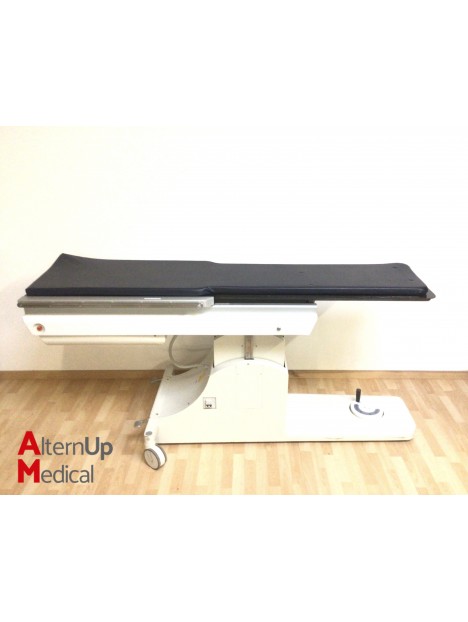

Medical Technology CT160F Mobile X-Ray Table
Mobile X-ray table with floating and elevating carbon fiber cantilever table top, used to support and position the patient in traditional and digital angiography X-ray examinations, electrophysiology, minor surgery and pacemaker placement.
The table can be coupled to a ceiling or floor mounted C-arm in fixed systems or to a C-arm in mobile units.
The patient table top is moved manually. An ergonomic handle, with a built-in push button to release the brakes, allows the table top to be moved easily in all four directions, even when loaded with a very heavy patient. Braking of the patient tray is achieved by permanent magnetic safety brakes.
Near the handle of the control box, which can be positioned on either side of the tray, are the following push buttons for controlling the brakes and motorized movements.
07012202
Specific References
Second Hand
Table top: carbon fiber
- Profile: rectangular (or anatomical on request)
- Total length: 210 cm (82.7 in)
- Length of the transparent area: 160 cm (63 in)
- Part without metal structure: 113,2 cm (44.6 in)
- Total width: 61,8 cm (24.3 in)
- Width of the transparent area: 58,0 cm (2.28 in)
- Thickness: 3.3 cm (1.3 in)
- Maximum patient weight: 150 kg (330 lb)
- Accessory attachment to aluminum side rails
- Attachment of accessories on the upper edge in carbon fiber
Lateral movement: manual
- Travel: ± 14 cm (± 5.5 in)
- Locking device: permanent magnet brake
- Manual movement force (without patient): ≤ 10 N (≤ 2.25 lb)
Longitudinal movement: manual
- Stroke: 100 cm
- Locking device: permanent magnet brake
- Manual movement force (without patient): ≤ 15 N (≤ 3.37 lb).
- Maximum overhang: 160 cm (63 in)
Vertical movement: motorized
- Minimum distance from floor: 82 cm (32.3 in)
- Displacement: 28 cm (11 in)
- Average speed: 1.3 cm/s (0.5 in/s)
Power supply
- Single-phase mains voltage: 230 V 50/60 Hz (115V on request)
- Maximum power consumption: 280 VA
Weight: 290 kg (640 lb)
- Continuous working mode with intermittent load
Transport and storage environment
- Temperature range: 0°C to 50°C (32°F to 122°F)
- Relative humidity range (non-condensing): 10% to 90%.
- Atmospheric pressure range: 50 - 110 kPa (7.25 PSI to 15.95 PSI)
Operating environment
- Temperature range 10 °C ÷ 40 °C (50 °F to 104 °F)
- Relative humidity range: 30% ÷ 75%.
- Atmospheric pressure range: 70 - 110 kPa (10.15 PSI to 15.95 PSI)
