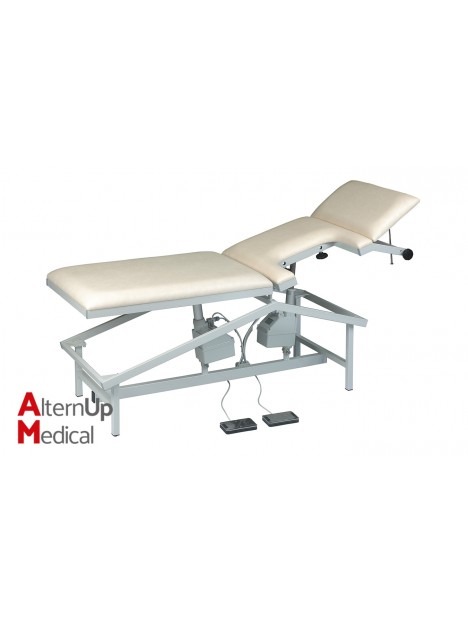

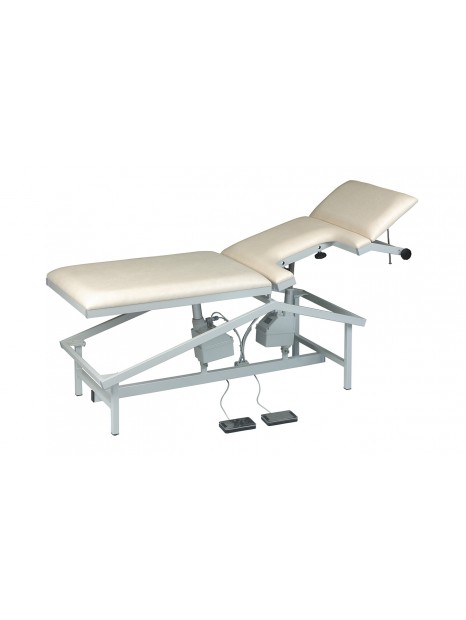

AGASAN Sono-Echocardiography Table

AGASAN Sono-Echocardiography Table

Features :

• - Height 700  mm
• - Width 650 mm
• - Length 1900 mm (headrest 350 mm / back section 600 mm / leg section 950 mm)
• - Adjustment mechanisms for the separate tabletop sections

  - Electric motor with foot switch

• - Headrest adjustment +/- 30°

• - Maximum load 200 kg
• - Product weight 90 kg
• - Frame lacquered, see Frame Colours
• - Upholstery thickness 64 mm, 21 Upholstery Colours available
• - Upholstery insert for cut-out is included
• - With electric adjustment of the head section and the foot section
•
• - The upholstered tabletop sections (thickness 64 mm) are individually adjustable, making it possible, from an initial arched posture through Trendelenburg/reverse Trendelenburg to obtain a horizontal position as well.
•
• - The headrest is not only continuously adjustable up to +30° but also negative to -30°, for a thyroid sonography for example. It is secured with a clamping rod locking mechanism.

• - The head and leg sections offer positive and negative electric adjustment to approx. +20°/-17°.

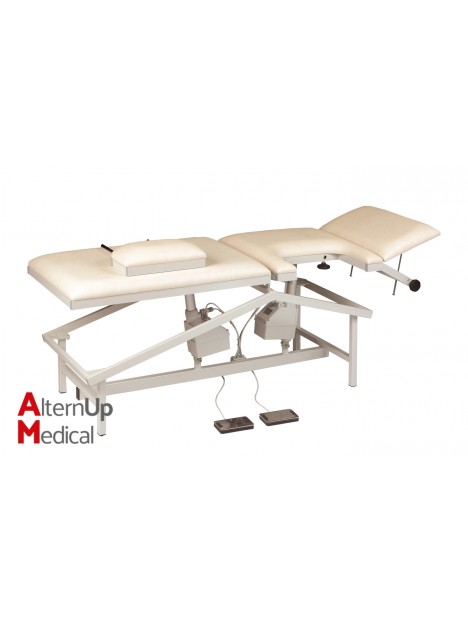

• - The echocardiography cut-out (400 x 300 mm, LxW) can be closed with the included upholstered pad, converting the sono-echocardiography table back into a standard sonography table.

• - This table features electric adjustment of both tabletop sections (head/back and leg). The desired examination position may be adjusted while the patient is on the table.

• - The maintenance-free, spill-proof and ultra-quiet electric motors are controlled by air pulses via foot switches. The patient is moved into the desired examination position by pressing the foot switch.

• - A hand switch is also available instead of the foot switch, at no extra charge (please specify upon ordering). Drive specifications: 230V, 50/60Hz, 3,7A, 850W, IP55, v=14mm/s, 7000N.

Options :
