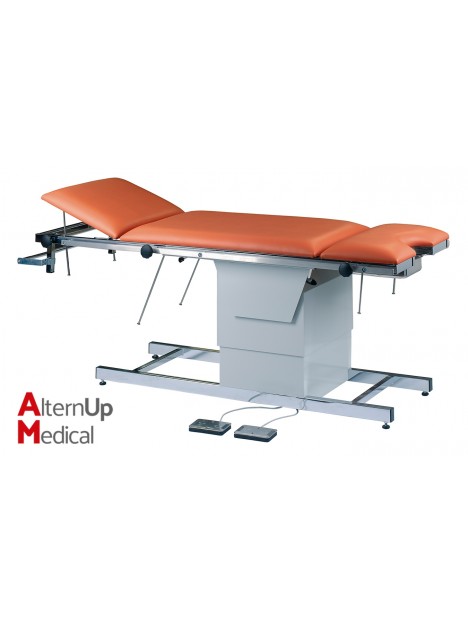

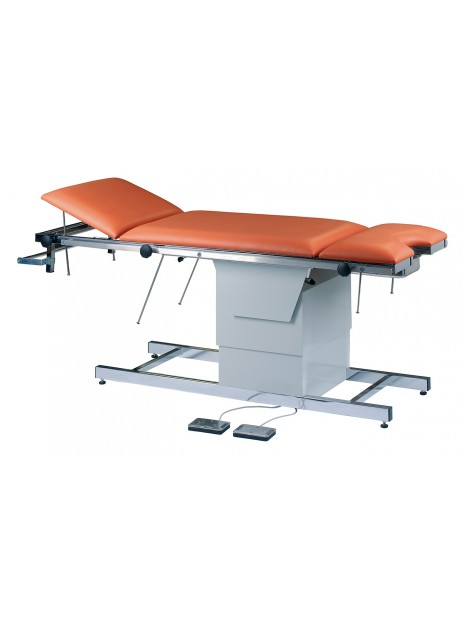

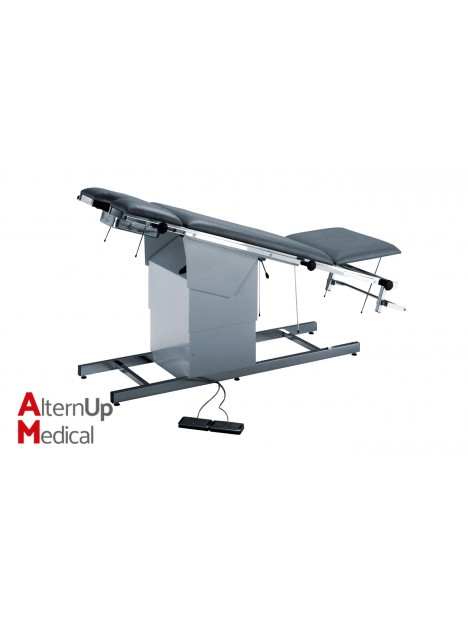

AGA-UNI-MED Multi-Function Examination Table

AGA-UNI-MED Multi-Function Examination Table

Features :

• - Height adjustment range 650 - 850 mm (electric with foot switch)

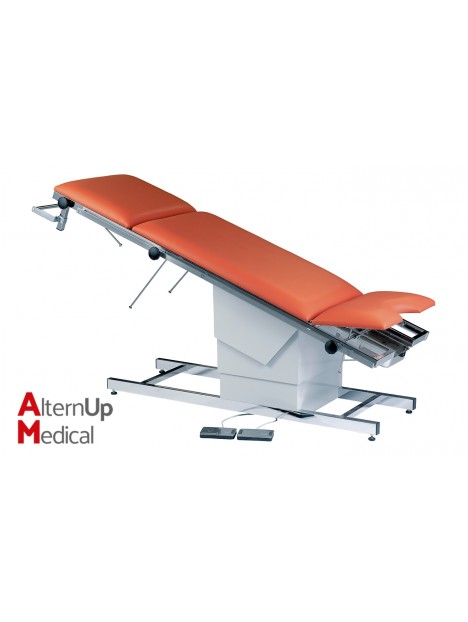

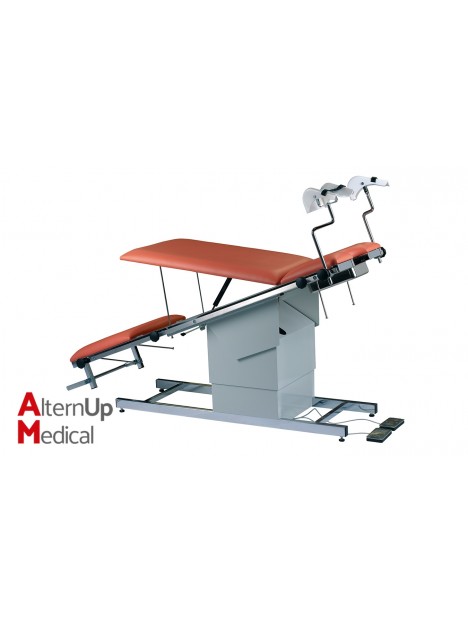

• - Trendelenburg / reverse Trendelenburg 25° (electric with foot switch)
• - Headrest and pelvic tilt adjustment mechanisms - continuous with clamping rod locking mechanism
• - Backrest adjustment with gas pressure spring, pelvic cut-out
• - Width 650 mm
• - Length 1900 mm (headrest 500 mm, backrest 1050 mm, seat section 350 mm)
• - Maximum load  200 kg, product weight 110 kg
• - Frame : Tabletop frame - chrome-plated or Plate coverings - lacquered, see Frame Colours
• - Upholstery thickness 64 mm,  21 Upholstery Colours available

•

• - The three-piece tabletop has an upholstery thickness of 64 mm. The tabletop sections are continuously adjustable, as required, independently of each other for optimal patient treatment positioning, and secured with a clamping rod locking mechanism.

• - The continuous backrest adjustment is gas pressure spring assisted for ease of use.
• - A pelvic cut-out was inserted in the tabletop frame and upholstered seat.
• - Levelling screws fitted into the wide base provide enhanced stability on any type of floor.

•

• - The continuous height and tilt adjustments are controlled by maintenance-free, spill-proof, ultra-quiet electric motors and pneumatic foot switches (Drive specifications for each motor: 230V, 50/60Hz, 3,7A, 850W, IP 55, v=14 mm/s, 7000N). With full use of both motorized adjustments, a Trendelenburg and reverse Trendelenburg positioning up to 25° may be obtained.

The AGA-UNI-MED multifunction examination table includes :

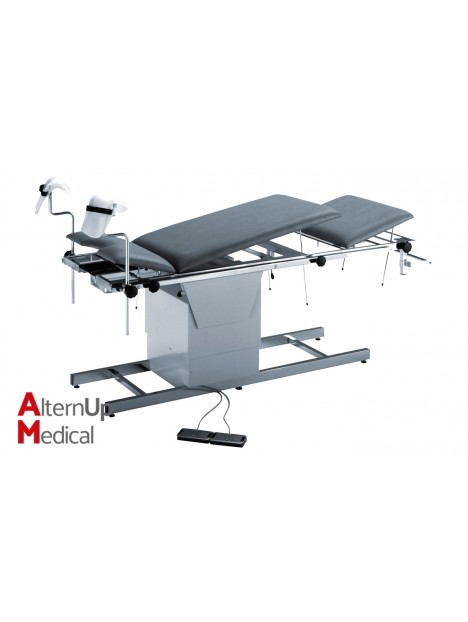

• - A pair of leg rests with plastic shells
• - A pair of mounting clamps
• - A set of two standard rails (length 1700 mm)
• - A stainless steel pan
• - A paper roll holder

Mobility Options :

The height-adjustable multi-function tables are also available in a mobile version, with :

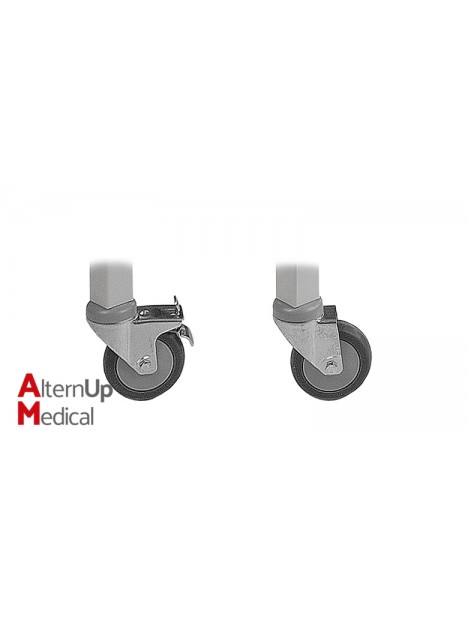

• - Castors, Ø 75 mm - Article No. N-AGALR75
• - Castors, Ø 125 mm - Article No. N-AGALR125

A set includes four castors, two of which are lockable.

• Central locking castor system - Article No. N-AGALRZ125 for enhanced maneuverability and comfort of use.

All four double castors (Ø 125 mm) are connected by rods. A foot pedal to lock in position or release is located at the head and foot ends of the table.

Accessories :

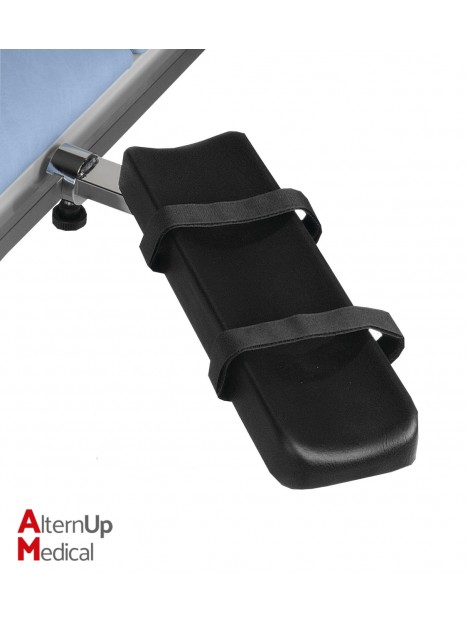

- Armrest - Article No. N-AGAA2047

- Anesthesia pole - Article No. N-AGANB3000

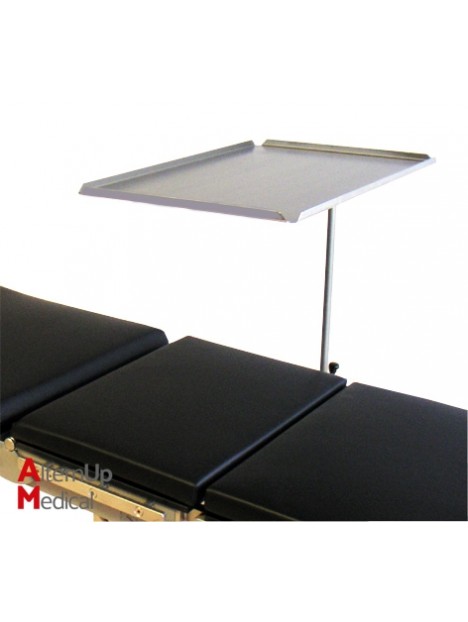

- Instrument table - Article No N-AGAIT3060

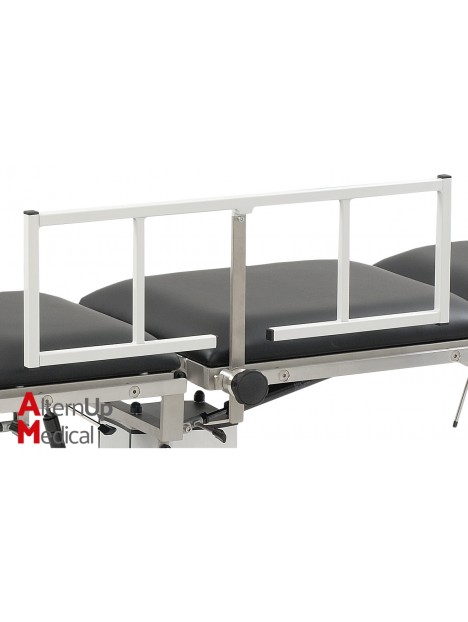

- Side safety rail - Article No. N-AGASG1000BK​

• MADE IN GERMANY - 3 YEAR WARRANTY
