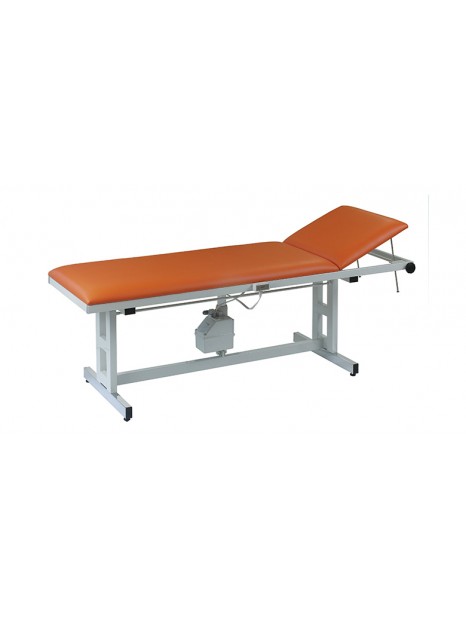

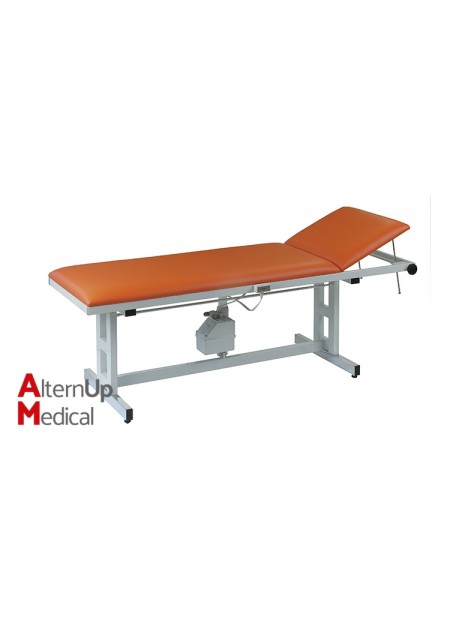

Universal Tables with Electric Height Adjustment

AGASAN Universal Table with Electric Height Adjustment

Features :

• - Frame lacquered, chrome-plated or stainless steel
• - Width 650 mm,  800 mm or 1000 mm
• - Headrest adjustment range  +30° or +/-30°
• - The electric height adjustment (650 - 850 mm) is done with a maintenance-free, spill-proof and extremely quiet electric motor, controlled by air pulses via a hand switch (or foot switch at no extra charge, please specify upon ordering). Drive specifications: 230V, 50/60Hz, 3,7A, 850W, IP55, v=14mm/s, 7000N.

• - To prevent rocking and swinging movements of the tabletop, the universal tables with electric height adjustment are manufactured with dual-box rectangular profiles.

• - The electric height adjustment takes place without lateral offset and can be done with little effort, even with heavier patients (up to 200 kg).

• - The chrome-plated crossbars fitted with levelling screws and the flat foot structure are more resistant than a lacquered frame against external influences such as repeated vacuum cleaner impacts.

• - The upholstery thickness for both tabletop sections is 64 mm.

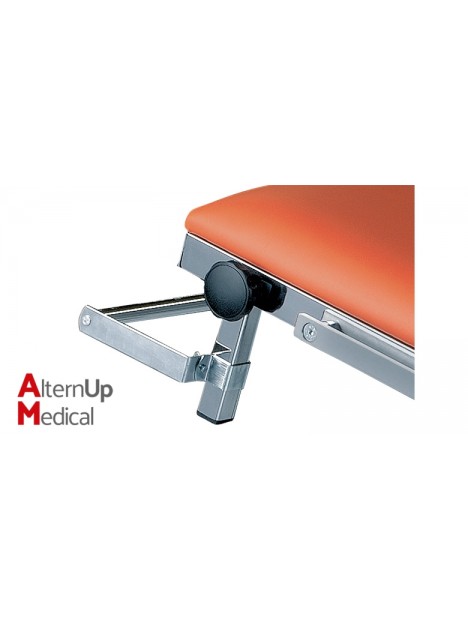

• - The headrest is continuously adjustable up to +30° (Article No.  H-U ../E) or +/-30° (Article No. H-SU ../E) and secured with clamping rod locking mechanism.

Options :

- The universal tables with electric height adjustment are also available with a width of 1000 mm or wíth a three-piece tabletop.

You will find universal tables with electric height adjustment and:

• - Scissor mechanism (adjustment range 500-930 mm),
• - For bariatric patients (up to 300 kg),
• - Tilt adjustment.

Mobility :

The universal tables with electric height adjustment are also available in a mobile version, with the following accessories (extra charge):

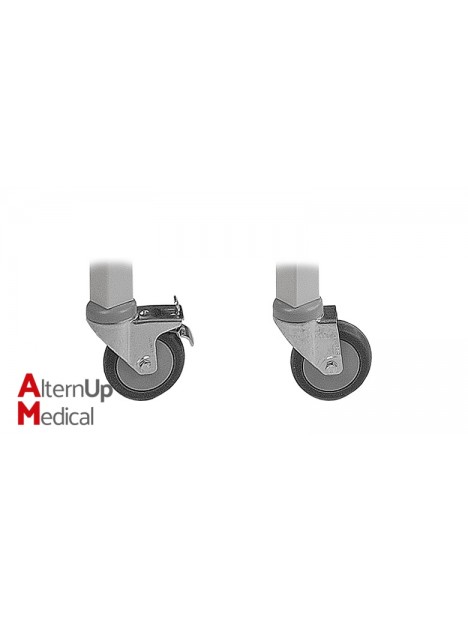

• - Castors, Ø 75 mm - Article No. N-AGALR75
• - Castors, Ø 125 mm - Article No. N-AGALR125

A set includes four castors, two of which are lockable.

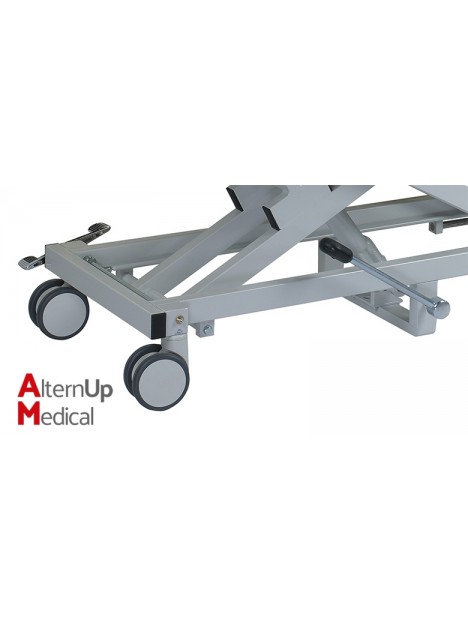

• Central locking castor system - Article No. N-AGALRZ125
  for enhanced maneuverability and comfort of use.

All four double castors (Ø 125 mm) are connected by rods. A foot pedal to lock in position or release is located at the head and foot ends of the table.

Accessories :

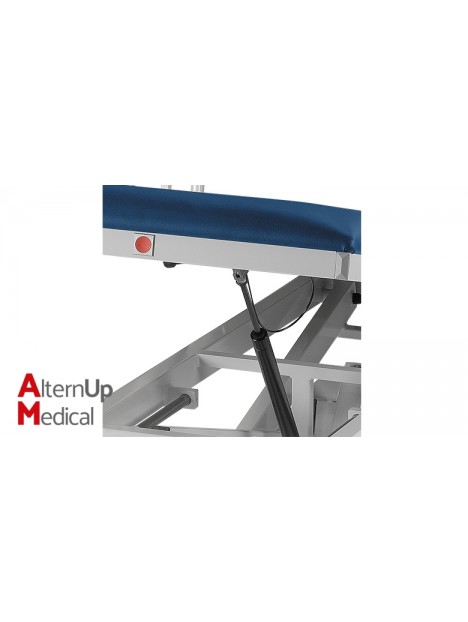

• - The electric universal tables can be equipped with shock position/Trendelenburg adjustment to approx. 11° (Article No. N-AGASLAWL). The red release button is embedded in the tabletop frame at the foot end. Retrofitting is not possible.
• - The paper roll holder N-AGAP2065A for table width 650 mm or N-AGAP2080A for table width 800 mm can be mounted onto the tabletop frame with the included hardware.
