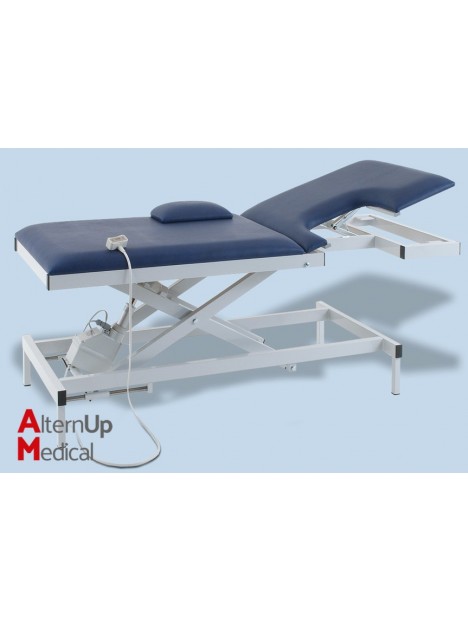

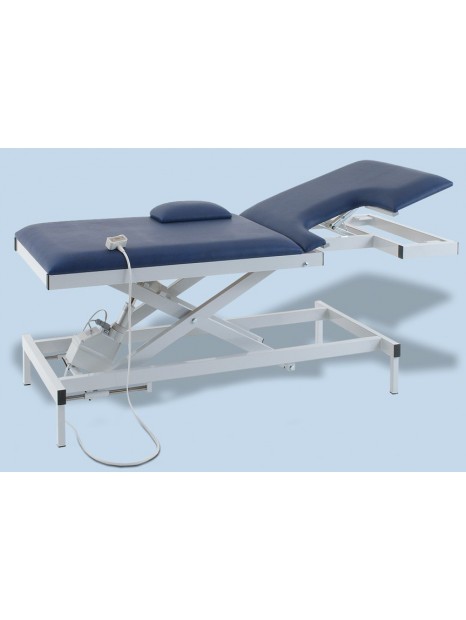

Cardiology Electric Examination Table

Cardiology Electric Examination Table

The height of the couch hydraulically and electrically, we offer you a greater height adjustment (400 mm) on. The frame is equipped with a scissor mechanism.

Compared to the models described above, the type and location of the collar is changed.

• The collar is located in the headboard.
• Dimensions 335 x 260 mm, L x W
• two different mechanisms of height adjustment -
• hydraulic, electric motor
• two different frames textures -
• painted, chrome-plated
• two widths - 650 mm, 800 mm.

Properties

• Hydraulic height adjustment by a built-in foot pump. The foot pump can be (must be specified when ordering) to request service from the other side long. A second foot pump is available at an extra charge.The height is still with heavy patients without excessive force.
• Electric height adjustment controlled by a maintenance-free, splash-proof and quiet electric motor, the (with Sicherheitssperrbox) manually operated by air pulse. Unit specifications 230V, 50/60Hz, 3.7 A, 850W, IP55, v = 14mm / s, 7000N.
• Head adjustment through the grid.

Options

• The removable cushion in the platform cutting area is also available in the folding design.
• If desired, the size of the cut, the dimensions or the chair can be changed.
