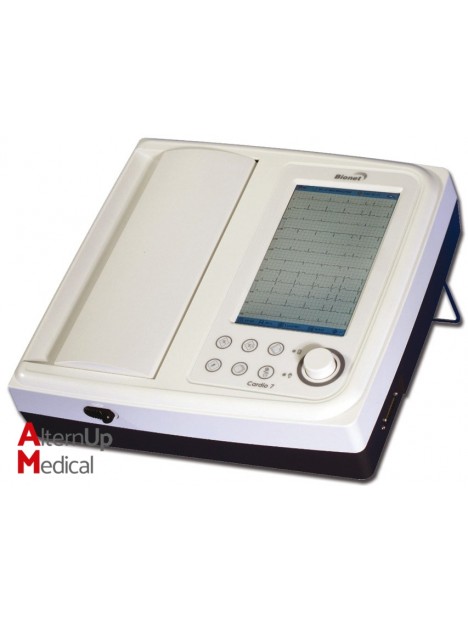

Cardio 7 ECG 12 Channels

Features:

• 12 channel interpretive ECG
• Over 130 kinds of interpretation results based on advanced Minnesota code
• Memory for up to 120 patients
• Real-time preview monitor
• PC compatible through LAN
• Lead fault message
• Pace maker detection
• Automatic arrhythmia detection
• 5 minute long term recording
• Grid function allows you to use low cost plain fax paper
• Wide and clear color TFT LCD (800 x 480)
• Touch screen for easy operation
• Adaptable UL (Portrait & Landscape mode)
• Multi-Ianguage selectable software (English, Russian, French, German, Italian, Chinese, Spanish, Turkish, Polish, Romanian, Portuguese)

SOFTWARE EKG VIEW PLUS for data storage on PC
- 12 Channel simultaneous display
- Rotary key access to all menus
- One touch operation (monitoring, recording mode)
- Convenient A4 size printouts allow easy chart filing

Technical Specification:

• ECG leads: 10 lead, 12 channel simultaneous ECG and acquisition
• Dimension: 296(W) x 305.5(H) x 92.5(D)mm, approx. 3.5 kg
• Recording channel:
  - 3 channels + 1 rhythm, 3 channels + 3 rhythm,
  - 6 channels + 1 rhythm, 12 channels, 60 seconds
  - 1 channel, 5 minutes 1 channel and beat report
• Sensitivity: 2.5, 5, 10, 20, auto(l~aVF: 10, V1~V6: 5) mm/mV
• Printing speed: 12.5, 25, 50 mm/s
• Sampling rate: 500 samples/sec
• Filters:
  - AC (50/60 Hz, -20dB or better)
  - Muscle (25~35 Hz, -3dB or better)
  - Base line drift (0.1 Hz, -3dB or better)
  - Low pass filter: off, 40 Hz, 100 Hz, 150 Hz
• Display: 7" color TFT LCD display (800 x 480), 12 channels preview ECG wave
• Monitor display: ID, date, sensitivity, speed, filter, form, rhythm lead
• User interface:
  - Touch screen (alphanumeric and symbol available)
  - Keyboard
  - Rotary push-knob (pop-up menu)
• Patient data: ID, name, age, sex, height, weight, smoke, race
• Basic measurement: Heart rate, PR int, QRS dur, QT/QTc, P-R-T axis
• Recorder: Thermal print head, roll paper A4 report paper: 210 x 300 mm (8.5"x11")
• Resolution:
  - vertical: 8 dot/mm
  - horizontal: 16 dot/mm
• Electrical:
  - Internal noise: 20 µV (p-p) max
  - Input circuit: floating input
  - Input impedance: =10 MO
  - Input voltage range: = ±5 mV
  - Common mode rejection: > 100 dB
  - DC offset voltage: = ±300 mV
  - Time constant: 3.2 sec
  - Patient leakage current: < 10 µA
  - Frequency response: 0.05 ~150 Hz
  - Isolated and defibrillation protected
• Signal quality control:
  - Disconnected lead detection
  - Pacemaker pulse detection
• ECG data storage: storage for 120 ECGs (Internal on flash memory)
  Power:
  - AC 95~240 VAC, 50/60 Hz
  - or built-in battery (option) 1.0~0.5 A, 60 W max
• Battery (Ni-MH): 1 hour of normal use (approx.100 ECG printouts)
• Communication: PC connection with RS232 interface and LAN
• Safety conformity: Class I, Type BF, CE, CSA, FDA, KFDA, SFDA, CCC

Standard Accessories:

• Patient cable - 10 leads
• LAN cable
• 1 bottle of ECG cream (70 g)
• 1 power cable
• 1 paper roll
• 4 limb electrodes
• 6 chest limb electrodes
• EKG View Plus
