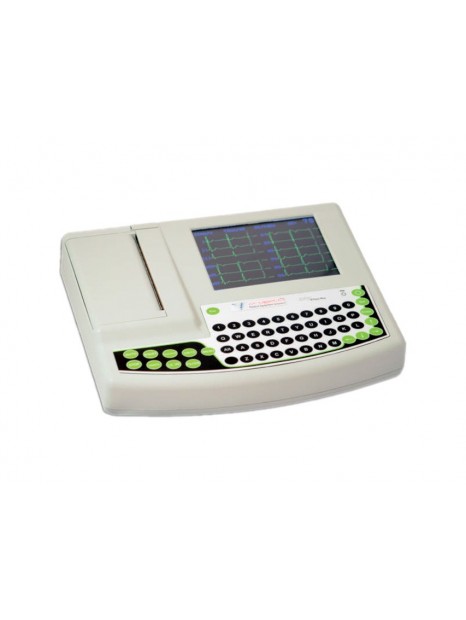

Color ECG 3/6/12 Channels

3/6/12 channels electrocardiograph with analysis HES interpretation and software

- Internal memory for more than 300 tests
- Pacemaker detection
- LCD TFT color display 5.7"
- USB output for printing A4 with external printer
- PC software for data management

Technical Specifications:

• One time record: 3/6/12 channels
• Width of record: 112mm
• Outside USB printer: printout A4 (210x297)
• Record speed: 5/10/25/50 mm/s
• Sensitivity: 2.5/5/10/20 mm/mV
• Digital filtration of disturbances: 25, 35, 50, 60 Hz
• Display: 5.7” graphic, color TFT 320 x 240
• Analysis and interpretation:
• HES compliant with EN 60601-2-51
• Internal memory: >300 tests
• Alphanumeric keyboard
• Detection of stimulator impulses (pacemaker)
• Automatic regulation of isoelectric line
• Constant measurement of heart action (HR)
• Acoustic signalization of detected stimulations
• Paper easy-load
• Signalization of wrong connection with particular electrodes
• CMMR: >100dB
• Leads: 12 standard/Cabrera
• Input channels: floating, protected from impulse defibrillating CF
• Power: 90-240V, 50/60Hz
• Inside rechargeable battery: Li-ion 7.2V, 2200 mAh Li-ion
• Power consumption: <30VA
• Dimensions: 260 x 220 x 52 mm
• Weight: < 1.8 Kg
• Standards: EN 60601-1, EN 60601-1-2, EN 60601-2-25, EN 60601-2-51
• Class/Group: Class A/Group 1 (CISPR-11)

Standard Accessories:

• Patient cable 10 leads
• 4 limb electrodes
• 6 chest limb electrodes
• 1 bottle of gel
• Paper roll
• Power cable
• PC software for data management
• Carrying bag (optional)
• User manual
