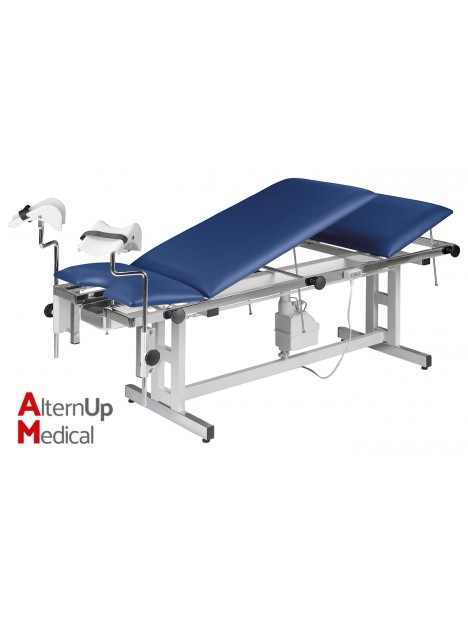

AGASAN Multi-Function Examination Table

AGASAN Multi-Function Examination Table with Height Adjustment

Features :

• - Height adjustment range 650 - 850 mm
• - Height adjustment mechanism -

  - Three-piece upholstered tabletop, continuously and independently adjustable sections, with clamping rod locking mechanism

• - Pelvic cut-out in tabletop frame and seat section

• - Width - 650 mm
• - Length - 1900 mm (headrest 500 mm, backrest 1050 mm, seat section 350 mm)
• - Maximum load 200 kg, product weight 80 kg
• - Frame Tabletop and leg frame - chrome-plated / Height adjustment mechanism - lacquered, see Frame Colours
• - 21 Upholstery Colours available
•
• - These multi-fonction tables are manufactured with precision dual-box rectangular profiles and a three-piece tabletop (upholstery thickness 64 mm) for a wide range of applications.
•

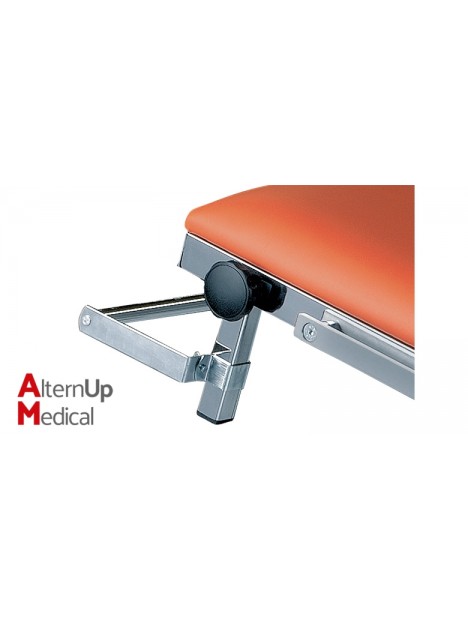

• - The tabletop sections can be continuously adjusted as required, independently of each other, for optimal patient treatment positioning and secured with a clamping rod locking mechanism.

  - A pelvic cut-out can be found in the tabletop frame and upholstered seat.

  - The chrome-plated crossbars with levelling screws and flat-foot structure are more durable against external factors such as repeated vacuum cleaner impacts than a plastic-coated frame.

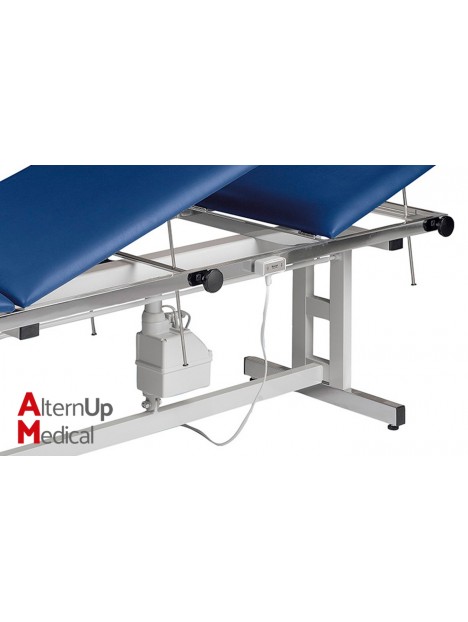

• - The electric height adjustment (HK-2065/3E) is controlled by a maintenance-free, spill-proof, ultra-quiet motor and a pneumatic hand or foot switch. Drive specifications: 230V, 50/60Hz, 3,7A, 850W, IP 55, v=14 mm/s, 7000N.

This multi-function examination table with height adjustment include:

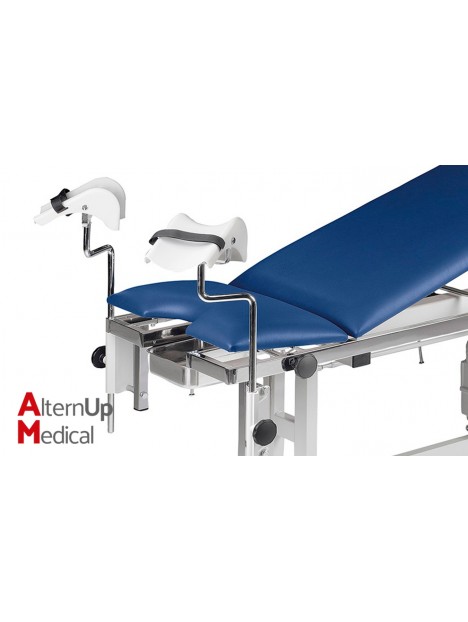

- A set of two leg rests with plastic shells

- A set of two mounting clamps

- A stainless steel pan.

Mobility Options :

The height-adjustable multi-function tables are also available in a mobile version, with :

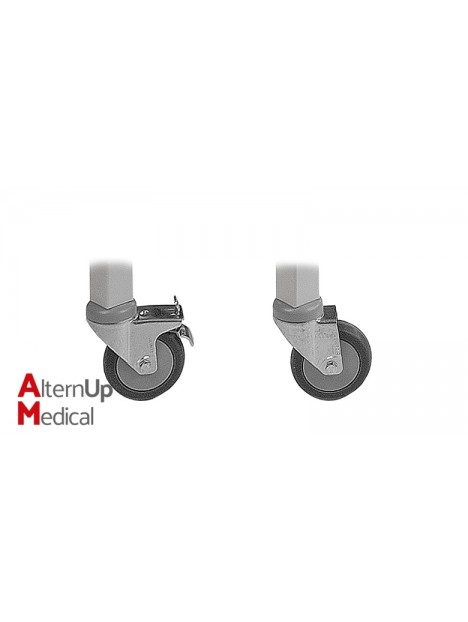

• - Castors, Ø 75 mm - Article No. N-AGALR75
• - Castors, Ø 125 mm - Article No. N-AGALR125

A set includes four castors, two of which are lockable.

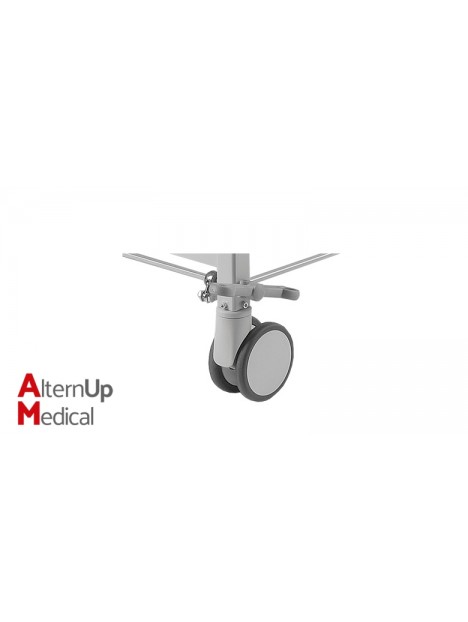

• Central locking castor system - Article No. N-AGALRZ125 for enhanced maneuverability and comfort of use.

All four double castors (Ø 125 mm) are connected by rods. A foot pedal to lock in position or release is located at the head and foot ends of the table.

Accessories :

• - Paper roll holder - Article No. N-AGAP2065A Chrome-plated, with mounting kit.
• - Rectoscopy bolster - Article No. N-AGARRH65

To enable patient examination not only in the lateral or lithotomy position, but also in the knee-elbow position, the multi-function tables are also available with a four-piece tabletop and a built-in, continuously height-adjustable rectoscopy bolster. Please note that the rectoscopy bolster cannot be retrofitted.

MADE IN GERMANY - 3 YEAR WARRANTY
