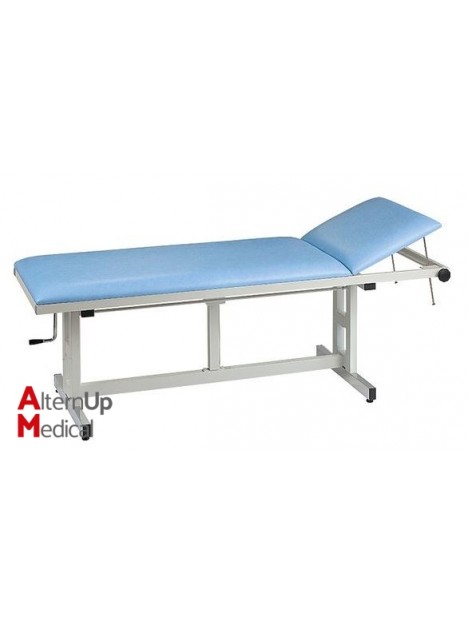

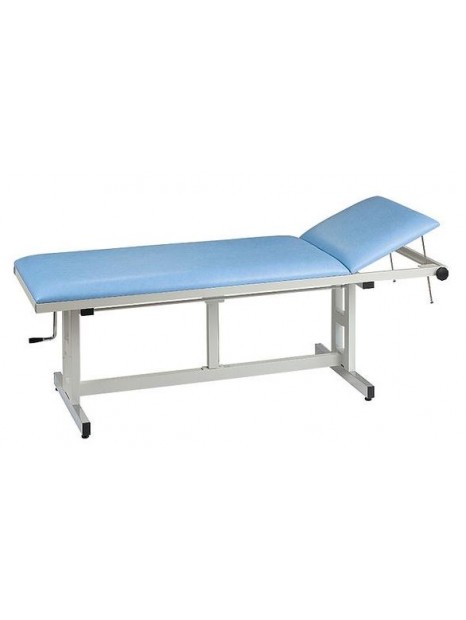

AGASAN Universal Table with Manual Adjustment

AGASAN Universal Table with Manual Adjustment

Features :

• - Height adjustment range 650 - 850 mm (continuous, by hand crank)
• - Widths  - 650 mm
• - Length - 1900 mm  (head section 500 mm, main section 1400 mm)
• - Two-piece tabletop

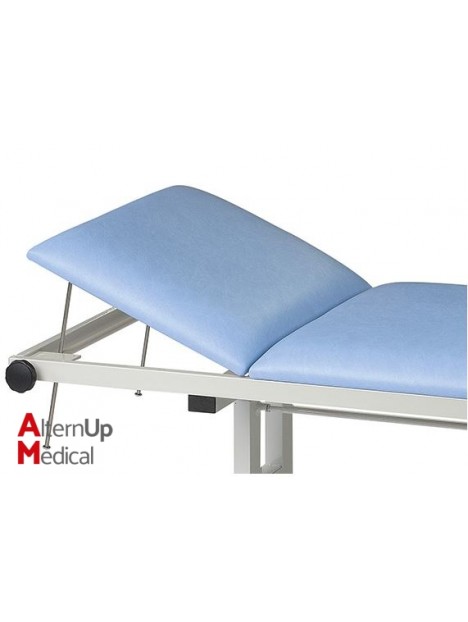

• - Continuously adjustable headrest +30°, or +/-30° (for H-SU.../H) with clamping rod locking mechanism
• - Maximum load - 200 kg
• - Product weight - 60 kg
• - Frame - lacquered, see Frame Colours or chrome-plated or stainless steel (at choice)
• - 21 Upholstery Colours available

• - The universal tables with manual height adjustment are manufactured with dual-box rectangular profiles to prevent rocking and swinging movements of the tabletop.

• - The maintenance-free gear with optimal transmission ratio (i=10mm/rev) ensures smooth, quick and easy operation of the hand crank.

• - The height adjustment can be performed with little effort, even with heavier patients (up to 200 kg).

• - The chrome-plated crossbars fitted with levelling screws and the flat foot structure are more resistant than a lacquered frame against external influences such as repeated vacuum cleaner impacts.

• - The upholstery thickness for both tabletop sections is 64 mm.

Options :

• - The universal table with manual height adjustment are also available with a width of 1000 mm, or wíth a three-piece tabletop. Pricing information is available upon request.

• - The universal tables with hydraulic and electric height adjustment are available on demand.

Accessoires :

Available accessories for the universal tables include positioning aids, paper roll holder, regular castors, retractable castors, double castors with central locking system, Trendelenburg, headrest adjustment by grid/gas pressure spring, face cutout and insert, standard side rails, side guards and mounting clamps
