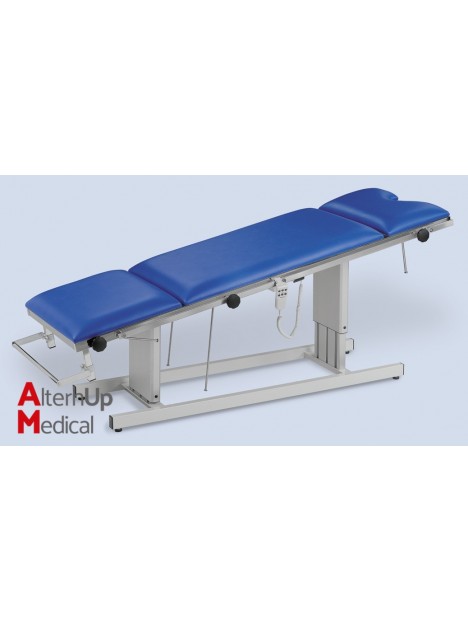

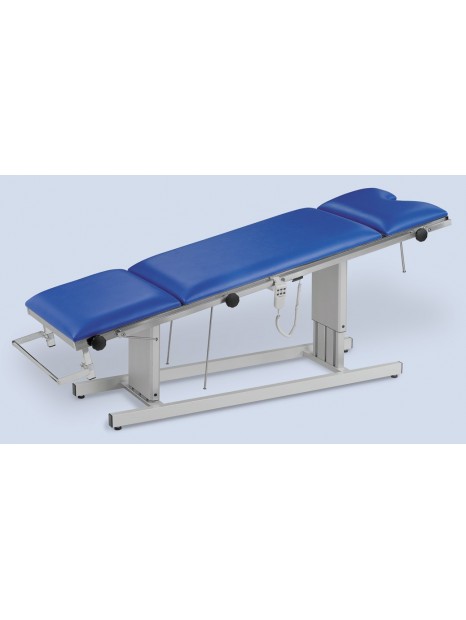

AGA DUO Electric Examination Table

Electric examination table AGA DUO medicalized multifunction.

Properties

• The three 64 mm thick cushion segments can also be adjusted here, if necessary, independently of each other to infinity.
• The locking occurs at the clamping rod mechanism. Only the rear is pneumatically adjustable spring-assisted.
• The seat frame and the seat part are each provided with a pelvis recess.
• The lifting columns (low voltage electric controls), which are characterized by their low noise level, are made of anodized light alloy and are controlled by a transformer and operated by a manual switch. The handset allows simultaneous height and tilt adjustment (MULTI-STAGE adjustment).
• Port values for each motor: 230V, 50/60Hz, 2.0A, 120W, IP20, v = 16mm / s, 1000N .
• In full use of the two-way motorized adjustment a Trendenlenburg and Antitrendelenburg position of 15 ° is adjustable.
• The wide display of the substructure, which is provided with adjustment screws, thus ensuring a stable position
• a pair of leg rests with plastic shells
• a pair of fixation clamps
• a pair of OP-rails (1700 mm long)
• a stainless steel pan
• a paper roll holder
• height adjustment range 600-850 mm (electric motor with manual transmission)
• Slope / Antitrendelenburgposition 15 ° (electric drives with manual switch)
• simultaneous height and tilt adjustment (MULTI-STAGE adjustment)
• Pelvic and Kopfteilverstellmechanismen - continuous, with rod clamping mechanism
• Adjustment of the back section - gas spring support
• pelvic cutout in the cushion frame and seat
• Width - 650 mm
• Length - 1900 mm (head section 500 mm, back section 1050 mm, seat section 350 mm)
• Extended capacity - 150 kg
• Net weight - 100 kg
• Frame
•     Chrome cushion frame
•     Painted pedestal
• 64 mm thick carpet
•     21 colors to choose from
