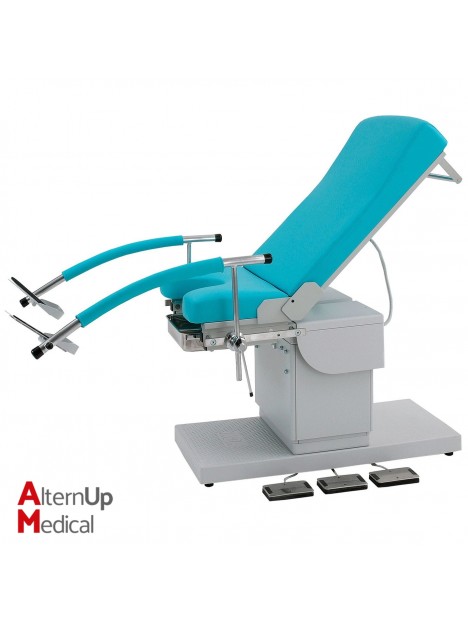

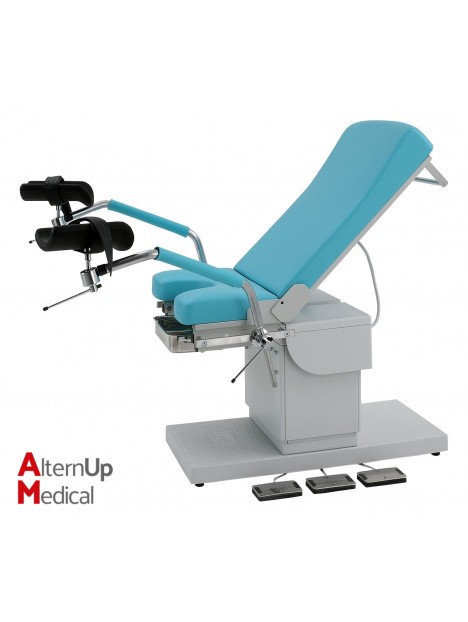

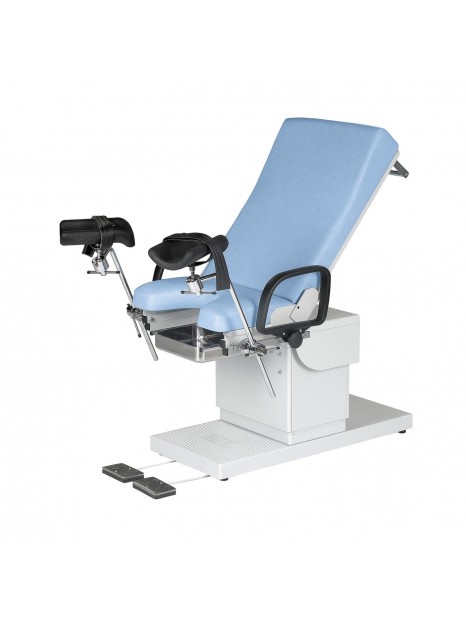

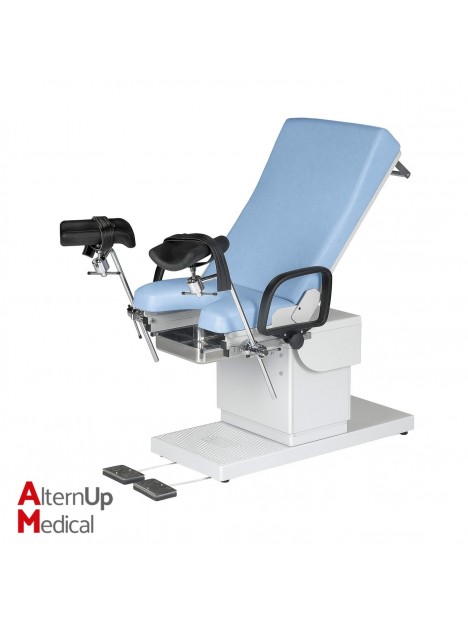

AGA-LIFT Gynaecology Examination Chair

AGA-LIFT Gynaecology Examination Chair

Features :

• - Seat height in the horizontal position 650 mm
• - Height adjustment mechanism - electric with foot switch
• - Height adjustment range 650 - 1160 mm (measured at the front edge of seat)
• - Pelvic tilting - Trendelenburg position 30°
• - Backrest adjustment range +54°
• - Width - 580 mm
• - Length - 1150 mm (head/backrest 800 mm, seat section 350 mm)
• - Maximum load - 200 kg
• - Product weight - 90 kg
• - Frame - lacquered, see Frame Colours
• - Upholstery thickness - 75 - 140 mm (backrest, with integrated wedge-shaped headrest) and 80 mm (seat section, for increased comfort)
• - 21 Upholstery Colours available

• - Impact-resistant, easy-to-clean base and column covers.
• - Wide base with levelling screws for enhanced stability on any type of floor.
• - Ergonomically designed backrest (upholstery thickness ranging from 75 mm at the lower end to 140 mm at the top) and seat (thickness 80 mm) for extra comfort.
• - Additionally, because of the wedge shape of the backrest, a separate neck roll is not necessary.
• - Large pelvic cut-out in the upholstered seat
• - Electric pelvic tilt adjustment, in combination with backrest adjustment enables Trendelenburg positioning up to 30°.

• - The pelvic tilting, seat height and backrest adjustments (on selected models, Article No. N-AGAERV) are controlled by maintenance-free, ultra-quiet electric motors and pneumatic foot switches.
•
• Drive specifications for each motor:
  • - Height adjustment - 230V, 50/60Hz, 3,7A, 850W, IP55, v=14 mm/s, 7000N.
  • - Pelvic tilt adjustment - 230V, 50/60Hz, 3,7A, 850W, IP55, v=14 mm/s, 7000N.
  • - Backrest adjustment - 230V, 50Hz, 1.5A, 350W, IP55, v=6 mm/s, 4000N.

Included in delivery :

• - Two standard rails pre-attached on the outer frame of the seat section
• - An earthed AC socket at the back of the column
• - A stainless steel pan with holder
• - A paper roll holder

Options :

• - Motorized adjustable backrest with foot switch (instead of gas pressure spring assisted manual adjustment) - Article No. N-AGAERV

Accessories :

See gynecological accessories

MADE IN GERMANY - 3 YEAR WARRANTY
