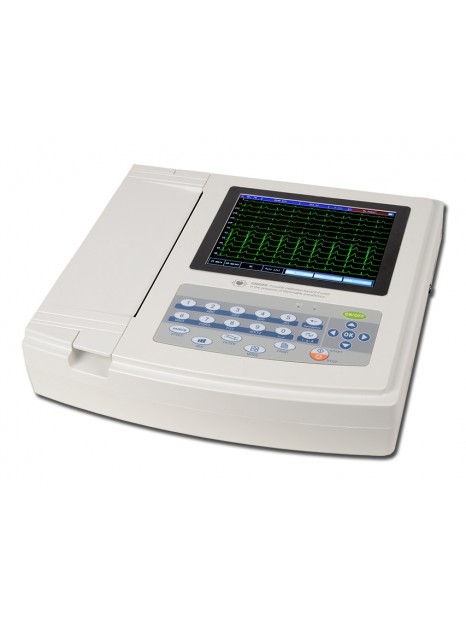

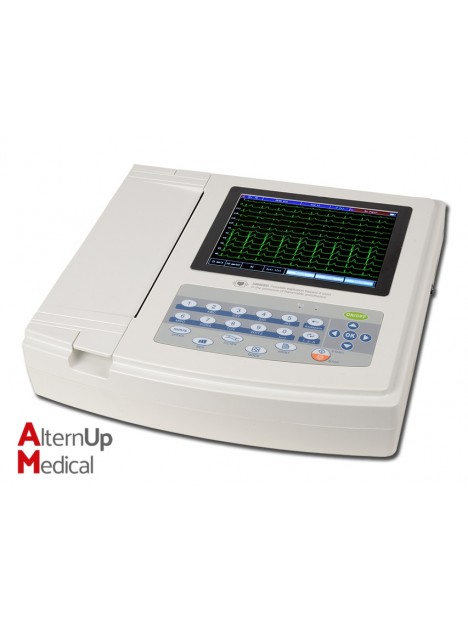

Contec Digital 12 Channel Colour ECG

12 CHANNEL ECG 1200G

- 8” TFT display, 800x600 dots high resolution colour LED backlight
- simultaneous 12 leads acquisition and display
- digital signal technique, AC filter, baseline filter, EMG filter
- auto-analysis and auto-interpretation
- Multi-mode display and printing, such as 12, 6+1 (rhythm), 6, rhythm 12, rhythm 10, rhythm 8, rhythm 6. Manual, Freeze etc.
- built-in lithium rechargeable battery

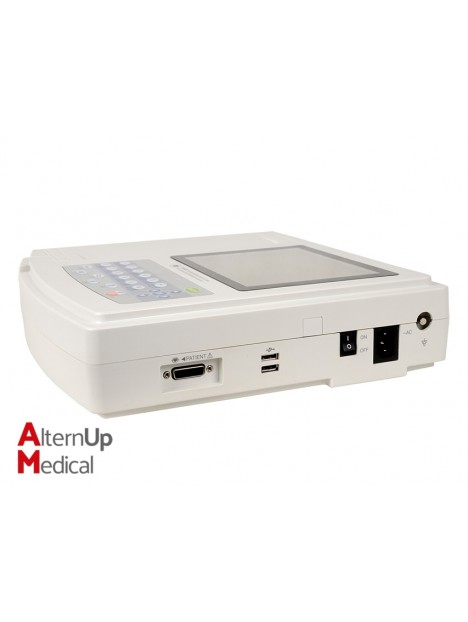

- USB and LAN Socket for uploading data to PC
- built-in flash memory. Stores more than 1,000 files
- Multi-language internal software: GB, FR, IT, PT, PL, SI, TR, RU, KZ, CN

Technical Specifications:

- Input way: Floating and defibrillation protection
- Lead: Standard 12 leads
- Patient leak current: < 10 µA
- Input impedance: = 50 Megaohm
- Frequency response: 0.05 - 150 Hz (-3 - + 0,4 dB)
- Time constant: = 3.2 s
- CMRR: >60 dB, > 100 dB (adding filter)
- EMG interference filter: 25/35 Hz (-3 dB)
- Thermal paper: 210 mm x 20 m high-speed
- Paper speed:
  - Auto and rhythm record: 25, 50 mm/s, ±5%
  - Manual record: 5, 6.25, 10, 12.5, 25, 50 mm/s, ±5%
- Sensitivity selections: 2.5, 5, 10, 20, 40 mm/mV, ±5%. (Standard sensitivity is 10 mm/mV ±0.2 mm/mV.)
- Auto record: Record setup according to auto record format and mode, automatically changing leads, measuring and analyzing.
- Rhythm record: Record setup according to rhythm record format and mode, automatically measuring and analyzing.
- Manual record: Record setup according to manual record format, manually changing leads.
- Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
- Product safety type: Class I CF defibrillation and pacing protection
- Size: 334 x 320 x 85 mm
- Power:
  - AC: 100-240 V, 50/60 Hz
  - DC: 14.8 V, 3700mAh rechargeable lithium battery

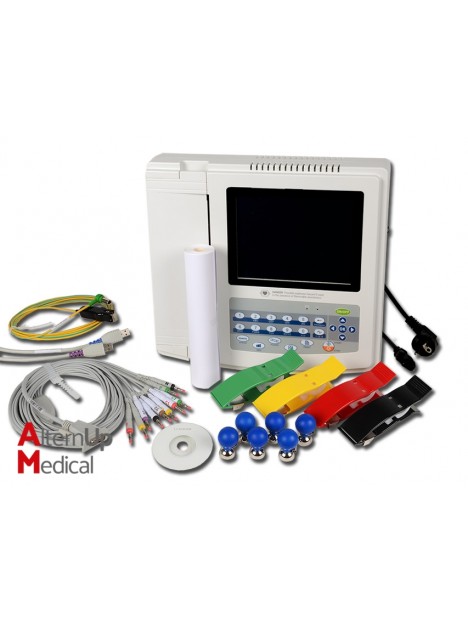

Standard Accessories:

- 1 ECG cable
- 1 ground wire
- 1 set limb electrode clamp
- 1 paper roll
- 1 set chest electrodes
- Power connection
- USB connection
- Software (same languages as internal software)
- Manual: GB, FR, IT, ES
